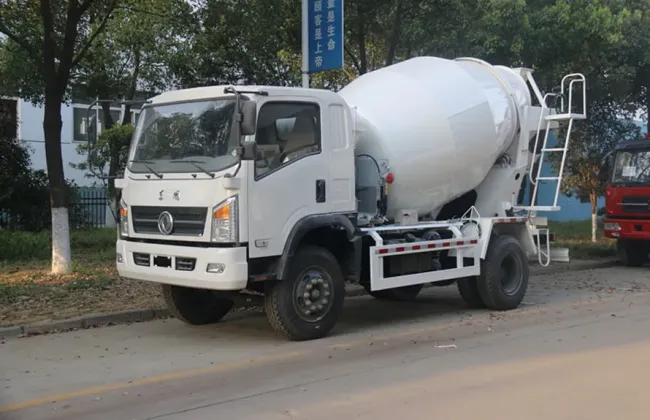

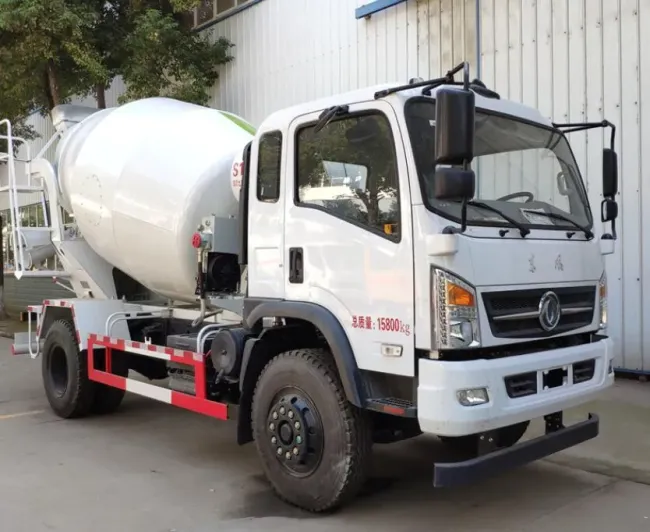

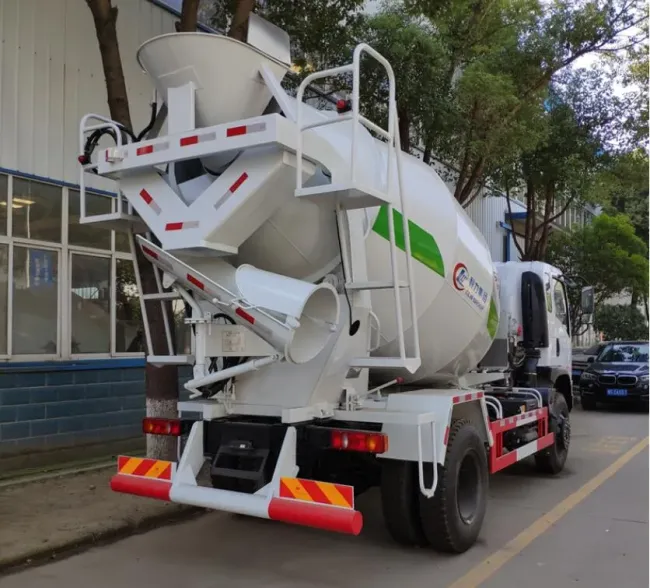

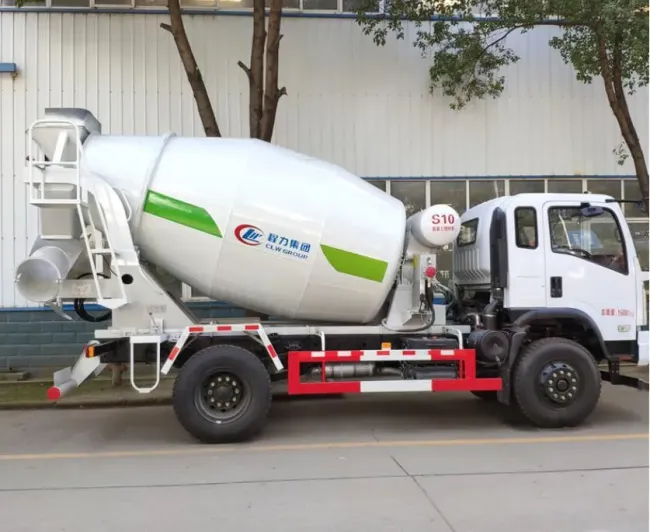

Dongfeng 4X2 6m3 Cement Concrete Mixer Truck 160hp Construction Machinery Trucks
Price:
15000-35000 per unit
MOQ:
1
Delivery Time:
Shipped in 30 Days After Payment
Brand:
CLW
Product Description
DONGFENG 4x2 6m3 Cement Concrete Mixer Truck Construction Equipment
Description:
- Chassis: Dongfeng, Sinotruk, FOTON/ Forland, Faw, Shacaman, etc.
- High Tension Steel Q345 Tank Material in 4mm.
- International Brand Motor, Pump, Reductor & Radiator
- 400Liter Water Tank with Pressure Water Filling
- Water Filling System to Keep the cement moisture.
- Tank and hand Washing Device.
| Condition | New condition/Left hand drive/4X2 | ||||||
|
Chassis |
Brand | DONGFENG | |||||
| Gross vehicle weight | 16000 kg | ||||||
| Curb weight(kg) | 7530 kg | ||||||
| Wheelbase(mm) | 3800 mm | ||||||
| Dimensions(mm) | 7520×2500×3660 mm | ||||||
| Overhang (front/rear) (mm) | 1400/2290 mm | ||||||
| Axle Load(kg) | 3600/ 10000kg | ||||||
| Max. driving speed(km/h) | 90 km/h | ||||||
| Brake | Air brake | ||||||
| Tire | Number | 6pcs with one spare tire | |||||
| Specifications | 9.00R20 | ||||||
| Fuel tank(L) | 200 L | ||||||
| Transmission | 6 Forwards and 1 Reverse with PTO | ||||||
| Cabin | It can accommodate three people, With Air conditioner | ||||||
|
Engine |
Brand | YUCHAI | |||||
| Horsepower(HP) | 160 HP | ||||||
| Emission standard | Euro 5 | ||||||
| Upper | |||||||
| Mixer drum | Max. Capacity | 6 CBM | |||||
| Material | Alloy steel Q345, 4mm thickness | ||||||
| Vane | Material | Alloy steel Q345, 4mm thickness | |||||
|
Specification |
Feeding Speed (m3/min) | ≥2.8 | |||||
| Discharging Speed (m3/min) | ≥1.2 | ||||||
| Discharging Residual rate(%) | ≤0.5 | ||||||
| Mixing Tank Rotating Speed (RPM) | 0-17 | ||||||
| Discharging range | 180° full range | ||||||
|
Driving system |
Option | Option 1 | Option 2 | Option 3 | |||
| Hydraulic Pump | US EATON 5423 | SAUER 75 | SUNNY 56 | ||||
| Hydraulic Motor | US EATON 5433 | SAUER | SUNNY 63 | ||||
| Reducer | Germany ZF4300 brand | Italy Bonfiglioli | China local brand | ||||
| Radiator | China local brand | ||||||
| Water supply system | Water Tank Capacity (liters) | 300 | |||||
| Water supply type | Pneumatic water supply | ||||||
| Control system | Control Way | Connecting Rod Controlling | |||||
|
Structure Features |
|
||||||
| Remarks | The color is optional | ||||||
