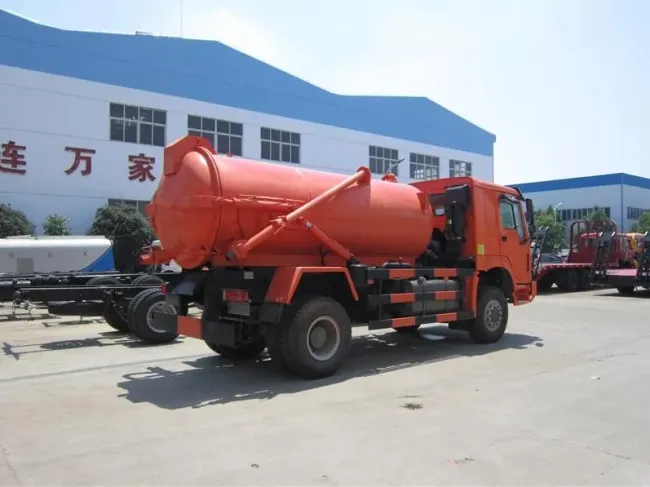

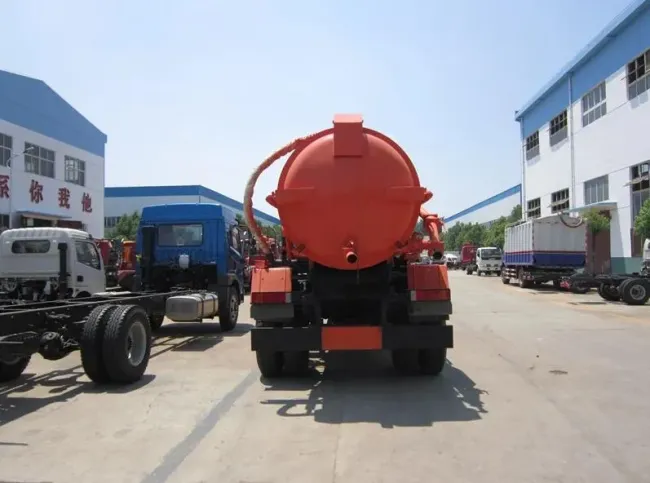

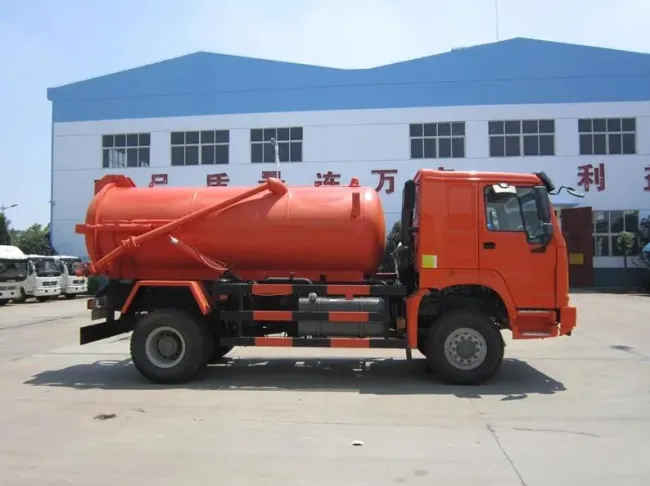

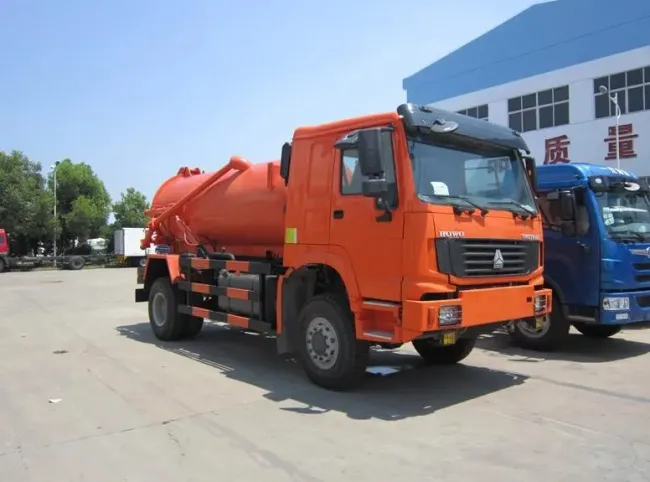

Sinotruk HOWO 4X4 4WD Off Road Sewer Truck , Vacuum Suction Tanker Truck
Sinotruk Howo 4X4 4WD off road Sewer Vacuum Suction Tanker Truck 8000liers Septic truck
Description:
1. Chassis of 4x4 sewer suction truck :Dongfeng,FAW,Sinotruk Howo,FOTON,SHACMAN,JMC,JAC,CAMC
2. Drive type of 4x4 sewer suction truck : 4x2, 4x4, 6x4, 8x4 etc.
3. Tanker body of 4x4 sewer suction truck :From 2cbm to 25 cbm capacity.

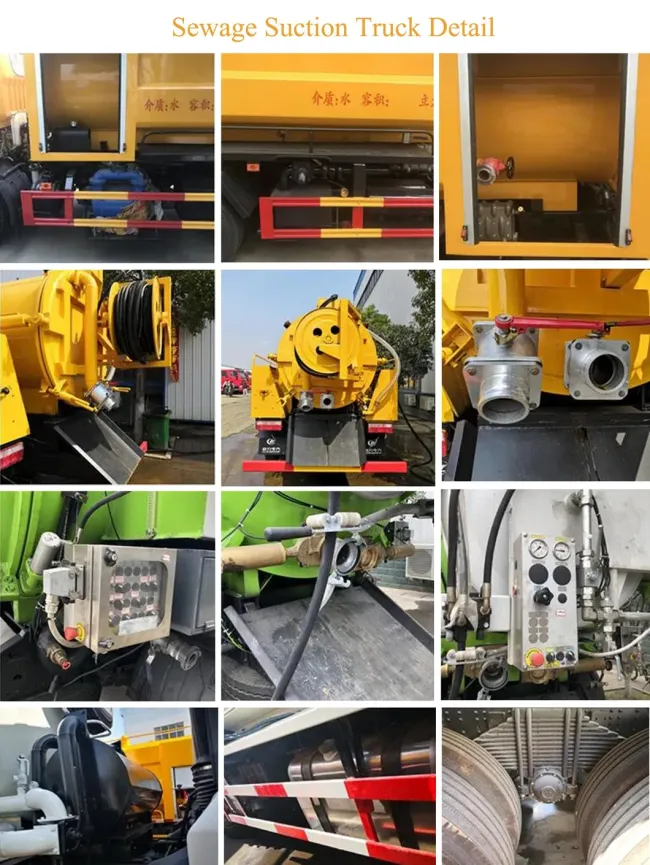

4. Accessory of 4x4 sewer suction truck : Equipped with PTO, transmission shaft, vacuum suction sewage pump, high pressure molding tank, moisture separator, gas-oil separation, multiple directional control valve, hanger rod, self-discharging valve, suck fecal gun and pipe network system

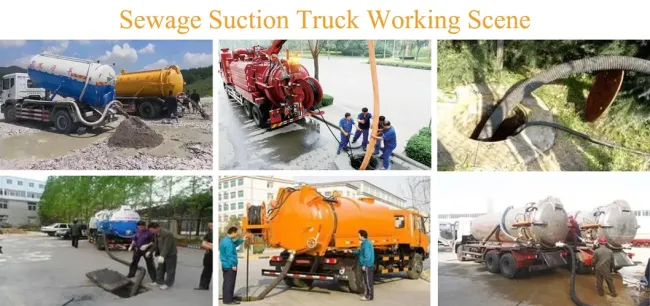

5. Application of 4x4 sewer suction truck : Vacuum Sewer Truck is used to collect,transport and discharge liquid such as dirty water,septic,crude oil and soild stuff such as small stones,bricks. It is suitable for cleaning sewer,cesspit,cesspool,gully etc.It is widely used in environment and sanitation field.
Specifications of 4x4 sewer suction truck
| Condition | New condition/Left hand drive/4x4 | ||
| Brand | Howo | |
| Curb weight(kg) | 16000kg | ||
| Wheelbase(mm) | 4600 mm | ||
| Dimensions(mm) | 8800*2500*3200 mm | ||
| Front/Rear Axle loading(kg) | 6000/10000 kg | ||
| Wheel track (front/rear) (mm) | 1503/1494 mm | ||
| Front/Rear overhang(mm) | 1185/1285mm | ||
| Approach/Departure angle(°) | 20/14 | ||
| Max. driving speed(km/h) | 95 km/h | ||
| Clutch | Reinforced diaphragm clutch | ||
| Brakes | Air brake | ||
| Steering Gear | Power steering, hydraulic steering with power assistance | ||
| Tire | Quantity | 6 pcs with one spare tire | |
| Specifications | 14.00R20,radial tire,super wearable | ||
| Transmission | Manual type, 6 Forwards and 1 reverse | ||
| Cab | It can accommodate three people. With Air Conditioner | ||
| Brand | Weichai engine | |
| Fuel type | Diesel | ||
| Horsepower(HP) | 266hp | ||
| Emission standard | Euro III | ||
| Sewage Suction & Cleaning System | |||
| Sewage tank | Capacity(cbm/liters) | 8cbm/8000 liters/2100 gallons/10cbm/10000liters | |
| Tank material | Q235 carbon steel | ||
| Vacuum pump | China famous brand/Italy brand,powerful vacuum pump,vacuum rate 96%,suction speed: 45L/s,suction lift:6m,low RPM,low nioise,high efficiency and high vacuum | ||
| Inlet and Outlet pipe | 6m/7m/9m/15m | ||
| Water-gas separator | ||
| The color is optional; | ||
