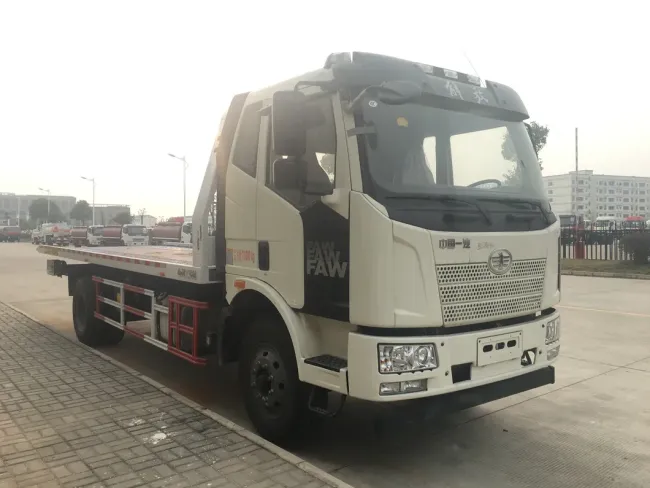

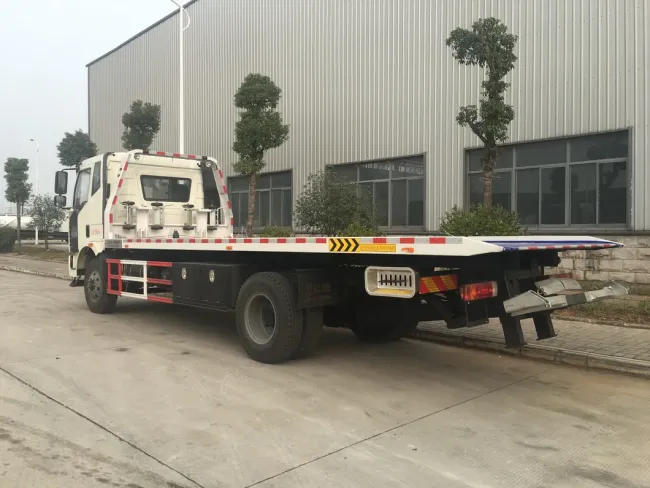

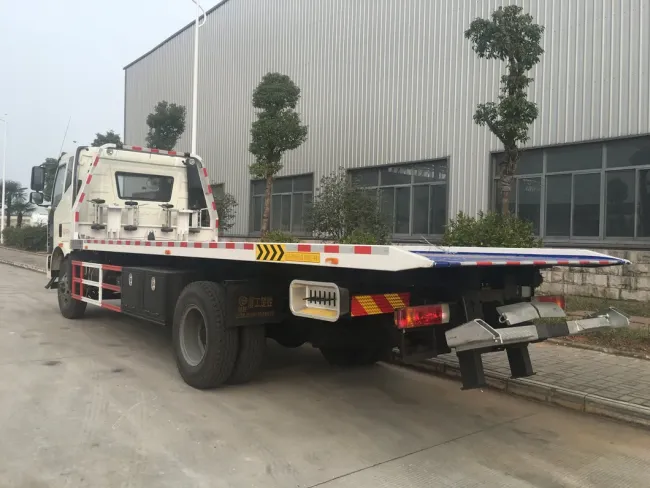

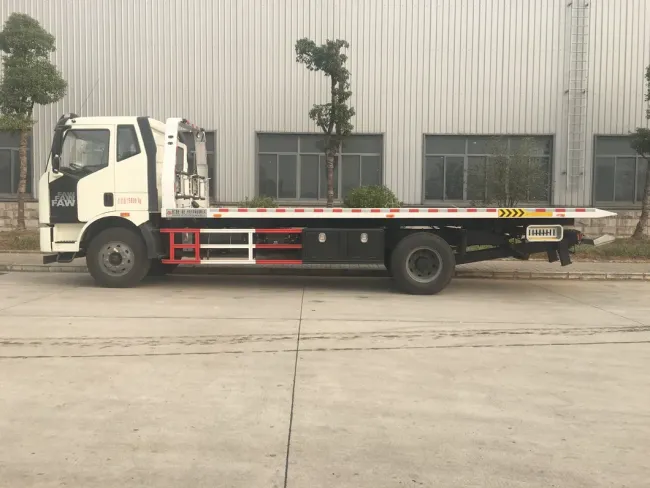

FAW 8ton 9ton 10ton Breakdown Recovery Truck Flatbed Rescue Wrecker Towing Truck
FAW 8ton 9ton 10ton Breakdown Recovery Flatbed Rescue Wrecker Towing Truck
Product Description:

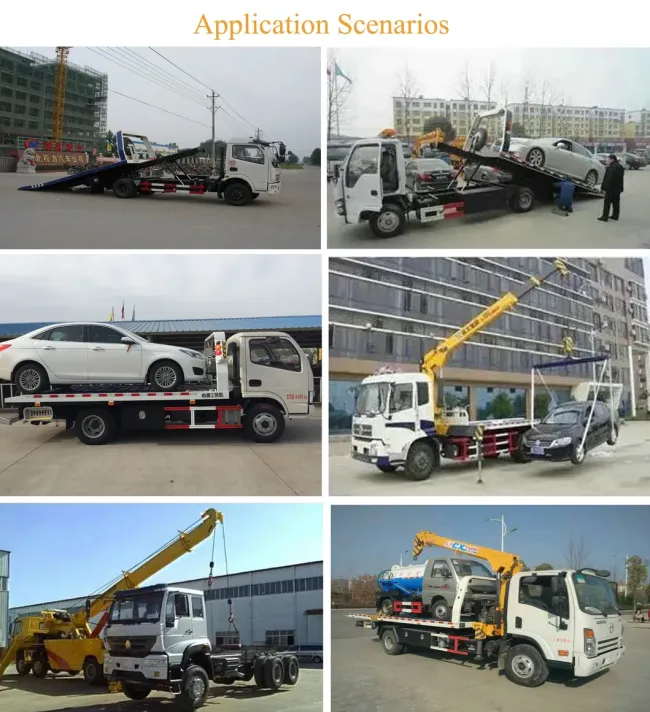

Purpose of flatbed tow truck: wrecker/recovery truck/towing truck is used for towing broken cars,vehicle on road.With increasing ownership of private cars,wreckers are now widly used by government organization or towing company.
Optional brand of flatbed tow truc:howo,Dongfeng, ,JAC,JMC,Foton,Shacman.

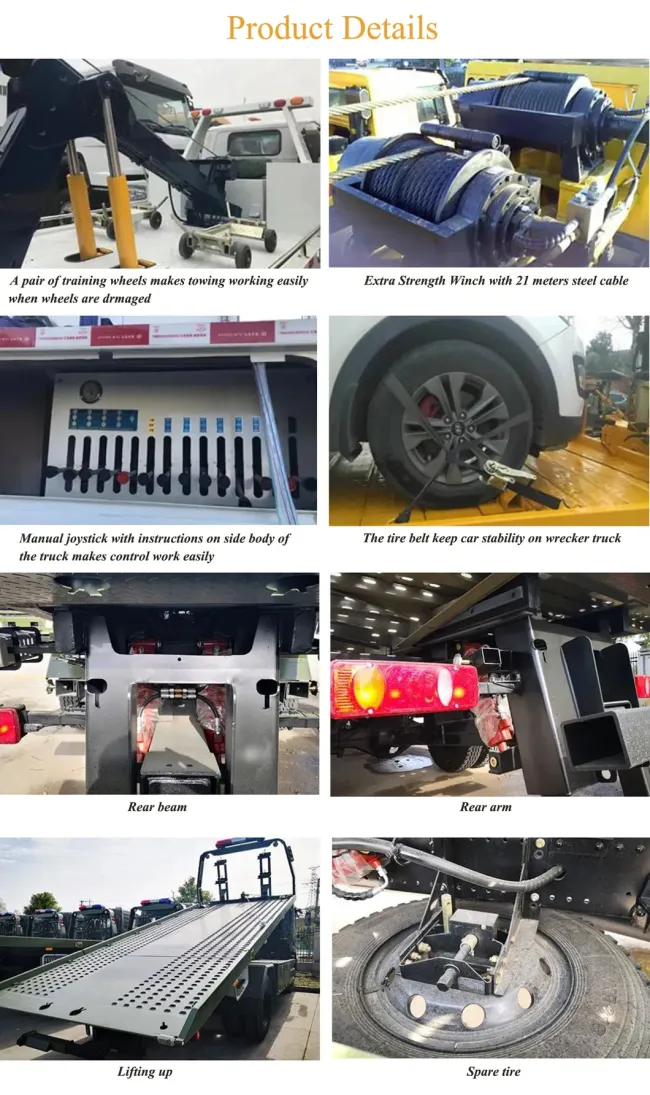

Spare parts of flatbed tow truc: Italy brand multi-way valve and balance valve; Gernamy Roxroth technology hydraulic cylinder and joint; imported sealing element; strengthed checked plate
Capacity range of flatbed tow truc:3ton, 4ton, 5ton, 6ton, 8ton, 12ton, 16ton, 20ton, 25ton, 31ton, 40ton, 50ton
The customers can choose to install the crane.
| General Technical Parameters | |||
| Overall Dimension | 5995x2300x2200(mm) | ||
| Gross Vehicle Weight | 4495kg | ||
| Curb Weight | 3700kg | ||
| Chassis Specification | |||
|
Chassis Parameters |
Chassis Brand | FAW | |
| Cabin | Single, Left Hand Driving | ||
|
Engine |
Model | 6 Cylinders | |
| Power | 180HP | ||
| Emission Standard | EURO II | ||
| Fuel Type | Diesel | ||
| Gearbox | 6 Forward & 1 Reverse Gear | ||
| Front and Rear Axle Load | 4.5T/9T | ||
| Wheel Base | 4200(mm) | ||
| Overhang( Front/Rear) | 1015/2450(mm) | ||
| Angle(Approach/departure) | 24/16(°) | ||
| Brake System | oil brake | ||
| Steering Gear | Power Assistant | ||
| Tire | 7.00R16, 6 Pieces with 1 Spare Tire | ||
| Maximum Speed | 90 (km/h) | ||
| Superstructure | |||
|
Flatbed |
Dimensions | 4200x2320 (mm) | |
| Max. Loading Weight | 4000(kg) | ||
| Operating Stroke | 2700 (mm) | ||
| Min. Angle of Slope | 8(°) | ||
| Platform Height from the Ground | 1070(mm) | ||
|
Winch |
Quantity | 1pc | |
| Winch Rating Pulling Capacity | 4000 (kg) | ||
| Length of Steel Cable | 25 (m) | ||
|
Hoisting Organ |
Rating Under-Pulling Capacity | 6000 (kg) | |
| Rating Under-Hoisting Capacity | 2000 (kg) | ||
| Fully Extended Max Under-Hoisting Capacity | 1600 (kg) | ||
| Max Under-Hoist Useful Length | 1640 (mm) | ||
|
Remarks |
|
||
