New Jmc Brand 4X2 4 Ton Rollback Tow Truck Half Landing / Full Landing Flatbed Tow Truck
Price:
15000-35000 per unit
MOQ:
1
Delivery Time:
30 Days
Brand:
CLW
Product Description

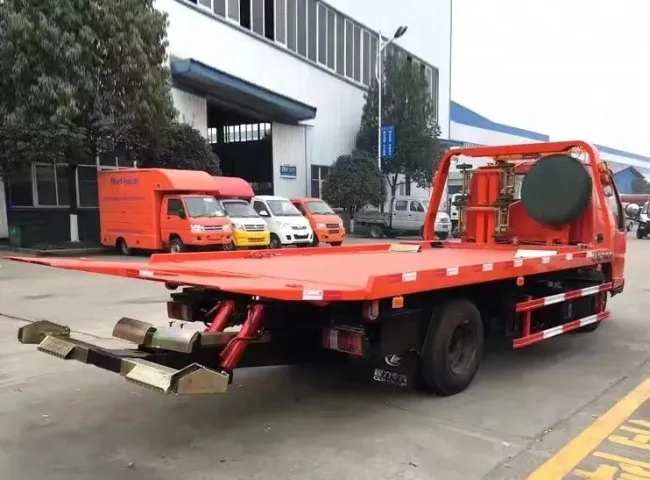

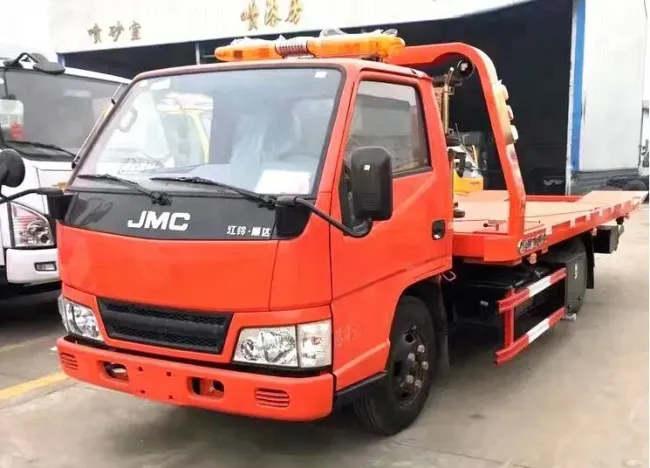

New Jmc Brand 4X2 4 Ton Rollback Tow Wrecker Trucks
Product Description:
- Purpose of flatbed tow truck: wrecker/recovery truck/towing truck is used for towing broken cars,vehicle on road.With increasing ownership of private cars,wreckers are now widly used by government organization or towing company.
- Optional brand of flatbed tow truc:howo,Dongfeng,AC,JMC,Foton,Shacman.
- Spare parts of flatbed tow truc: Italy brand multi-way valve and balance valve; Gernamy Roxroth technology hydraulic cylinder and joint; imported sealing element; strengthed checked plate
- Capacity range of flatbed tow truc:3ton, 4ton, 5ton, 6ton, 8ton, 12ton, 16ton, 20ton, 25ton, 31ton, 40ton, 50ton
- The customers can choose to install the crane.
| JMC brand 4x2 hydraulic winch 4 ton towing car flat bed wrecker truck with wheel lift ( half landing or full landing) | ||
| Gross Vehicle Weight (kg) | 8210 |
| Curb Weight (kg) | 4870 | |
| Rated Payload(kg) | 3340 | |
| Overall Dimension(mm) | 7440x2400x2400 | |
| Axle No. | 2 | |
| Cab Allowed Persons | 3 | |
| Wheelbase (mm) | 3815 | |
| F/R Suspension(mm) | 1155/2470 | |
| Max Speed(km/h) | 100 | |
| Appr/Dep Angle(º) | 12/20 | |
| Air condition | YES | |
| Chassis Model | JX1083TK25 |
| Drive Type | 4x2 | |
| Axle Load(kg) | 3310/4965 | |
| Tyre Spec. | 7.50R16 | |
| Tyre No. | 6+ 1 spare | |
| Leaf Spring No. | 8/7+7 | |
| Front/Rear Track (mm) | 1680/1640 | |
| Service brake type | Compressed air brake | |
| Spring energy, compressed air operating | |
| on rear wheels | ||
| | 5mm stamping steel plate or |
| 3mm punching steel plate can be choosed | ||
| Platform size (L X W mm) | 5600 x 2300 | |
| Platform max lifting | 3500 | |
| capacity (kg) | ||
| Platform landing gradient | <= 11 | |
| Angle(º) | ||
| Hydraulic capstan winch- | 21 meters , or 30 meters can be choosed | |
| steel string length (m) | ||
| Hydraulic capstain winch- | can afford 4 tons | |
| steel string tension | ||
| Rear towing Max afford (kg) | 3000kg | |
| Auxiliary wheel | 1 set | |
| Engine Model | JX4D30A5H |
| Engine Brand | JMC automobile Co., Ltd | |
| Fuel type | Diesel | |
| Displacement (ml) / Power | 2892 / 112kw (152HP) | |
Engine Type | Turbocharged inter-cooled, 4 cylinder | |
| in-line, water colling. | ||
| Emission Standard | Euro V or III, IV can be selected | |
| Rated speed | 2800rpm | |
| Max Torque | 382N.m | |
| Max torque(N.m/rpm) | 1800-2800rpm | |
| Driving type | Manual | |
| No of transmission gears | 6 Forward, 1 Reverse | |
| Remark | 1. With power assisted steering, auxiliary wheels, emergency rotation | |
| lamp, spare tyre, hydrlic telescopic jack, wheel brace etc tools. | ||
Products Catalog:
- LPG Tank Truck Trailer/ Fuel Tanker Truck/ LPG station
- Water truck / Water Tank Truck / Water Sprinkler Truck/Water Tanker
- Truck with crane / Truck mounted crane
- Dump Truck / Tipper Truck/Side Tipper/End Tipper
- Fire Fighting Truck / Fire Truck / Fire Vehicle
- Concrete Mixer Truck
- Van truck /Refrigerated truck
- Fecal suction truck / Sewage suction truck,
- Cement Powder Tank truck/ Bulk cement truck
- High-altitude operation truck,
- Self-loading garbage truck, garbage compactor truck, sealed garbage truck
- Tractor
- High Pressure Cleaning Truck
- Sweeper Truck
- Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, etc. )
