Dongfeng Fire Fighting Truck 5ton Mini Fire Rescue Fire Truck 6 Wheelers
Price:
15000-35000 per unit
MOQ:
1
Delivery Time:
Within 60 Days
Brand:
CLW
Product Description

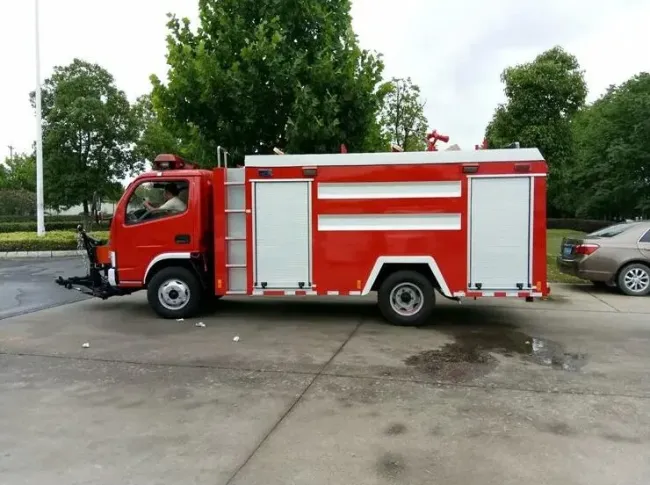

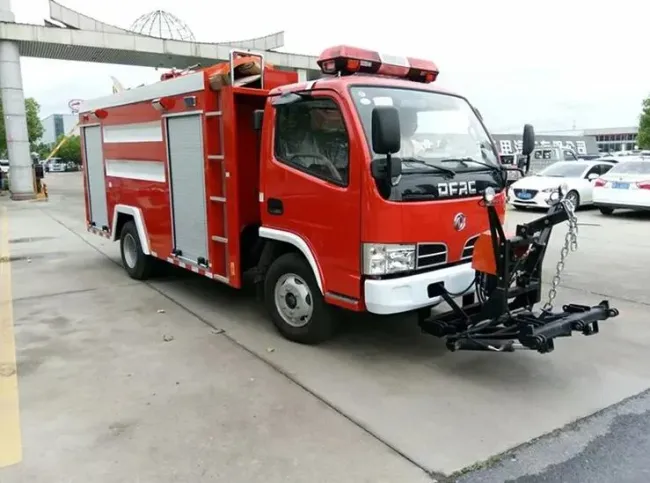

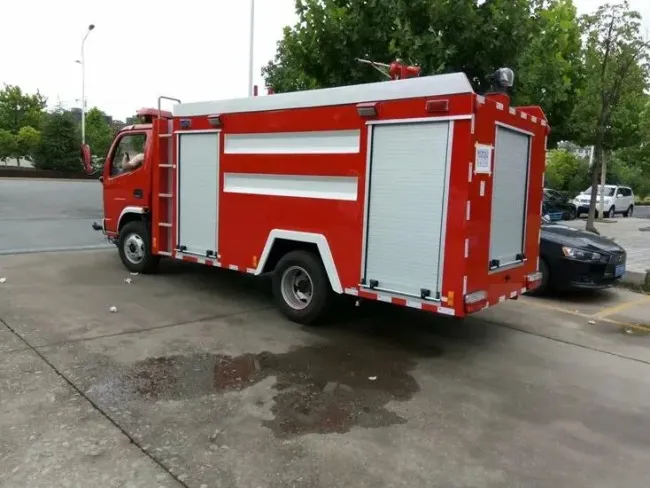

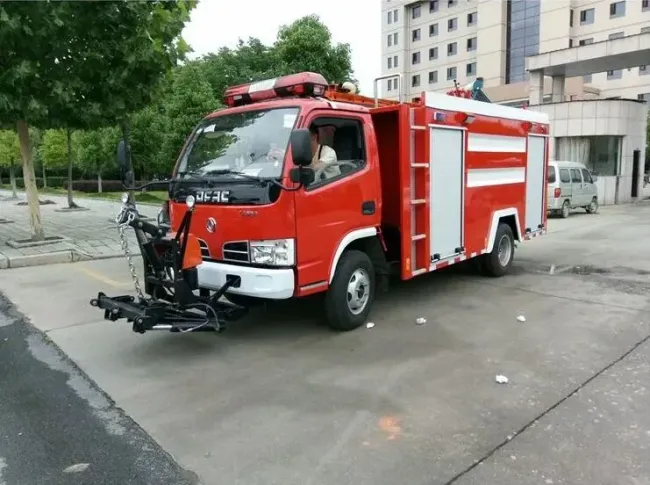

Chinese Mini Fire Rescue Fire Truck Dongfeng 6 Wheelers 2500L Capacity Small Fire Fighting Truck
| CHASSIS PARAMETER | ||||
| Overall Dimension: (mm) | 6260x1900x2750 | |||
| Fuel Type: | Diesel, Euro III | |||
| Drive Type: | 4*2, Right Hand Driving | |||
| Engine | CY4F90-30 | |||
| Power: | 90HP | |||
| Spring Leaf Quantity: | 8/9+5 | |||
| Tyre Size: | 7.00-16 | |||
| Tyre Quantity: | 6, (front 2, rear 4) | |||
| Total Mass:(kg) | 5495 | |||
| Curb Mass:(kg) | 3870 | |||
| F/R Axle Load(kg): | 2470/3025 | |||
| Front/Rear Suspension: (mm) | 1032/1928 | |||
| Approach/Departure(°): | 19/12 | |||
| Max Speed(km/h): | 90 | |||
| Wheel Base(mm): | 3300 | |||
| Passenger in cab | 2+3 | |||
| Watering system Performance | ||||
| Water tanker: 2500L Normal pressure pump: CB10/20 Flow Pressure: 20L/S/1.0Mpa PL20 Fire Pump Flow: 20L/S Pressure: 1.0MPa Fire distance (water): ≥48m Fire distance (foam): ≥45m Accessories as attachment required |
||||

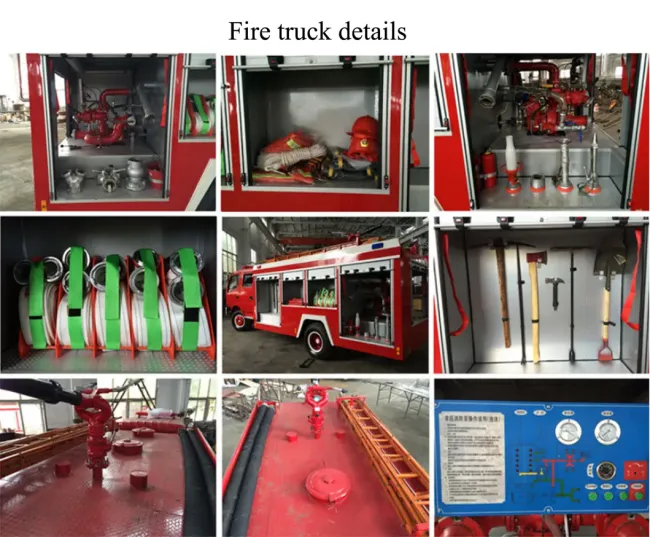

| Equipment List | ||||
| Fire truck manual | 1 | |||
| Chassis use manual | 1 | |||
| Fire pump use munual | 1 | |||
| Suction pipe | KD150x4m | 1 | ||
| Water filter | FLF100 | 1 | ||
| Water knockout drum | FII80/65x2-1.6 | 1 | ||
| Water collectormanifold | JII100/65x2-1.0 | 1 | ||
| Hose | 13-65-20 | 8 | ||
| Hose adapter | KJ65/80 | 2 | ||
| Hose gaiter | DT-SB | 4 | ||
| Hose strap | 4 | |||
| Overgroud hydrant wrench | QT-SD1,400 | 1 | ||
| Underground hydrant wrench | 860 | 1 | ||
| Suction wrench | FS100 | 2 | ||
| Dc switch water gun | QZG3.5/7.5; 65 | 1 | ||
| Dc switch water gun | QZK3.5/7.5; 65 | 1 | ||
| Fire extinguisher | 3 kg/ABC | 1 | ||
| Hatchet for firefighters | GF-285 , 390 | 1 | ||
| Rubber hammer | 1 | |||
| Rechargeable portable lighting | 1 | |||
