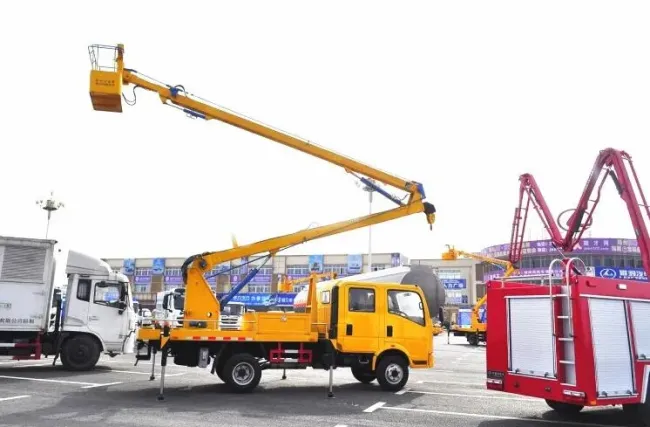

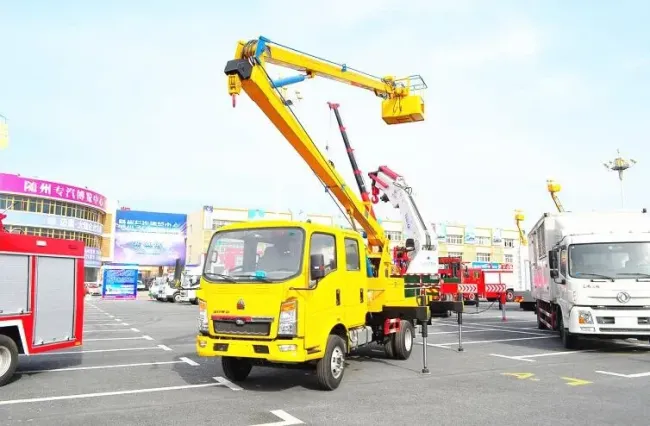

HOWO 16m-18m Aerial Platform Truck Truck Mounted Insulated Aerial Lift Truck For Philippines
Price:
15000-35000 per unit
MOQ:
1
Delivery Time:
Negotiable
Brand:
CLW
Product Description
HOWO Euro 4 16m-18m Truck Mounted Insulated Aerial Lift Truck for Philippines Market
Product Description
- Automatic Bucket Balance System, Bucket will be Stayed in Balance Level in All Working Time.
- The Stretching Angle Up to 80°, which will be Easier to Handle in All Time.
- Full Computer Control System with Danger Waring System.
- LCD Screen in Both the Bucket and Truck to Display the Working Status.
- Rectangular Shape Arms to Increase the Arm Strength.
- V Shape Leg, H Shape Leg can Adapted to Different Road Condition Increasing the Stability.
Product Parameters
|
Parameter |
Overall dimension (Length*width*high) | (mm) | 7300×1980×3100 |
| Total Weight | (kg) | 5925 | |
| Curb Weight | (kg) | 5600 | |
| Wheel base | (mm) | 3360 | |
| Front/rear loading capacity | (mm) | 2700/7200 | |
| Approach/rear angle | 27/11 | ||
| Max speed | (km/h) | 90 | |
| Fuel type | diesel | ||
|
Engine |
Engine type | Yucai | |
| Power | (HP) | 117 | |
| Displacement standard | EURO 3 | ||
|
Chassis |
Chassis type | HOWO | |
| Drive system | 4x2 | ||
| Tire type | 8.25R16 | ||
| Number of tire | 6 | ||
| Front/rear axle loading(kg) | 1015/2025 | ||
| passengers | 2+3 | ||
| Cabin | Double row cab | ||
|
Special parameter |
Working platform rating loading | (kg) | 200 |
| Max operation height | (m) | 12 | |
| Max working radius | (m) | 5.2 | |
| Rotation speed | (r/min) | 0.15~0.20m/s | |
| Max hoisting height | (m) | 8 | |
| Rated hoisting capacity | (kg) | 1000-2000 | |
| Max rotation angle | (°) | 360 |

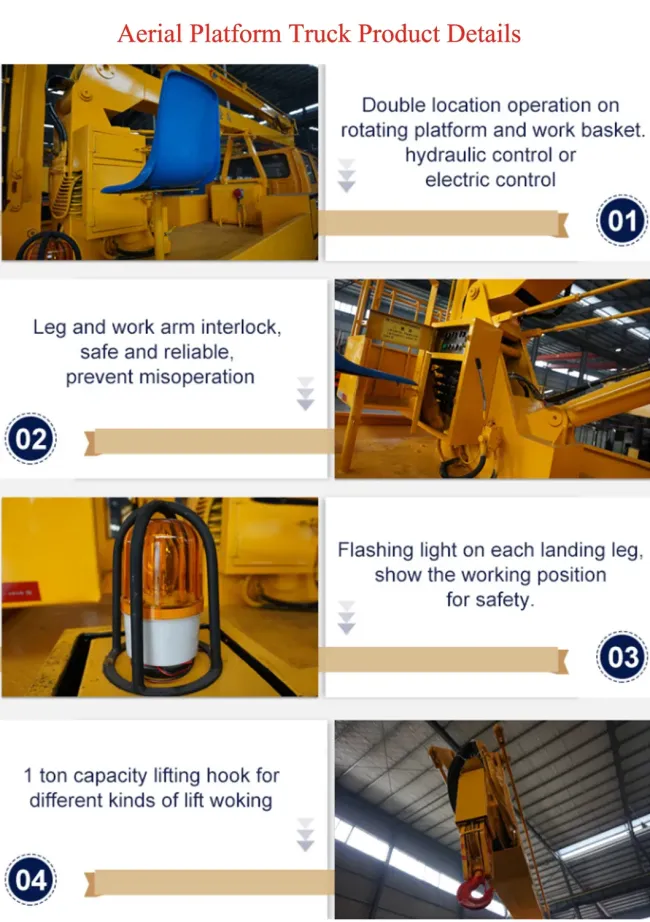

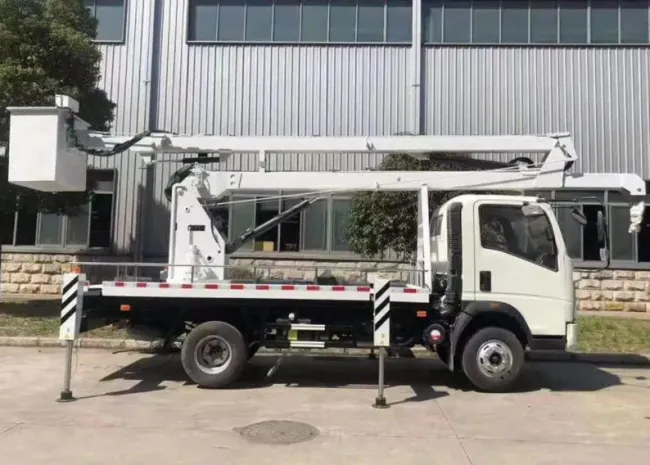

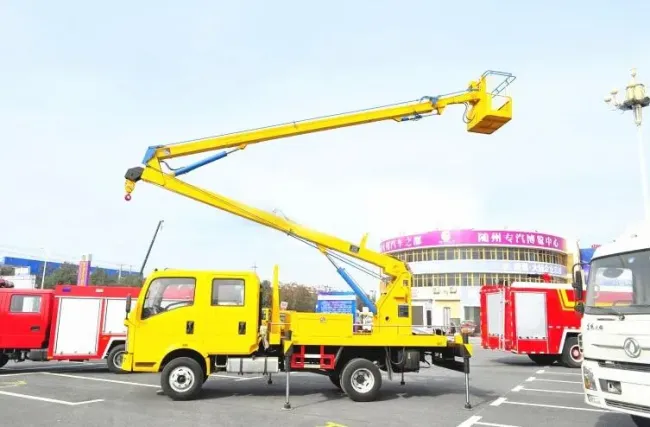

Detailed Photos
