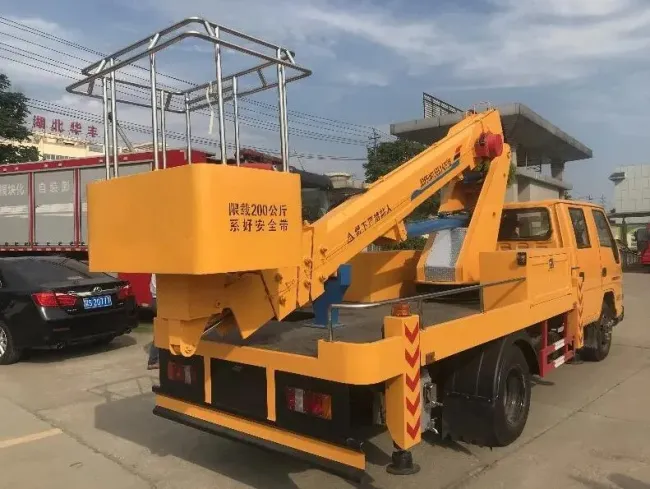

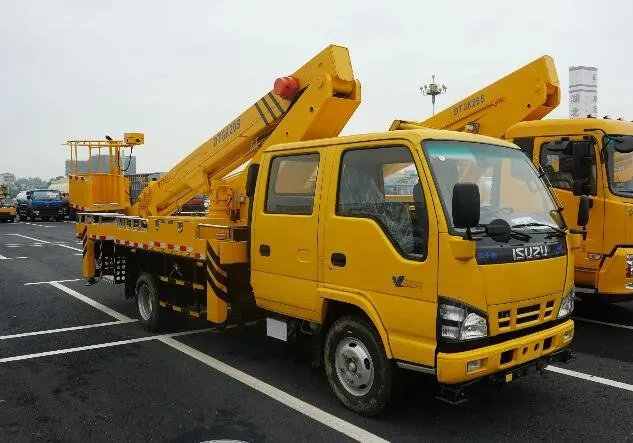

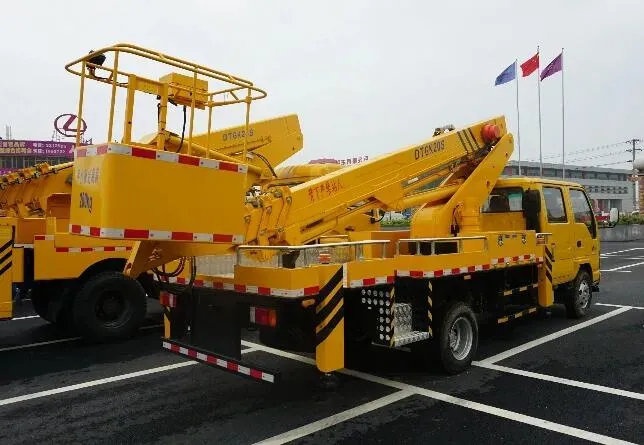

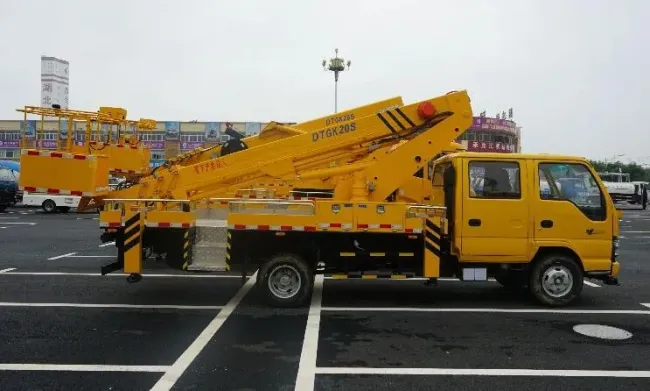

Isuzu 18-20m Aerial Platform Truck Mounted Telescopic Boom Man Lift Truck
Price:
15000-35000 per unit
MOQ:
1
Delivery Time:
Negotiable
Brand:
CLW
Product Description
lsuzu Double Row 18-20m Telescopic Boom Man Lift Truck Aerial Work
Product Description

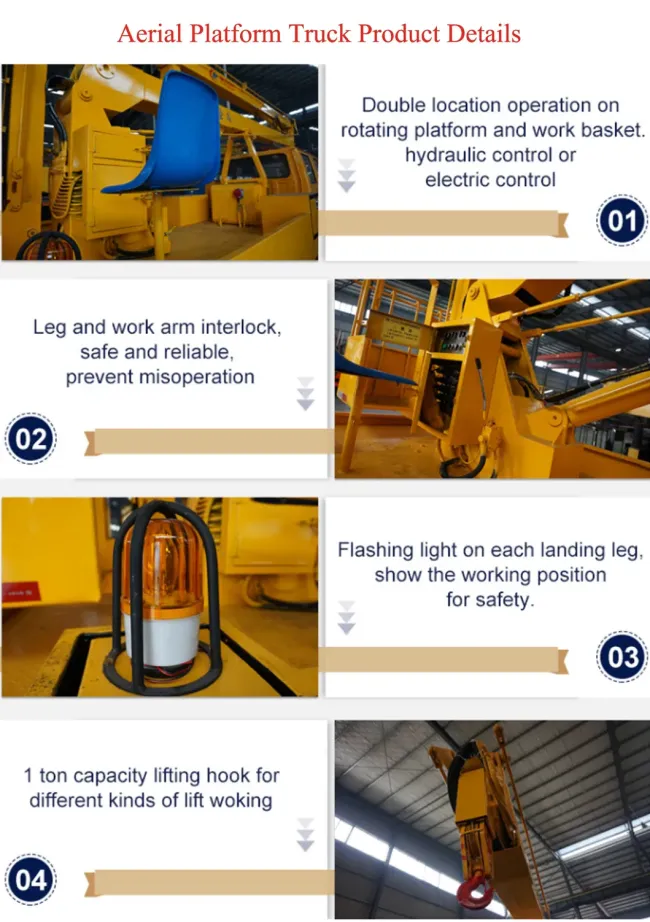

- Automatic Bucket Balance System, Bucket will be Stayed in Balance Level in All Working Time.
- The Stretching Angle Up to 80°, which will be Easier to Handle in All Time.
- Full Computer Control System with Danger Waring System.
- LCD Screen in Both the Bucket and Truck to Display the Working Status.
- Rectangular Shape Arms to Increase the Arm Strength.
- V Shape Leg, H Shape Leg can Adapted to Different Road Condition Increasing the Stability.
Product Parameters
| Telescopic Platform Truck lSUZU (18-20M) | ||
|
General |
Vehicle Brand | CLW |
| Chassis Brand | lSUZU | |
| Overall Dimension | 8550x2100x3350mm | |
| GVW/Kerb Weight | 6,810kg/6,.485kg | |
|
Cab |
Cab Capacity | 2+3 persons allowed |
| AirConditioner | With airconditioner | |
|
Engine |
Fuel Type | Diesel |
| Engine Brand | lSUZU engine,4KH1-TCG40 | |
| Power | 120Ps(88KW) | |
| Displacement | 2999ml | |
| Emission Standard | EuroIV | |
|
Chassis |
Drive Type | 4X2,left hand drive |
| Transmission | lSUZU MSB transmission, 5-forward &1reverse | |
| Wheelbase/No.of axle | 3815mm/2 | |
| Tyre Specification | 7.00-16 or 7.00R16 | |
| Tyre Number | 6 tyres and 1 spare tyre | |
| Max Speed | 95km/h | |
| Paint | Metallicpaint | |
|
Superstructure |
Cage Rated Capacity | 200kg |
| Working Height | 18m-20m | |
| Beam | The beam is articulated & telescopic extension type, hydraulic actuated and controlled |
|
| Slewing | Slewing range is continuous 235° (minimum) with a slewing speed of maximum 15° per second. |
|
| Control | Control both on the ground and remote control in cage | |
| Safety Device | Relief valve,balance valve,double-wa yhydraulic lock, hand operated emergency hydraulic pump |
|
| Leveling System | Hydraulic stabiizer to level the vehicle on uneven ground |
|
| Optional | Insulated cage; Wireless remote control system | |
