DONGFENG/Isuzu 6tons Telescopic Boom Truck Mounted Crane Construction Crane Truck
Price:
15000-35000 per unit
MOQ:
1
Delivery Time:
Negotiable
Brand:
CLW
Product Description
HOWO/DONGFENG/ISUZU Mobile Crane 6tons Telescopic Boom Truck Mounted Crane Construction Crane Truck With Drill Drill Pipe
Product Description
- Crane Brand: Chinese Famous Brand
- Heavy Duty Cargo box.
- H Shape Hydraulic front & Rear Leg for safety.
- Folded Arm & Telescopic Straight Arm Crane for option.
- Crane capacity: 2ton,2.5ton,3.2ton,4ton,5ton,6.3ton,8ton,10ton,12ton, 14ton,16ton,20ton,25ton
Product Parameters
| Truck with Crane | |
| Overview | |
| Name | Truck with Crane |
| Dimension(LxWxH) | 6550X2490X2900(mm) |
| Total Mass | 22200 Kg |
| Rated Payload | 15000 Kg |
| Kerb Weight | 7200 Kg |
| Passenger | 3 |
| Appr/Dep Angle | 33/22 |
| The Parameters of Chassis | |
| Manufacture/Model | Dongfeng/EQ1160GKJ1 |
| Driving Type | 4*2 left hand drive |
| Wheel Base | 4500 mm |
| Gearbox | Eight speed forward and one reverse, manual |
| Front/Rear Track | 1900/1800(mm) |
| Tyre | 10.00R20 |
| The Number of Tyre | 6+1(spare tyre) |
| Front/Rear Suspension | 1250/2300(mm) |
| Leaf Spring Number | 8/11+8 |
| The Paremeters of Engine | |
| Manufacturer/Model | Cummin-s/B190 40 |
| Rated Power | 190hp/140kw |
| Fuel Type | Diesel |
| Displacement/Capacity | 5900ml |
| Emission Standard | Euro 3 |
| Cylinder | Straight/6/intercooling |
| Max. Torque | 560N.m |
| Velocity | 2500rpm |

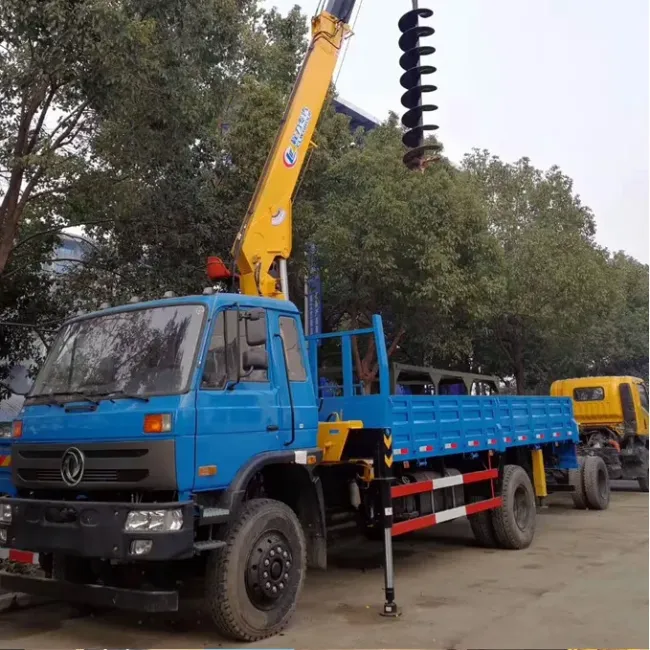

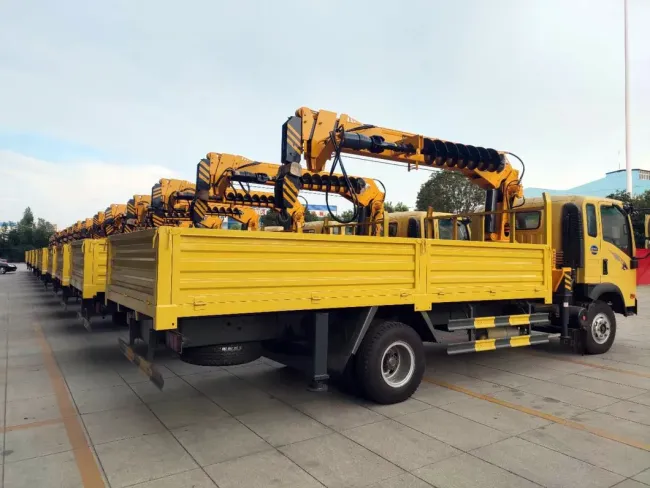

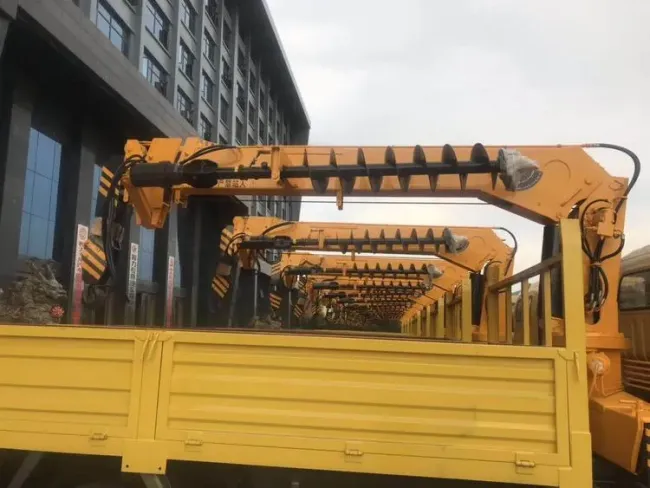

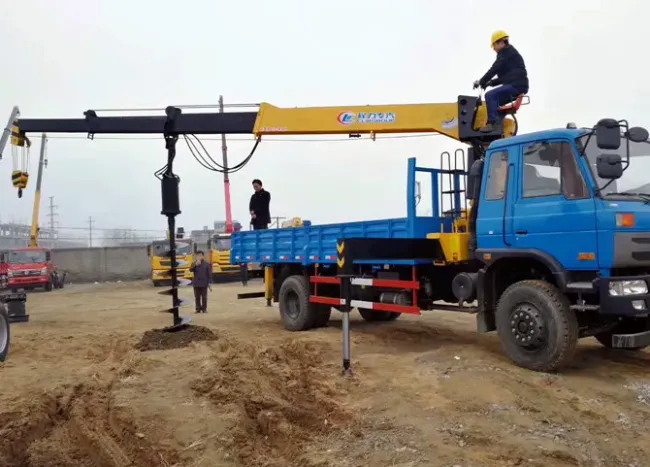

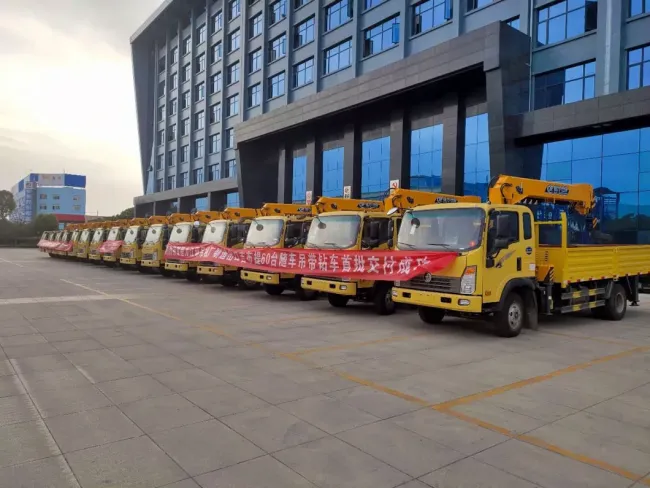

Detailed Photos
Products Catalog:
- LPG Tank Truck Trailer/ Fuel Tanker Truck/ LPG station
- Water truck / Water Tank Truck / Water Sprinkler Truck/Water Tanker
- Truck with crane / Truck mounted crane
- Dump Truck / Tipper Truck/Side Tipper/End Tipper
- Fire Fighting Truck / Fire Truck / Fire Vehicle
- Concrete Mixer Truck
- Van truck /Refrigerated truck
- Fecal suction truck / Sewage suction truck,
- Cement Powder Tank truck/ Bulk cement truck
- High-altitude operation truck,
- Self-loading garbage truck, garbage compactor truck, sealed garbage truck
- Tractor
- High Pressure Cleaning Truck
- Sweeper Truck
- Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, etc. )
