Shacman Concrete Mixer Truck 6x4 Construction Equipment Truck 10CBM Loading Capacity
|
Vehicle Parameters
|
|||
|
Vehicle Model
|
CLW5255GJBSX
|
Vehicle Brand
|
CLW |
|
Overall dimensions
|
9750X2600X4000mm
|
Curb weight
|
11500kg
|
|
Loading capacity
|
10m3
|
Color
|
optional
|
|
Chassis Parameters
|
|||
|
Chassis model
|
SX5255GJBJR404
|
Chassis brand
|
SHACMAN
|
|
Overall dimensions
|
9000x2495x3250mm
|
Wheel base
|
3975+1400mm
|
|
Front/rear wheel track
|
2015,1850/1850mm
|
Front/rear suspension
|
1430/1000mm
|
|
Approach/departure angle
|
19/24°
|
Maximum speed
|
82km/h
|
|
Cab
|
Configuration
|
Delong F3000 flat top cab, hydraulic seat, four-point hydraulic suspension cab, air conditioning, electric window machine, manual flip, F3000 Cooling System, Domestic Left-hand Steering Machine, Iron Storage Tank, Foyer Air Filter, Iron Bumper, 165Ah Battery, ETA Circuit Breaker, SHACMAN logo, all English identification.
|
|
|
Color
|
White, other color is optional
|
||
|
Engine
|
Model
|
WP10.340E22
|
|
|
Emission
|
Euro 2
|
||
|
Type
|
6 cylinders, in-line, diesel engine.
|
||
|
Rated power
|
340hp,rated power speed 2200rpm
|
||
|
Displacement
|
9726CC
|
||
|
Max.torque
|
1250N.m
|
||
|
Bore x stroke
|
126X155mm
|
||
|
Manufacturer
|
Weichai Power CO.,LTD
|
||
|
Tire
|
12.00R20 steel wire tire
10+1 nos |
Transmission
|
10 speed forward 2 reverse
|
|
Steering device
|
Power assisted steering
|
Steering wheel
|
Left hand drive
|
|

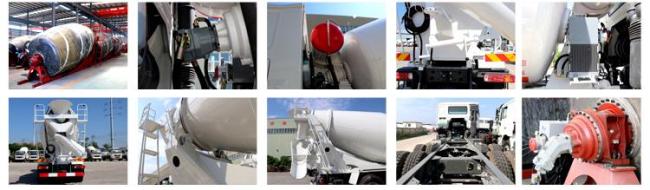

Concrete Mixer Structure Parameters
|
|||
|
Mixing capacity(m³)
|
10
|
Color and Logo
|
Optional
|
|
Tank material
|
4mm alloy steel
|
Tank front head
|
8mm alloy steel
|
|
Hydraulic pump
|
ITALY ARK
|
Hydraulic motor
|
ITALY ARK
|
|
Radiator
|
KAIPENG
|
Color and Logo
|
Optional
|
|
Standard Configuration
|
chassis,sub frame,mixer tank, ITALY TOPUNION reducer, ITALY ARK hydraulic pump and hydraulic motor, radiator,water tank,cleaning hose,feed port, discharge port,climbing ladder,air pressure water supply device.
|
||

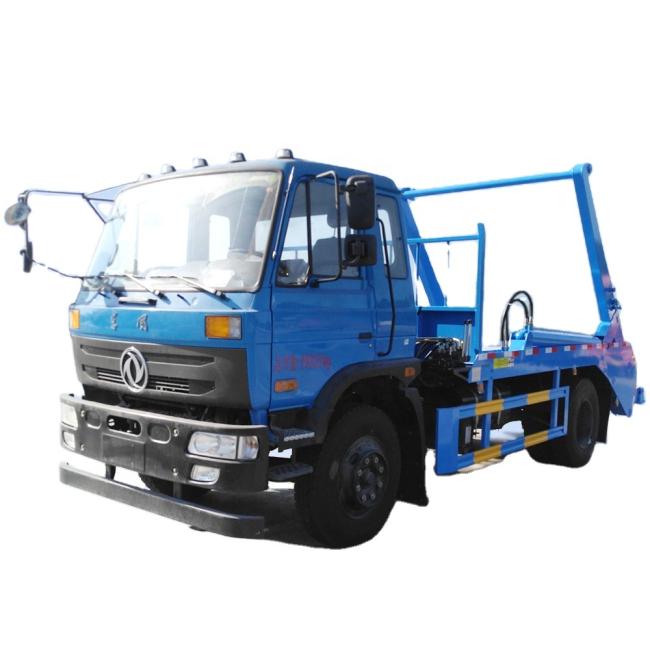

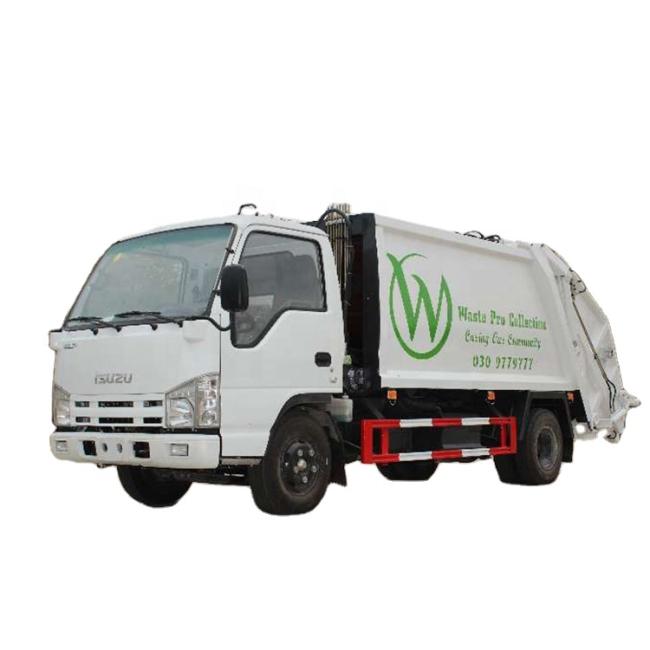

Compressor Garbage Truck

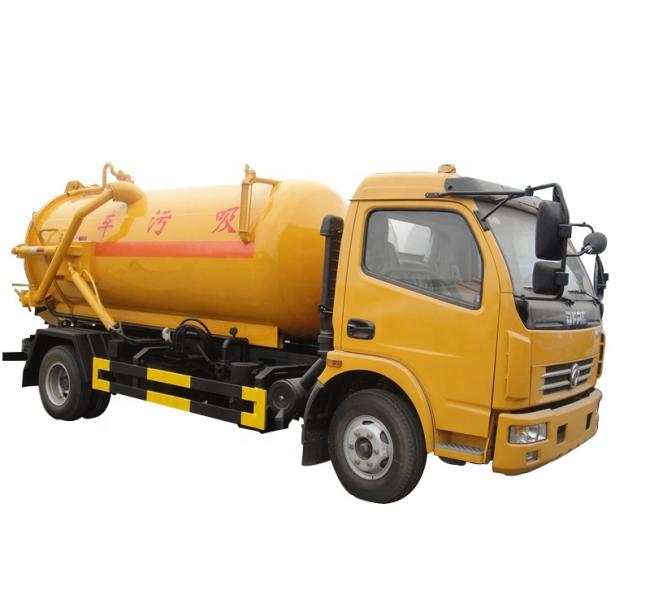

Sewage Suction Truck

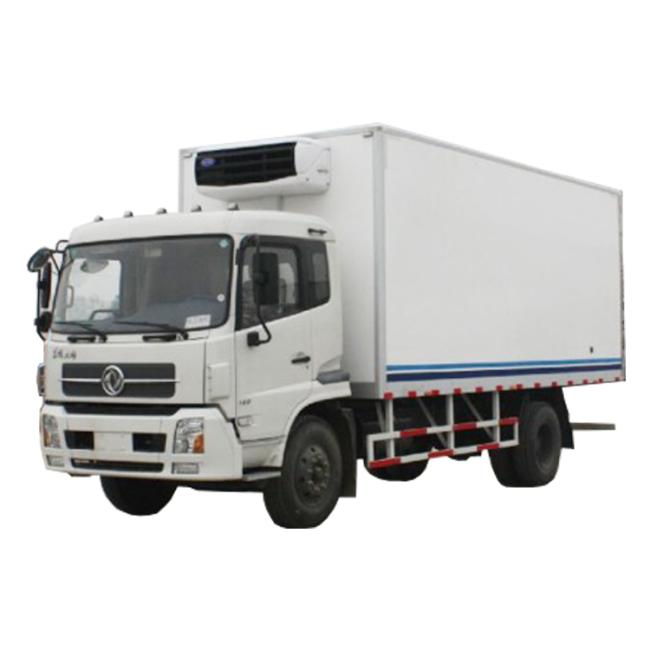

Refrigerator Trcuk

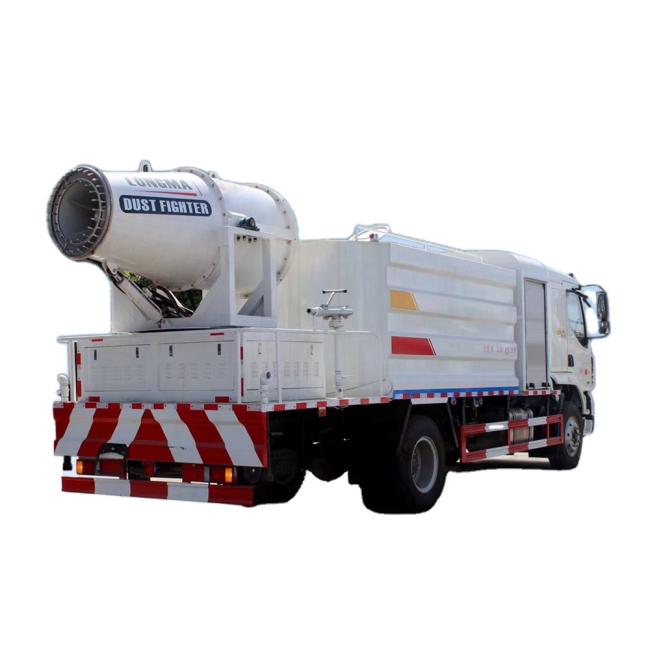

Dust Suspression Truck

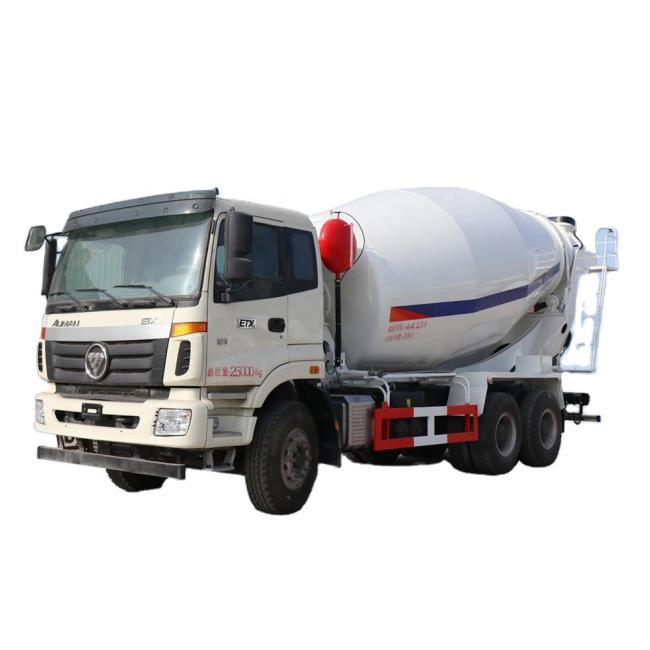

Concrete Mixer Truck

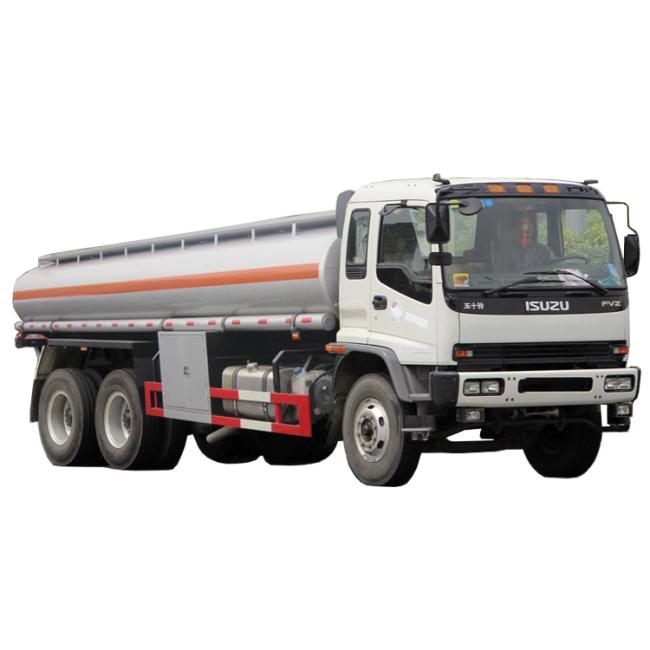

Oil Tanker Truck

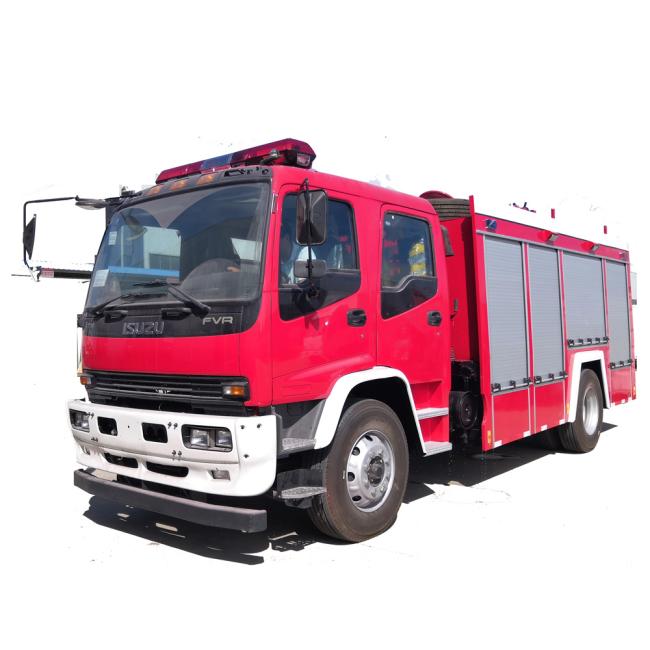

Fire Fight Truck

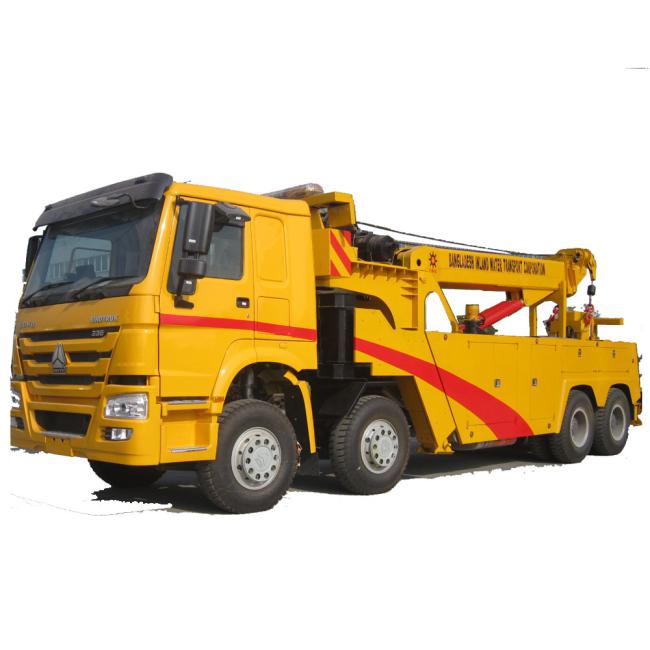

Wrecker Truck

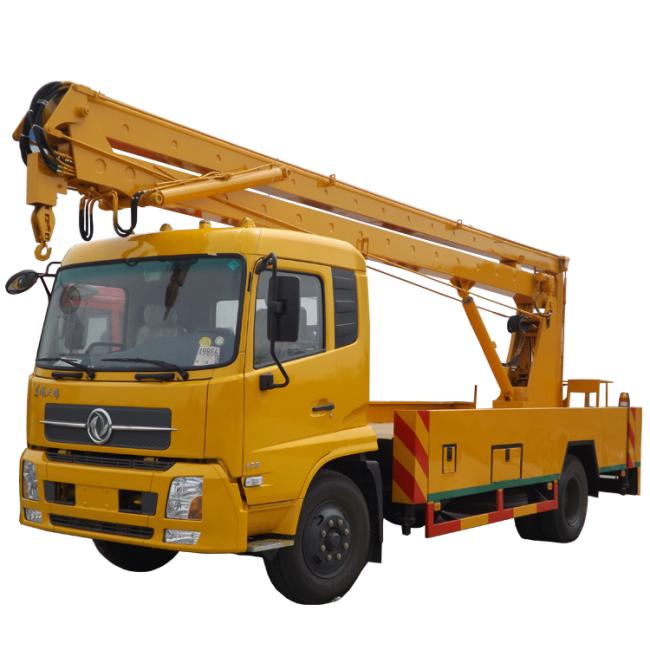

Aerial Work Truck

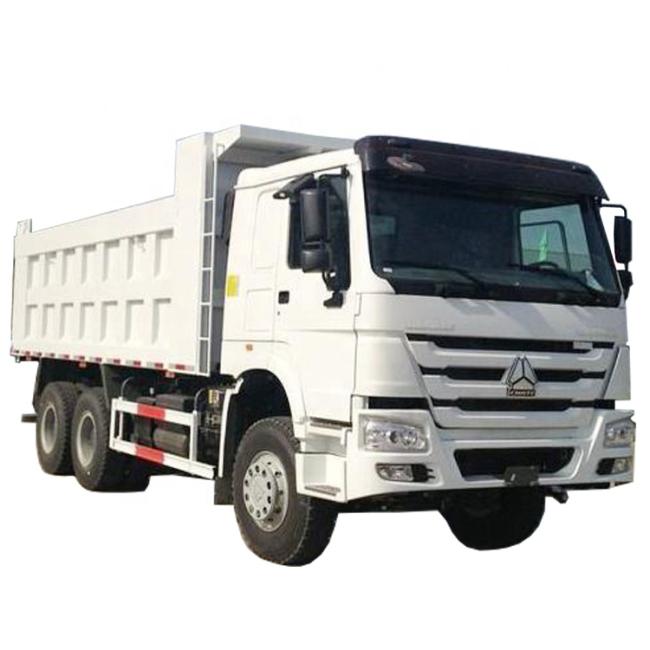

Dump Truck
Tractor Truck

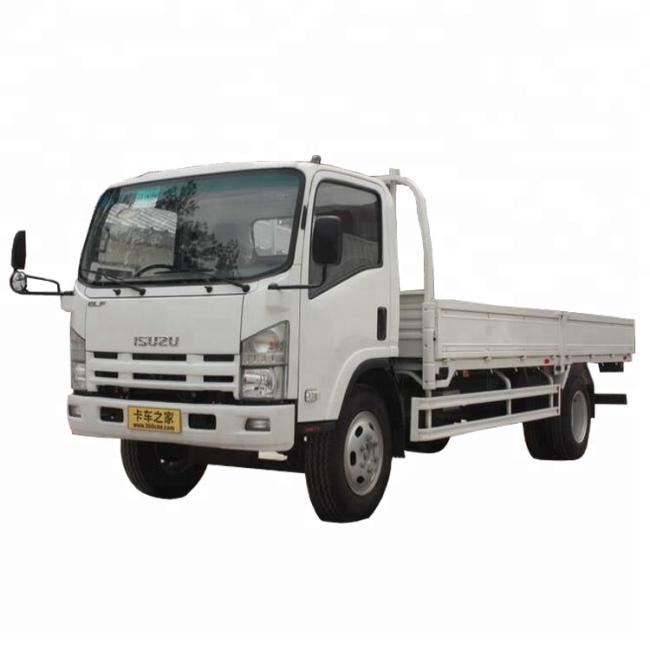

Cargo Truck

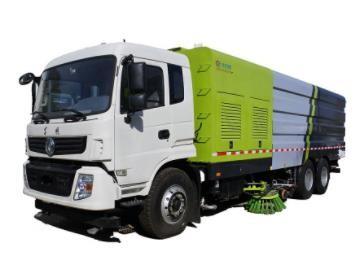

Road Sweeper Truck

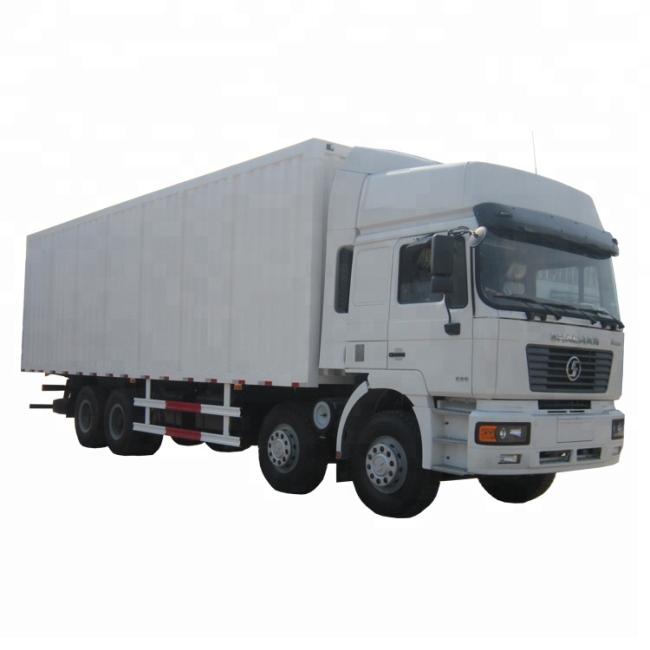

Van Truck

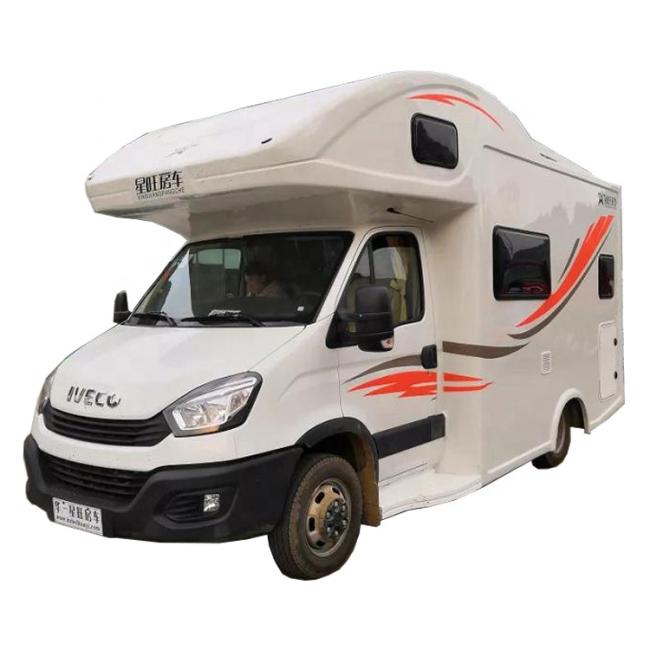

Motor home Truck

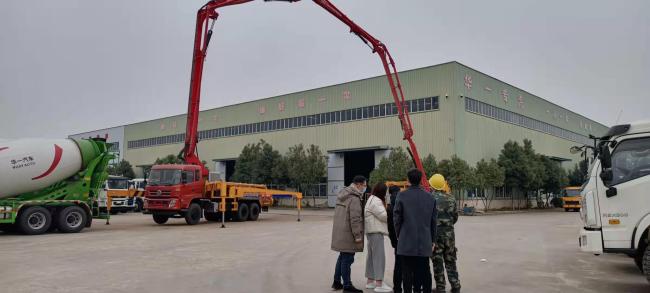

Product Test and Training for Customer
We will test each product before shipment, and also provide online or face to face operation training for customer
Design & Technical & Quality meeting each week
We will discuss with R&D about the questions and feedback from customer to ensure all the quality of products and after-sales service.
-
What is your terms of payment?
T/T with 30% deposit, and 70% balance will be paid before delivery.
We will show you photos of the products and packages before you paying the balance. -
What's your MOQ?
1 set. -
How about delivery time?
25 workdays after we received 30% of contract value T/T down payment. customized types depends on configuration and order quantity. -
Do you have advantage on price?
We offer all the trucks with factory directly selling price. -
How about the afer-sales service?
Our engineer will be ready to offer online-supporting for any technical questions for you.
