6x6 Off-Road Customized and Modified Long-Nose - 260HP High-Torque Work Truck Chassis - Dump truck chassis
Price:
Pricing Tailored to Your Needs
MOQ:
1
Delivery Time:
5-7 working days; large orders depend on the factory's schedule.
Brand:
Dong Feng
Product Description

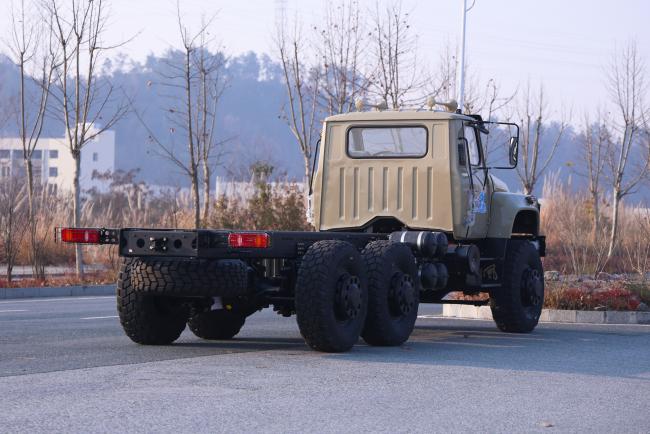

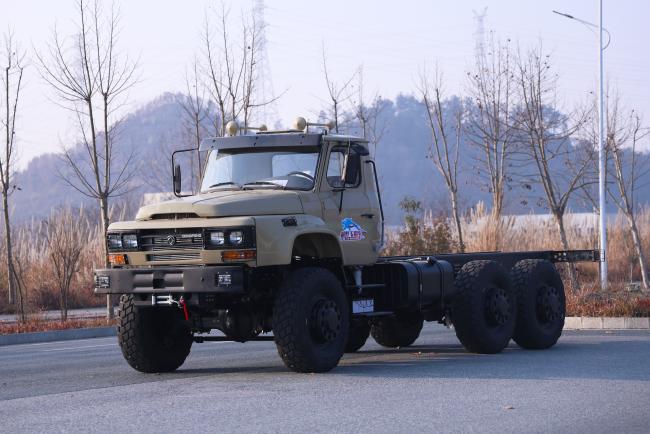

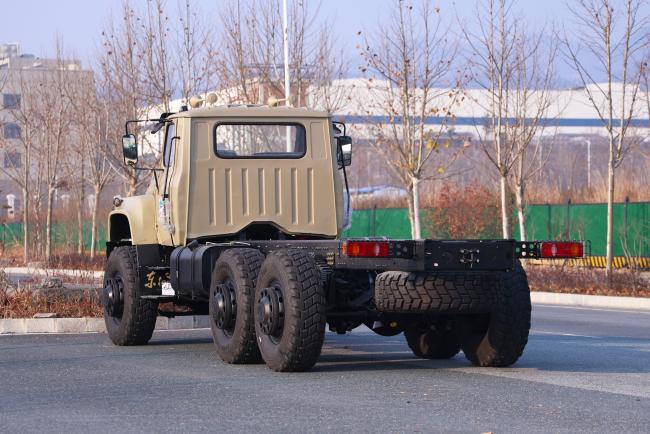

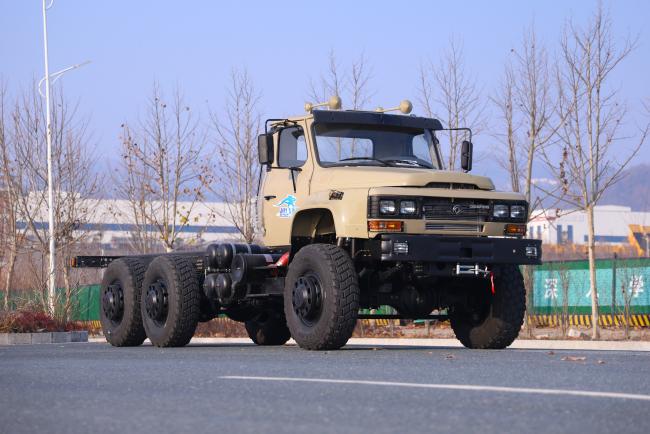

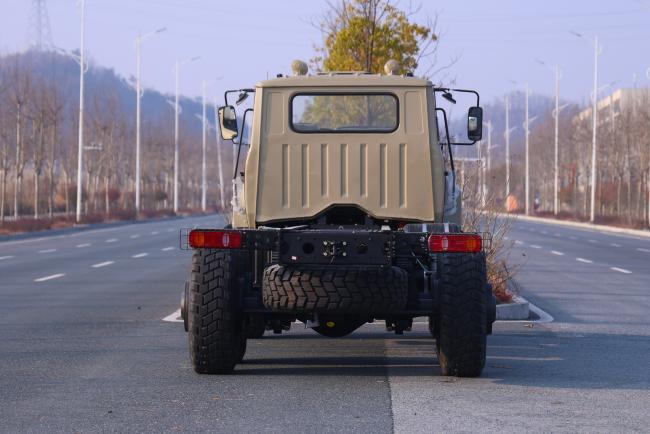

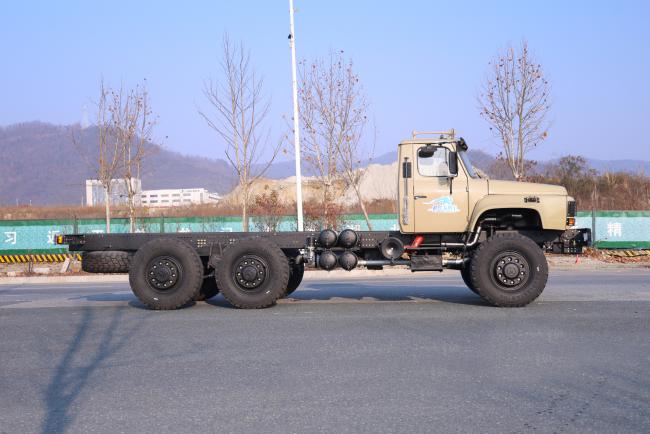

260 HP 6×6 Conventional Cab Chassis is a custom special-purpose chassis developed according to customer requirements and based on the vehicle's intended operating environment.
It is powered by a 260 HP engine with a 6-wheel drive system for strong performance. Equipped with 12.5R20 large-tread tires, it delivers reliable traction even in desert and snow conditions.

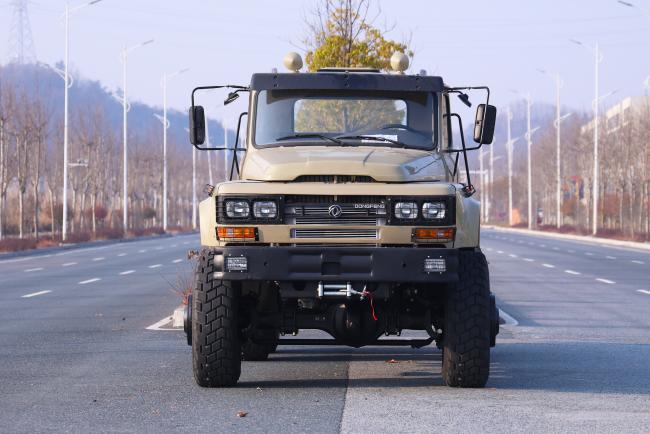

The vehicle can be fitted with an electric winch at the front and light guards for all lamps, making it suitable for operations in forests and swamps.
| Basic Configuration | |
|---|---|
| Engine | C260 33 |
| Transmission | Manual 8-speed |
| Axles | Front axle: 6.5t / Middle axle: 10t / Rear axle: 10t |

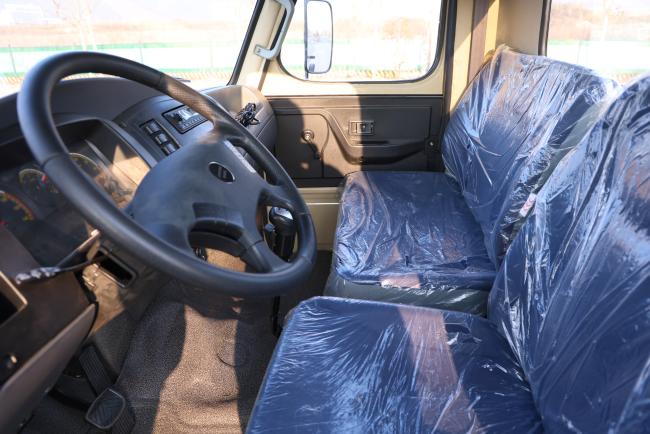

| Cab | Dongfeng single-row conventional cab |
| Tires | 12.5R20 (6+1 spare) |
| Electrical System | 24V system |
| Optional Equipment | Air conditioner, PTO, winch, light guards |
| Detailed Specifications | |
|---|---|

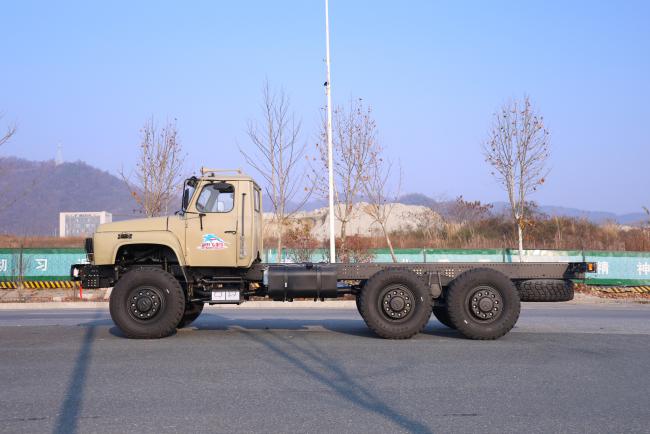

| Chassis Dimensions (L×W×H) | 8230 × 2525 × 2740 mm |
| Modular Body Length | ≥ 5250 mm |
| Wheelbase | 3850 + 1350 mm |
| Track Width | 2010 mm |
| Gross Vehicle Weight (GVW) | 25000 kg |
| Chassis Curb Weight | 7410 kg |
| Seating Capacity | 3 persons |
| Max Power | 191 kW |
| Displacement | 8.3 L |
| Fuel Tank Capacity | 300 L |
| Frame Rear End Height (Loaded) | 1220 mm |
| Max Speed | ≥ 90 km/h |
| Max Gradeability | 60% |
| Parking Gradeability | 40% |
| Fording Depth | 620 mm |
| Ground Clearance (Obstacle Crossing) | 480 mm |
| Minimum Ground Clearance | 295 mm |
| Approach Angle / Departure Angle | 31° / 22° |
