4×4 All-Wheel Drive Off-Road Vehicle Chassis _ Special Vehicle Chassis Design Customization _ High-Performance Four-Wheel Drive Type III Chassis Development
Price:
Pricing Tailored to Your Needs
MOQ:
1
Delivery Time:
5-7 working days; large orders depend on the factory's schedule.
Brand:
Dong Feng
Product Description

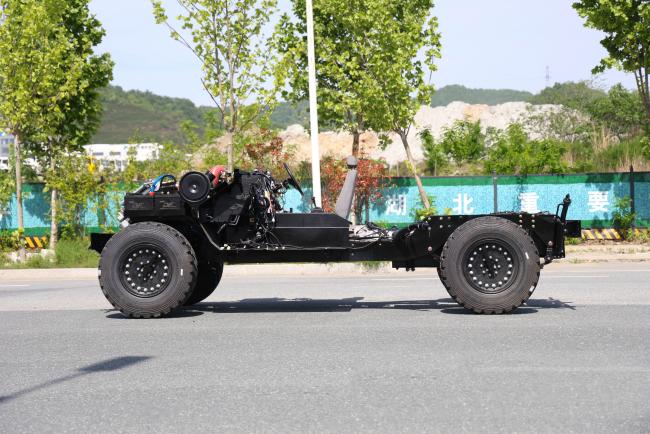

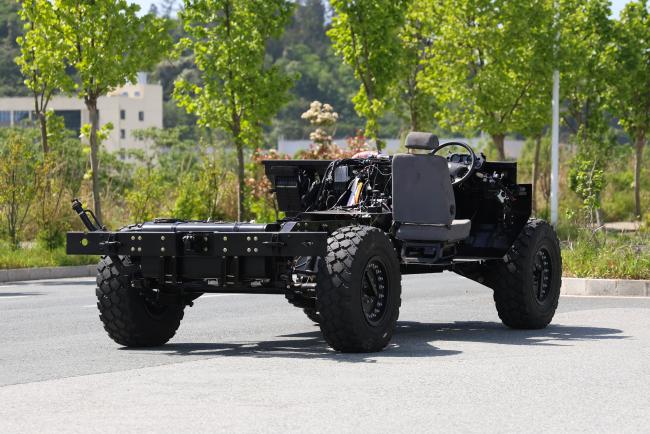

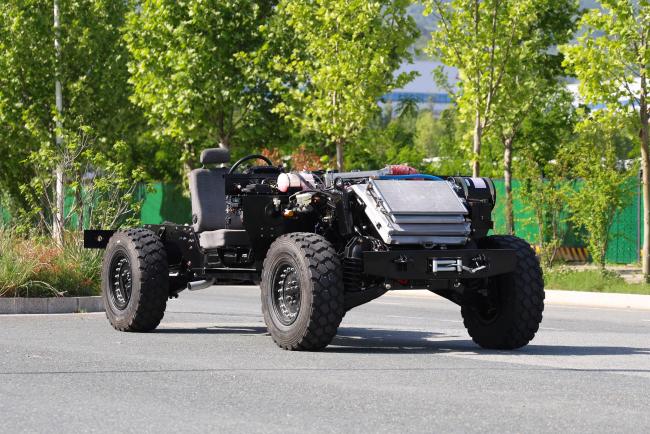

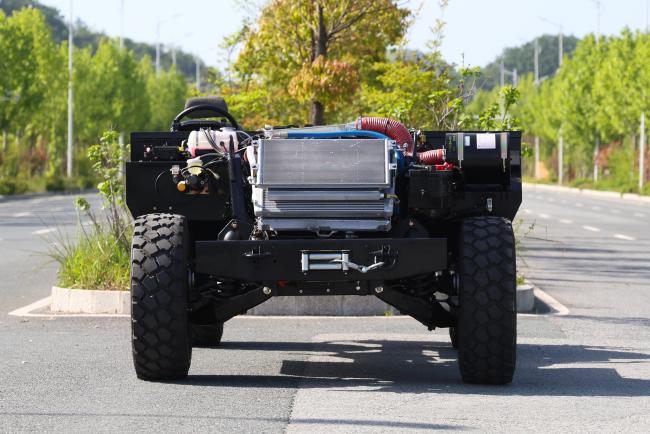

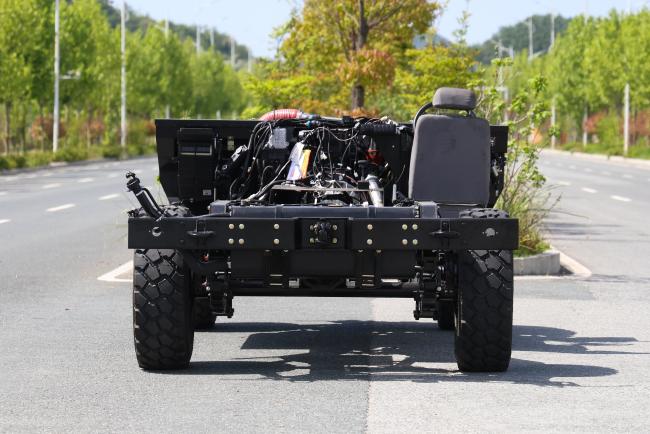

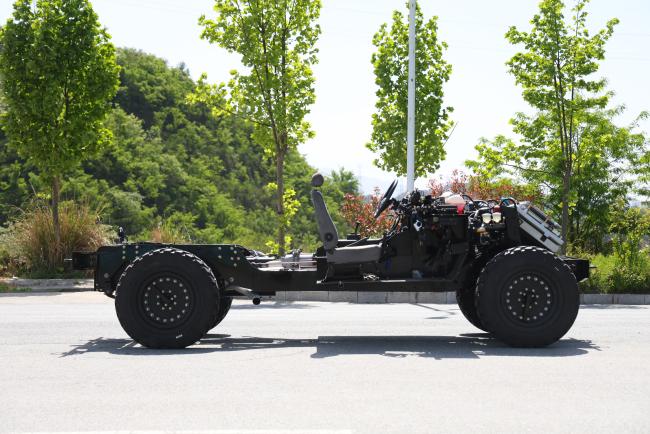

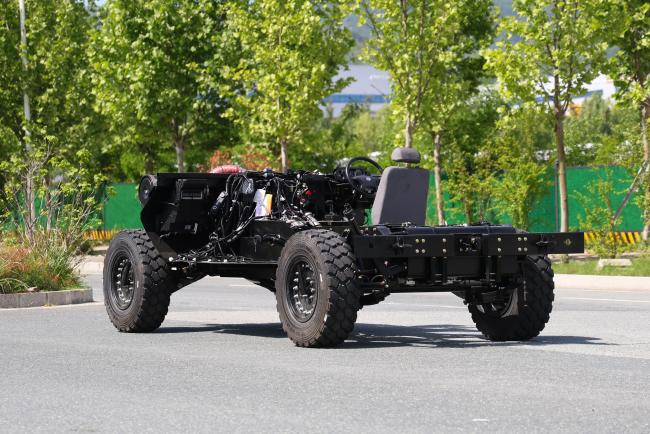

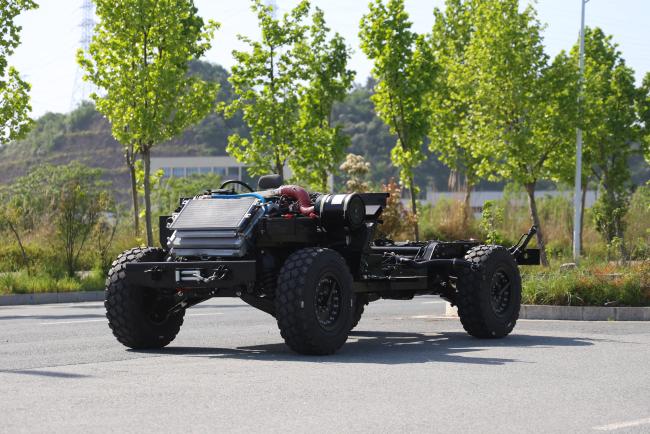

The 6-ton 4x4 independent suspension chassis is a customized product tailored for harsh road conditions, delivering excellent off-road performance.
| Basic Configuration | |
|---|---|
| Engine | 200HP |
| Transmission | Allison Automatic |
| Transfer Case | High/Low 2-speed |
| Axles | Front 2.6t / Rear 3.4t |
| Frame | Custom Frame |
| Tires | 305/80R18 (4 units) |
| Suspension | Independent Suspension |
| Electrical System | 24V |
| Detmetersailed Parameters |
|
|---|---|
| Class III Chassis Dimensions | 5290×2250×1710 mm (height to top of seat back) |
| Wheelbase | 3800 mm |
| Track Width (Front/Rear) | 1842 / 1878 mm |
| Gross Vehicle Weight | 6000 kg |
| Class III Chassis Curb Weight | 2750 kg |
| Fuel Tank Capacity | 76 + 39 L |
| Maximum Power | 147 kW / 2700 r/min |
| Displacement | 4.5 L |
| Maximum Speed | ≥90 km/h |
| Obstacle Crossing Height | 480 mm |
| Wading Depth | 590 mm |
| Frame Rear Upper Plane Height | 930 mm |
| Approach/Departure Angle | 48° / 46° |
Note:Specifications are for reference only, subject to the actual vehicle.
