6x6 Protected Class III Chassis Customization | 6x6 Independent Suspension Special Vehicle Chassis | 300hp 15-ton Semi-Finished Off-Road Truck
Price:
Pricing Tailored to Your Needs
MOQ:
1
Delivery Time:
5-7 working days; large orders depend on the factory's schedule.
Brand:
Dong Feng
Product Description

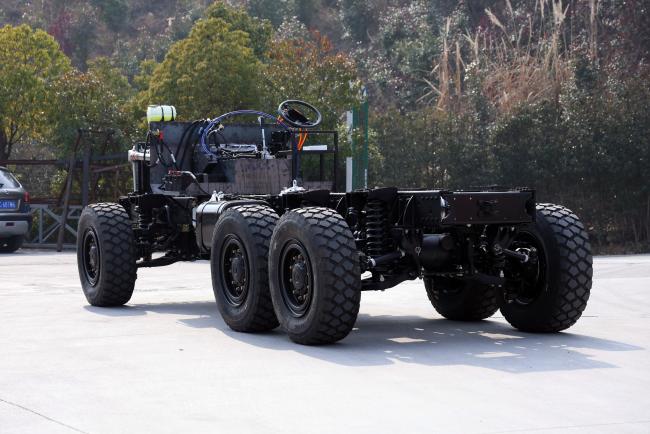

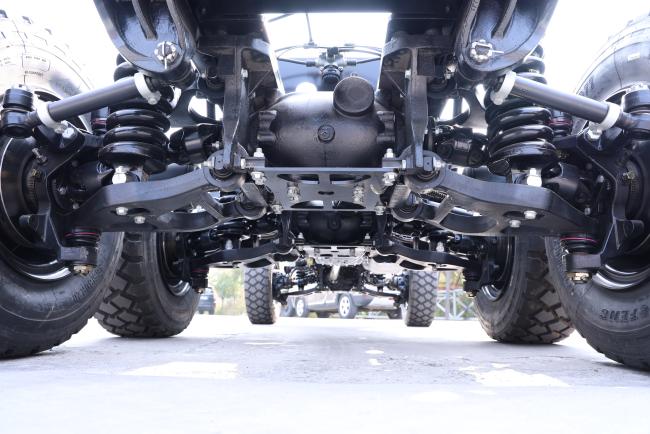

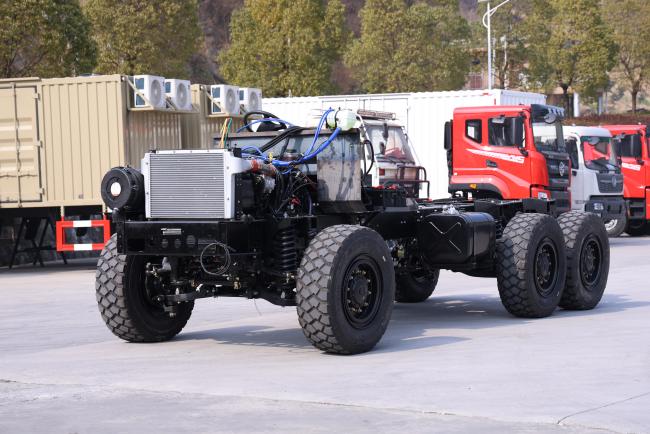

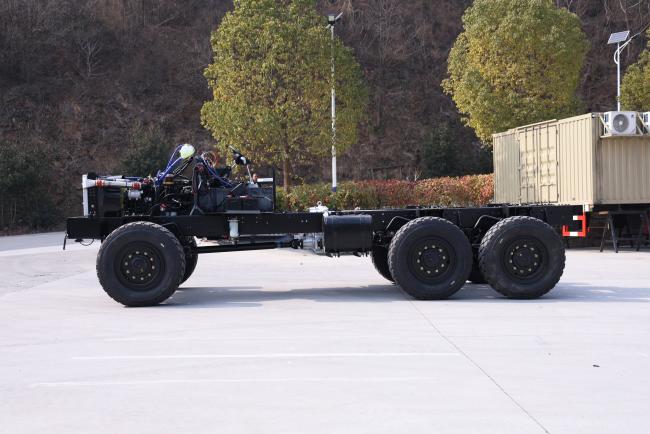

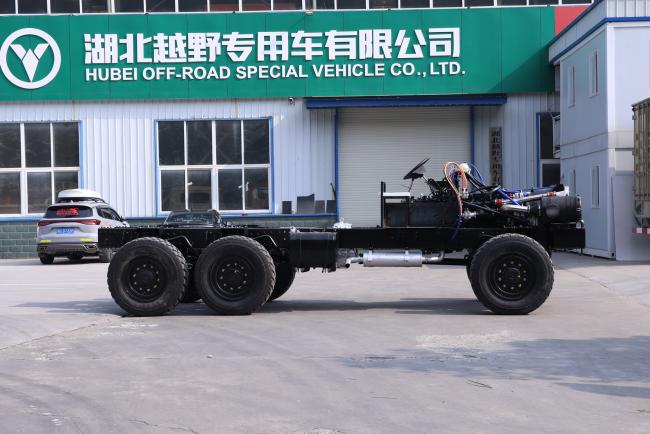

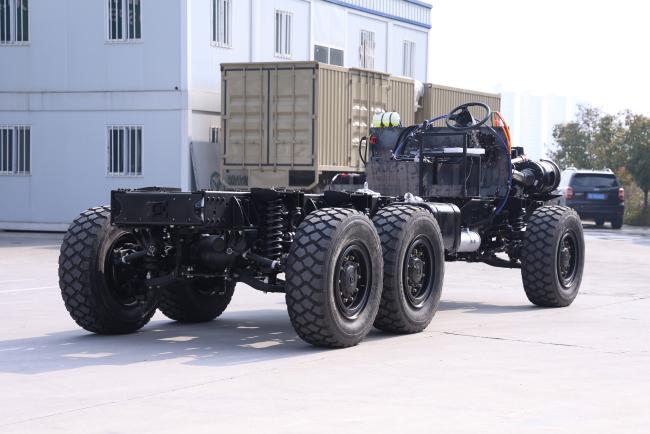

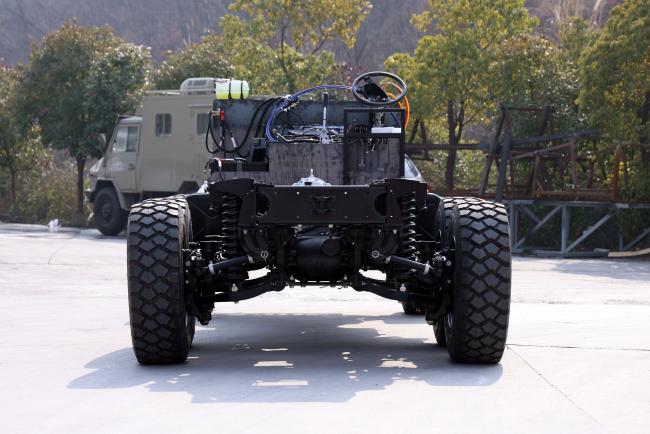

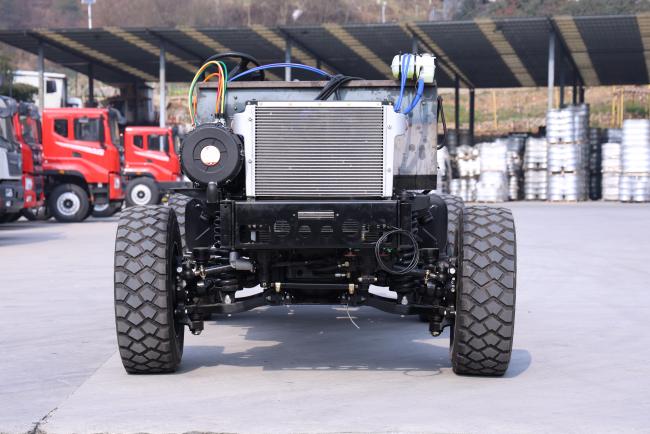

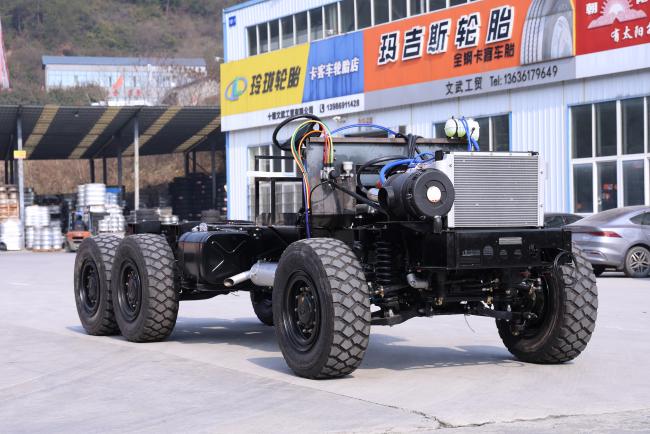

This 6×6 protected Class III chassis is customized to user requirements, focusing primarily on off-road performance. Its highlights include a 300hp engine, double wishbone independent suspension, Dongfeng Mengshi-style tires, and dual fuel tank design.
| Basic Configuration | |
|---|---|
| Engine | 300HP |
| Transmission | Wanliyang 6-speed Manual |
| Transfer Case | High/Low 2-speed |
| Axles | Front 5t / Rear Dual 5t |
| Tires | 365/80R20 (6+1 Spare) |
| Suspension | Leaf Spring 9/10 |
| Electrical System | 24V |
| Detailed Parameters | |
|---|---|
| Class III Chassis Dimensions (with seat) | 6935×2510×2210 mm |
| Wheelbase | 3600+1200 mm |
| Track Width | 2060 mm |
| Gross Vehicle Weight | 15000 kg |
| Curb Weight (Class III Chassis) | 6300 kg |
| Fuel Tank Capacity | 135+135 L |
| Maximum Power | 221 kW |
| Displacement | 6.7 L |
| Maximum Speed | ≥100 km/h |
| Minimum Ground Clearance | 485 mm |
| Obstacle Crossing Height | 650 mm |
| Wading Depth | 540 mm (height-adjustable) |
| Frame Rear Upper Plane Height | 1235 mm |
| Approach/Departure Angle | 36° / 46° |
| Note | Specifications are for reference only, subject to the actual vehicle. |
Note:Specifications are for reference only, subject to the actual vehicle.
