2046 Mobile Office Vehicle _ 4x4 Off-Road RV _ Customized Modification for Outdoor Office Vehicle
Price:
Pricing Tailored to Your Needs
MOQ:
1
Delivery Time:
5-7 working days; large orders depend on the factory's schedule.
Product Description
This vehicle is designed for office work and rest in complex outdoor environments such as construction sites, forests and mining areas. Built for off-road use, it is equipped with 2 spare tires and 2 fuel barrels for emergency use.
| Basic Configuration | |
|---|---|
| Engine | Sofim SOFIM8142.43 (111 HP) |
| Transmission | Mechanical 5-speed manual |
| Transfer Case | Part-time 4WD, high/low range |
| Axles | Front axle: 1.5 tons / Rear axle: 3.5 tons |
| Frame | 860mm |
| Suspension | Leaf spring 6/7 |
| Tires | 255/100R16 off-road dedicated tires (4+2 units) |

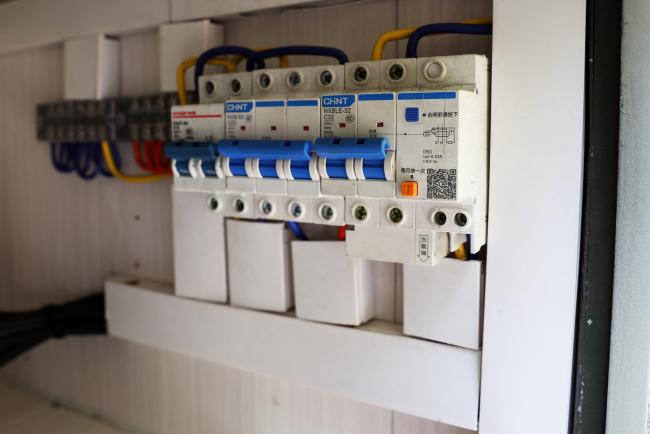

| Electrical System | 24V circuit system |
| Body | Aluminum alloy material, sandwich structure |

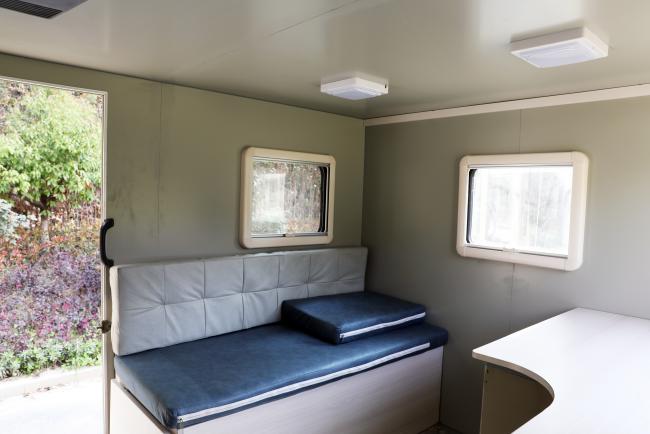

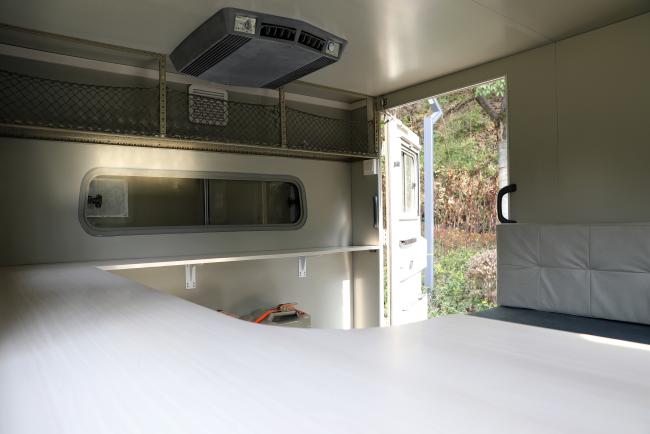

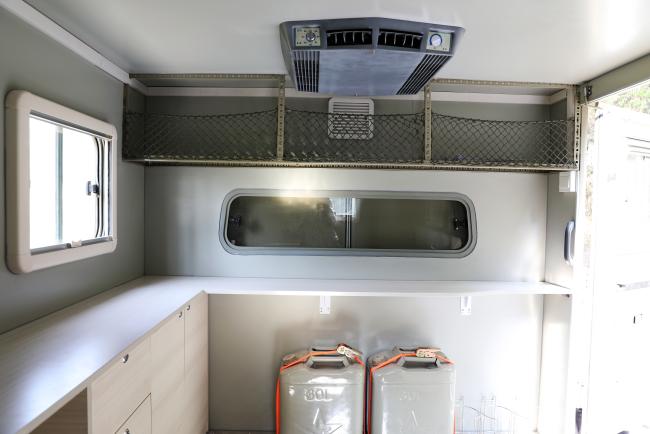

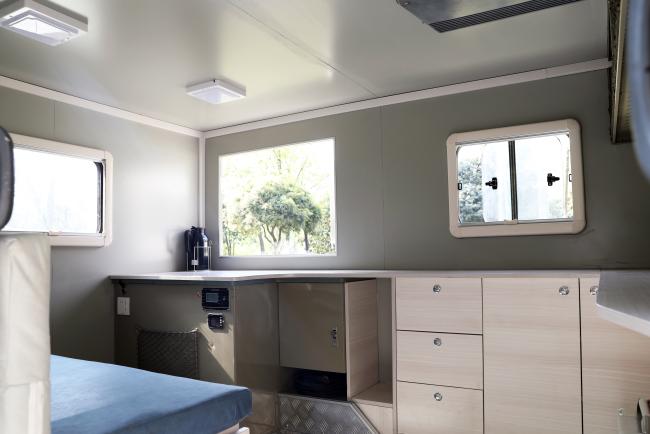

The interior facilities are simple, mainly including seats (convertible to beds), storage cabinets, air conditioners and water heaters, with 220V power supply available. A ventilation port connects the cab and the body for air circulation and temperature regulation.
| Detailed Parameters | |
|---|---|
| Overall Dimensions | 5140×2070×2950mm |
| Body Interior Dimensions | 2487×1883×1600mm |
| Front/Rear Overhang | 820/1505mm |
| Wheelbase | 2815mm |
| Track (Front/Rear) | 1703/1683mm |
| Gross Vehicle Weight | 5000kg |
| Curb Weight | 3590kg |
| Number of Passengers | 3 persons |
| Fuel Tank Capacity | 90L |
| Maximum Speed | 85km/h |
| Wading Depth | 660mm |
| Approach/Departure Angle | 22°/21° |
Note: This configuration is for reference only, please refer to the actual vehicle for details.
