Dongfeng 4x4 Long‑Hood Off‑Road Dump Truck - Dongfeng 4WD Nose‑Type 4‑Ton Construction Site Tipper - Special Truck for Timber Stone and Earth Transportation
Price:
Pricing Tailored to Your Needs
MOQ:
1
Delivery Time:
5-7 working days; large orders depend on the factory's schedule
Brand:
Dong Feng
Product Description

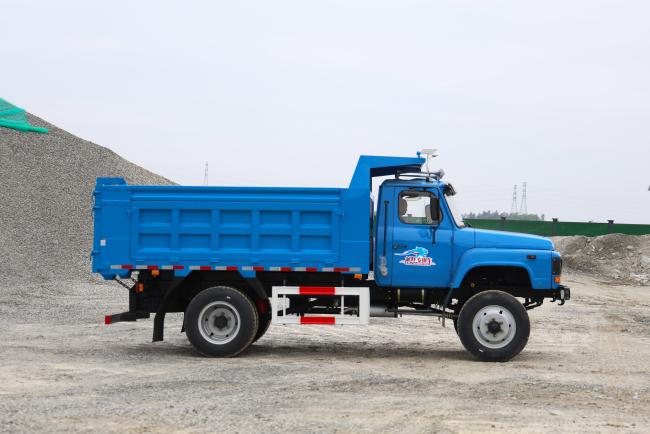

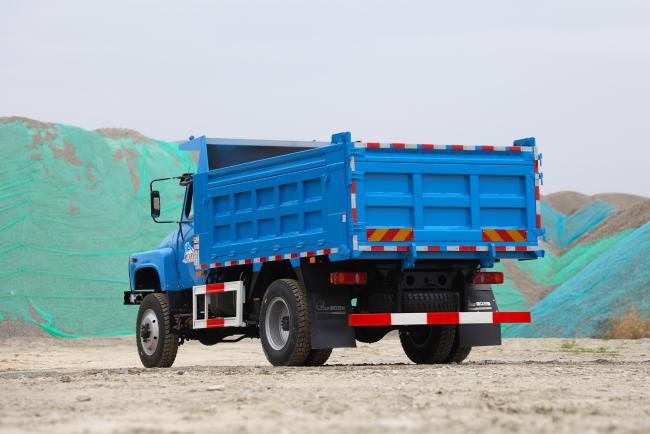

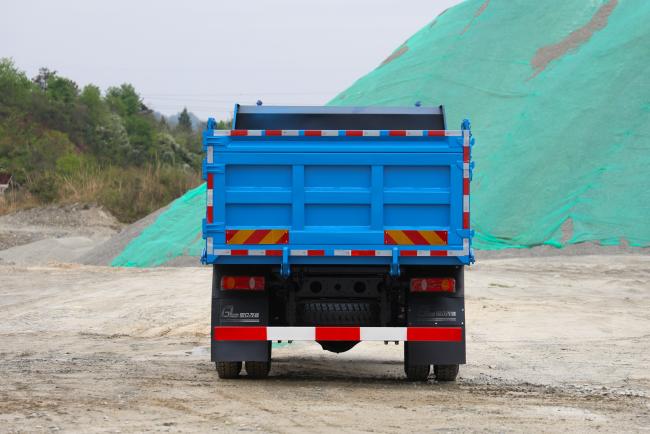

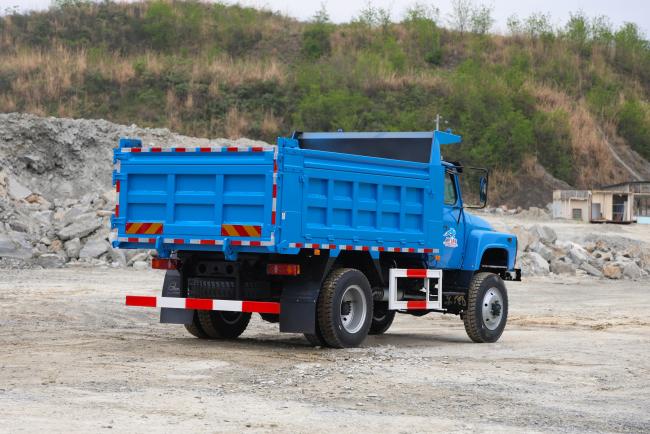

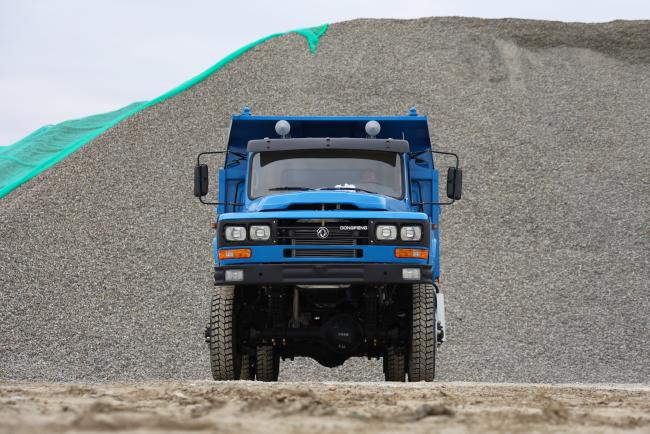

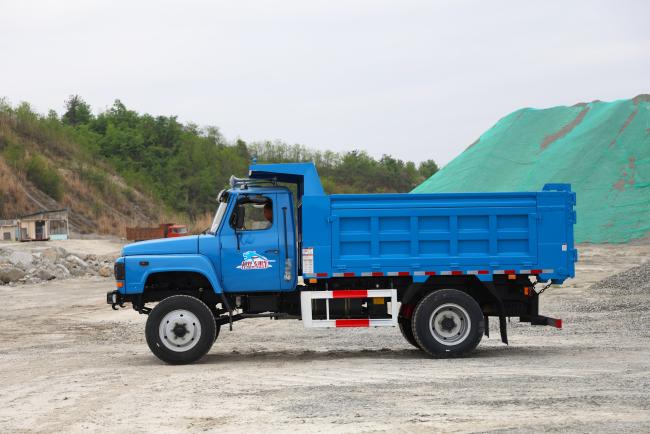

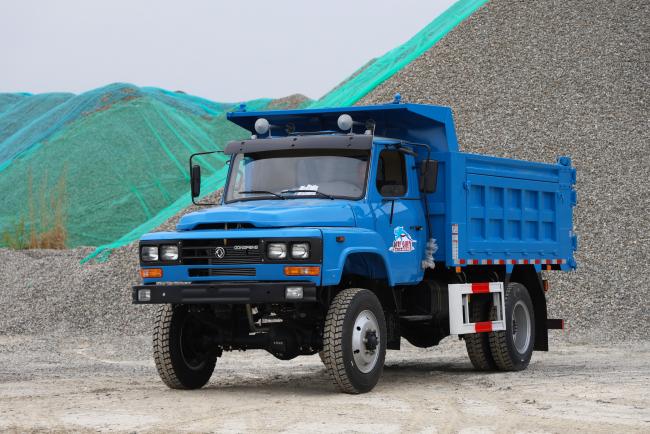

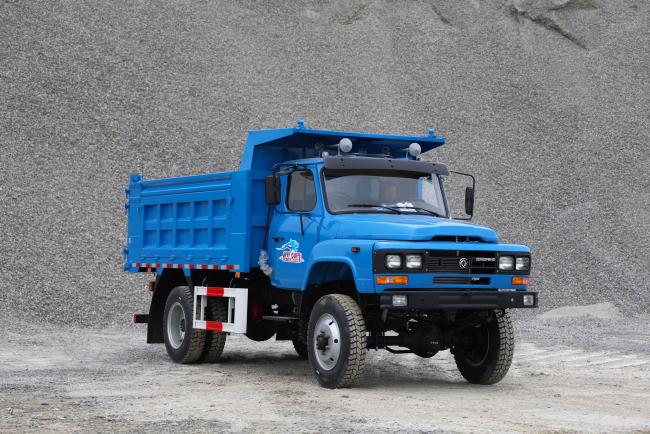

Dongfeng 4x4 Long Hood Off‑Road Dump Truck,Suitable for hauling timber, stone and earth in forest areas and construction sites with excellent off‑road performance.
| Basic Configuration | |
|---|---|
| Engine | Dongfeng B170 33 |
| Gearbox | 5‑speed Manual |
| Transfer Case | Part‑time 4WD with High/Low Gear |
| Frame | 860×232mm, Double‑layer |
| Axles | Front axle: 2.5 tons / Rear axle: 8 tons |
| Tire | 9.00R20 (6+1 spare tire) |
| Electrical System | 24V Circuit System |
| Accessories | On‑board tools, fire extinguisher, jack |
| Detailed Parameters | |
|---|---|
| Overall Dimension | 6410×2420×2730mm |
| Cargo Box Dimension | 3600×2200×(800+200) mm |
| Wheelbase | 3700mm |
| Track Width | 1840/1730mm |
| Gross Vehicle Weight | 10800kg |
| Curb Weight | 6010kg |
| Rated Payload | 4050kg |
| Seating Capacity | 2‑3 persons |
| Fuel Tank Capacity | 160L |
| Max Speed | ≥85km/h |
| Max Gradient | 60% |
| Min Ground Clearance | 280mm |
| Fording Depth | 620mm |
| Approach/Departure Angle | 41°/30° |
Note: Configuration is for reference only, subject to the actual vehicle.
