4WD Dongfeng MENGSHI M50 Modified Vehicle _ Civilian Version Double-Row Mengshi Fastback Vehicle _ 4WD All-Terrain Maintenance & Repair Support Vehicle
Price:
Pricing Tailored to Your Needs
MOQ:
1
Delivery Time:
5-7 working days; large orders depend on the factory's schedule.
Brand:
Dong Feng
Product Description

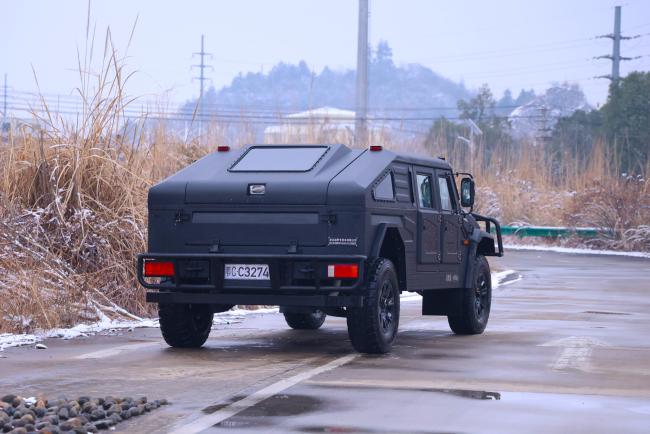

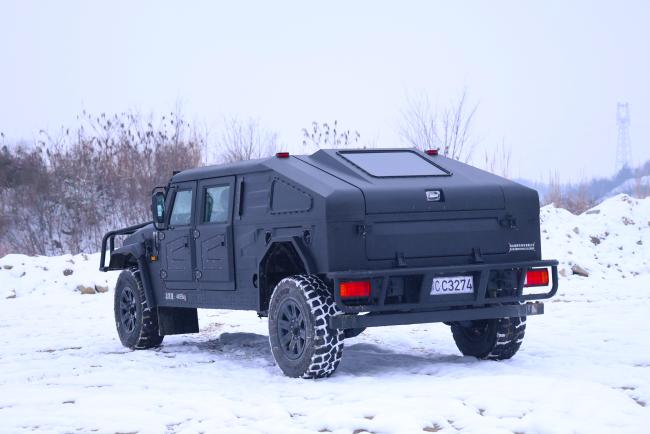

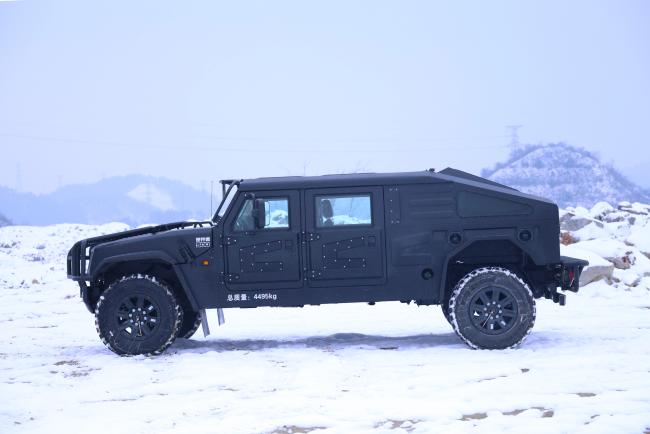

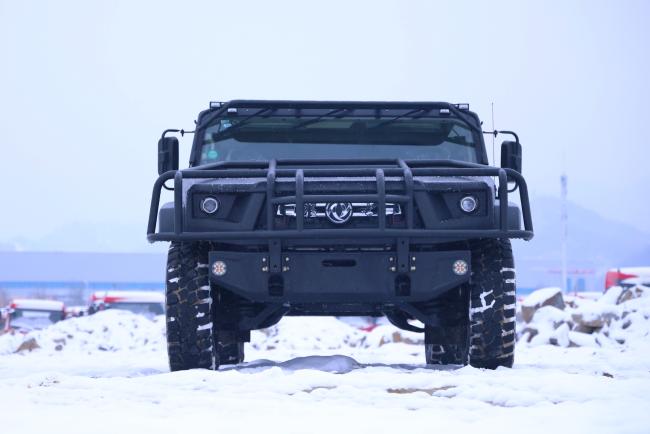

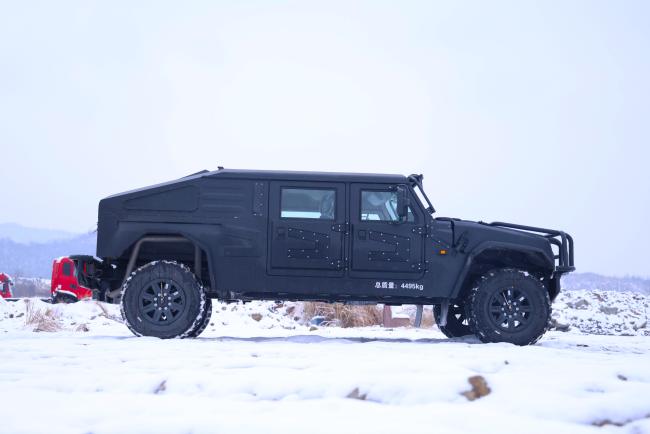

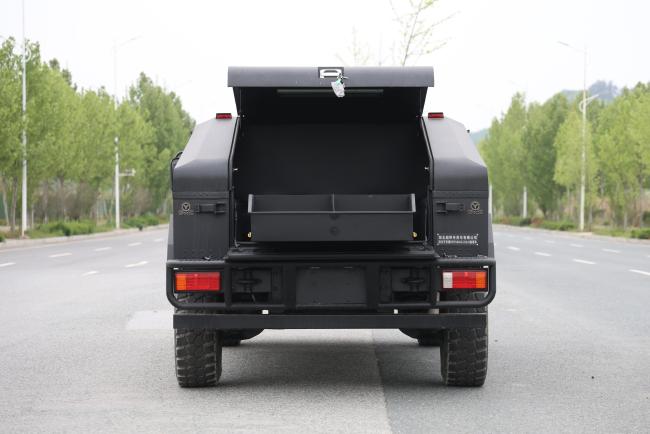

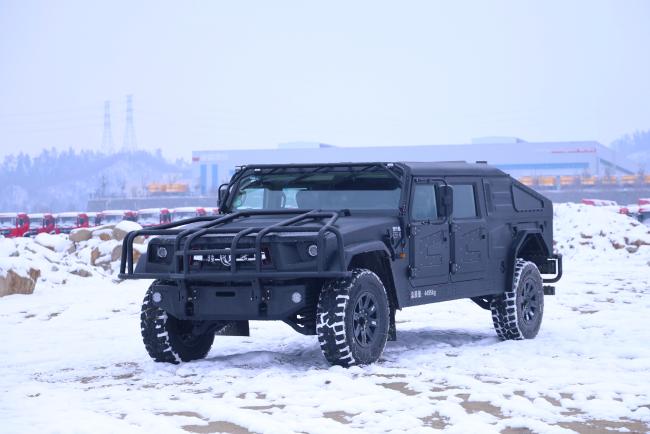

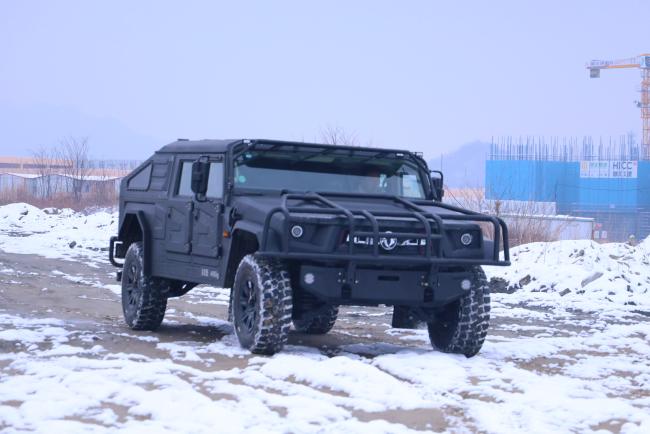

The Dongfeng Mengshi 4WD all-terrain maintenance vehicle is modified from the civilian version of the Dongfeng Mengshi M50. The rear part adopts a fastback design and can be opened from the rear to store tools and equipment. It is a special off-road vehicle suitable for field rescue and maintenance.
| Basic Configuration | |
|---|---|
| Engine | Dongfeng EQB150-20 |
| Transmission | 5-speed Manual |
| Transfer Case | Full-time 4WD, High/Low Two-speed |
| Suspension | Double Wishbone Independent Suspension, Coil Spring, Dual-way Hydraulic Shock Absorber |
| Tires | 305/80R18 (4+1 units) |
| Electrical System | 24V System, Negative Ground |
| Accessories | Vehicle-mounted tools, fire extinguisher |
| Optional Equipment | 5400kg Electric Winch; Raised Wading Kit (max wading depth: 1200mm) |
The chassis adopts the Mengshi-standard independent suspension structure, and is equipped with special functions such as dual fuel tanks, tire inflation/deflation, and fuel preheating.
| Detailed Parameters | |
|---|---|
| Overall Dimensions | 5320×2310×1950 mm |
| Wheelbase | 3800 mm |
| Track Width | 1880 / 1850 mm |
| Gross Vehicle Weight | 4490 kg |
| Curb Weight | 4230 kg |
| Seating Capacity | 4 persons |
| Fuel Tank Capacity | 70 + 57 L |
| Maximum Speed | ≥120 km/h |
| Power | 143 kW |
| Displacement | 4.0 L |
| Ground Clearance | 380 mm |
| Wading Depth | 750 mm |
| Step Climbing Height | 430 mm |
| Turning Diameter | 17 m |
| Side Slope Driving | 40% |
| Maximum Gradeability | 60% |
| Approach/Departure Angle | 45° / 35° |
| Operating Temperature Range | -41 ~ +46℃ |
| Altitude Adaptability | > 4500 m |
Note: This configuration is for reference only, subject to the actual vehicle.
