Product Description
Product Description

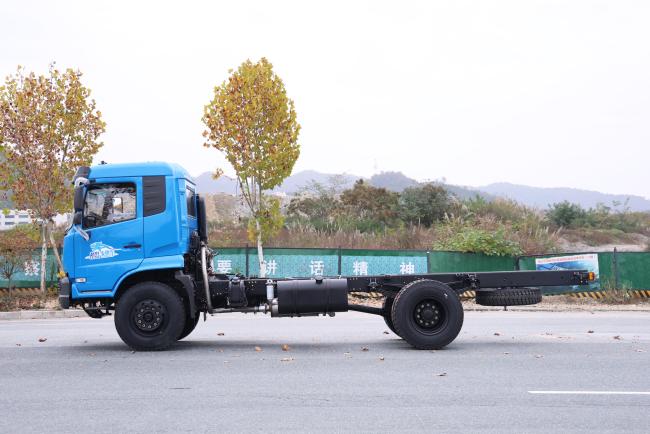

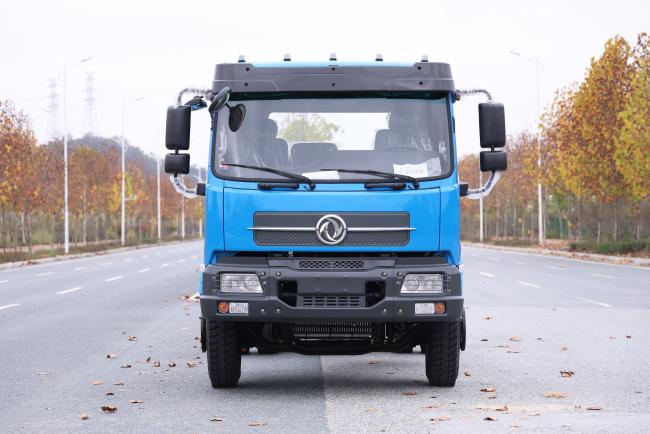

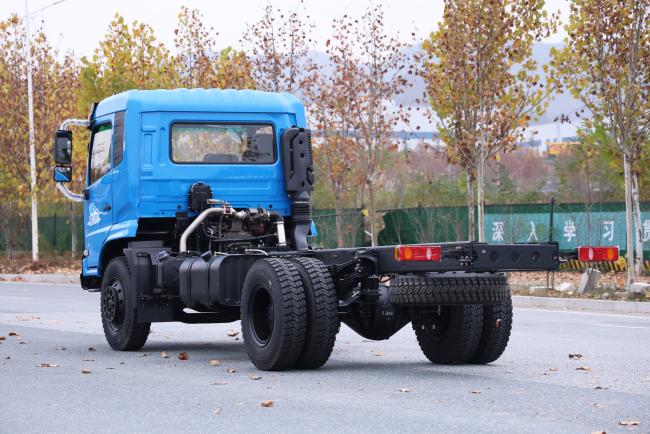

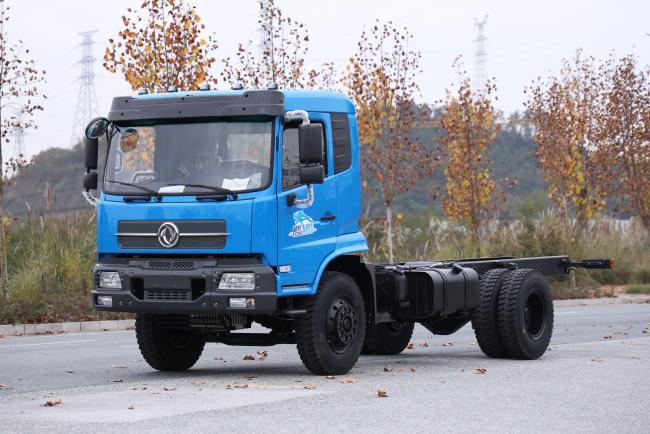

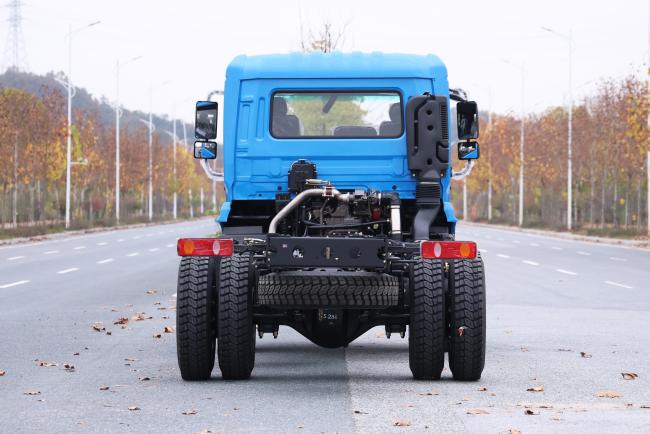

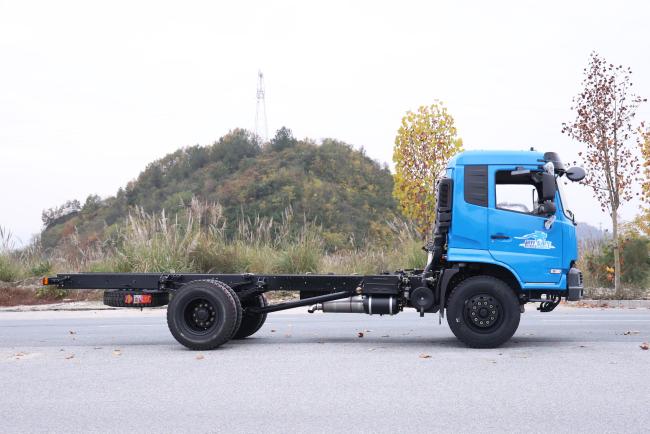

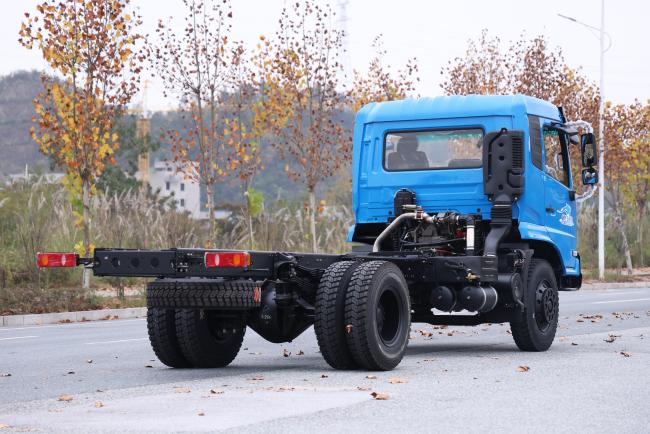

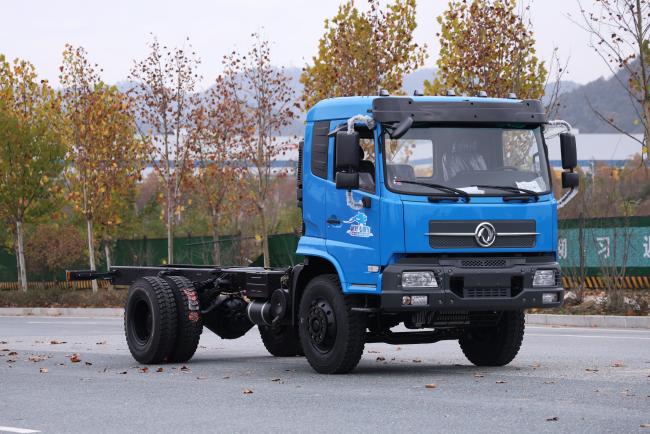

Total weight of 25 tons, this chassis is specially designed for harsh off-road conditions and can be driven in forest and mountain road areas.
6*6 part-time drive, allowing free switching between 4*4 and 6*6 modes.
Raised exhaust pipe for better performance in wading sections.
Equipped with a self-start function, enabling engine start and stop without entering the cab, convenient for after-sales maintenance.
Note: This configuration is for reference only, please refer to the actual vehicle for details
| Dongfeng 25-ton 6*6 Off-road Special Vehicle Chassis | |
| Basic Specification | |
| Engine | Yuchai YC6MK340-33 |
| Transmission | 12-speed manual |
| Transfer Case | Part-time 6*4, with high/low two gears |
| Frame | 860*300mm, double-layer reinforced |
| Axles | Front axle: 7t, Middle axle: 13t, Rear axle: 13t |
| Tires | 12.5-20 herringbone pattern off-road tires (6+1) |
| Suspension | Leaf springs: 9/10 pieces |
| Electrical System | 24V electrical system |
| Basic Parameter | |
| Chassis Dimensions | 7657*2417*3380mm |
| Modification Dimensions | ≥5400mm |
| Wheelbase | 3600+1350mm |
| Track Width | 2150mm |
| Gross Mass | 25000kg |
| Curb Mass | 9240kg |
| Seating Capacity | 3 persons |
| Maximum Power | 250kW |
| Fuel Tank Capacity | 300L |
| Maximum Speed | ≥87km/h |
| Maximum Gradeability | 60% |
| Frame Top Ground Clearance | 1170mm (rear end) |
| Minimum Ground Clearance | 315mm |
| Vertical Obstacle Clearance | 520mm |
| Wading Depth | 1230mm |
| Approach Angle / Departure Angle | 25°/21° |
