All-Wheel Drive 25-Ton Off-Road Special Vehicle Chassis Modification _ 6*6 Truck Chassis Sales and Customization _ 260HP 6x6 Off-Road Chassis
Price:
Pricing Tailored to Your Needs
MOQ:
1
Delivery Time:
5-7 working days; large orders depend on the factory's schedule.
Brand:
Dong Feng
Product Description

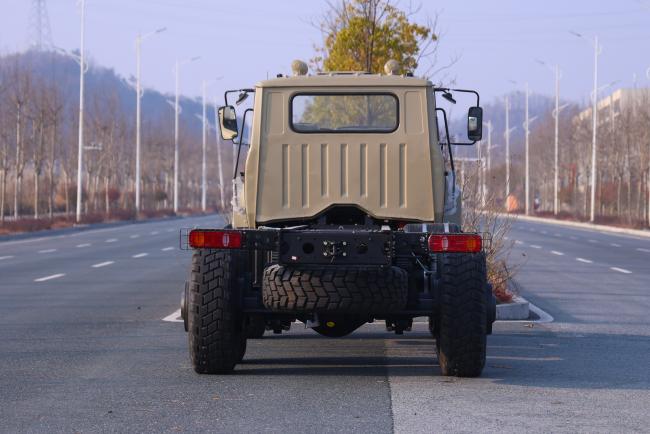

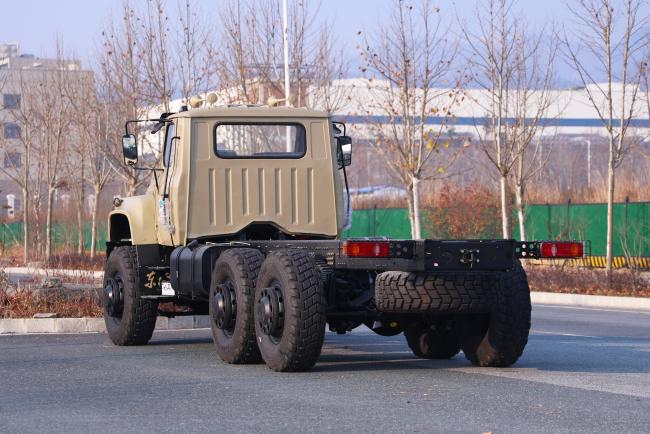

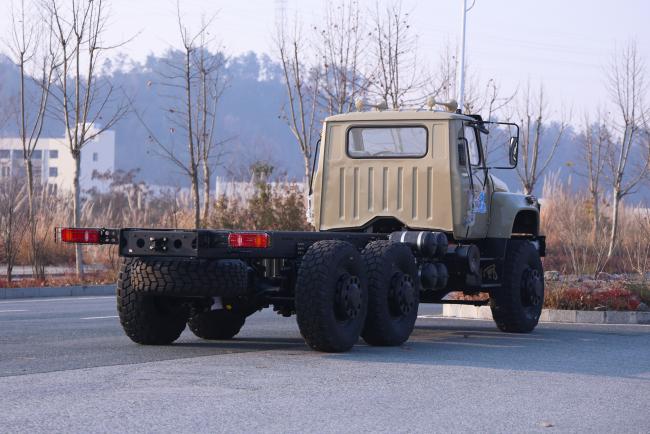

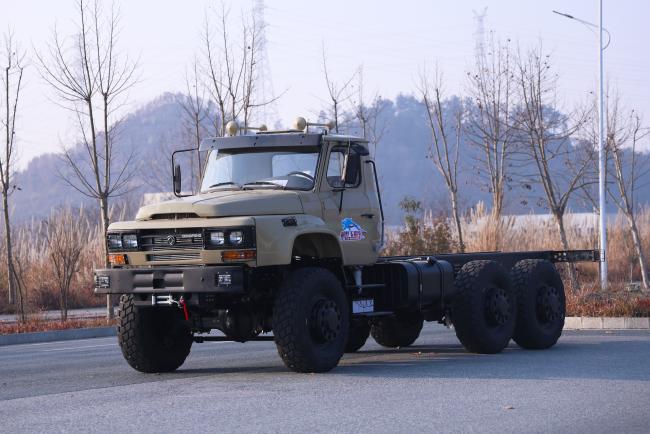

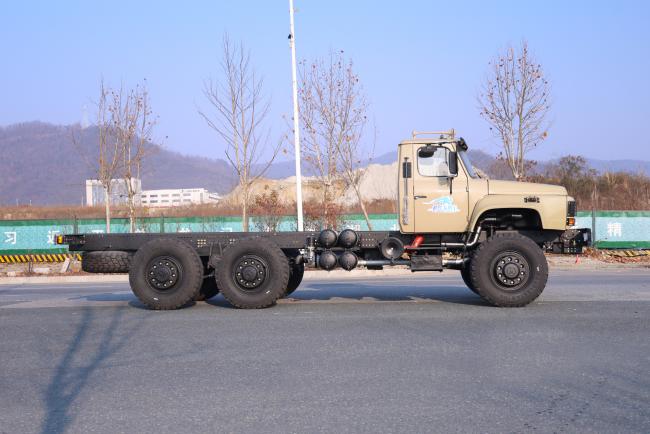

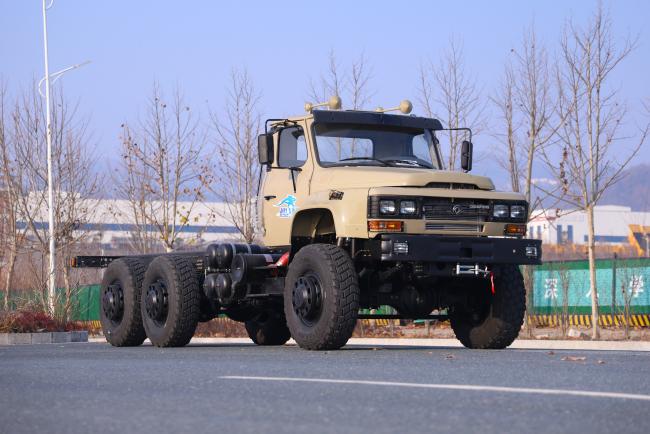

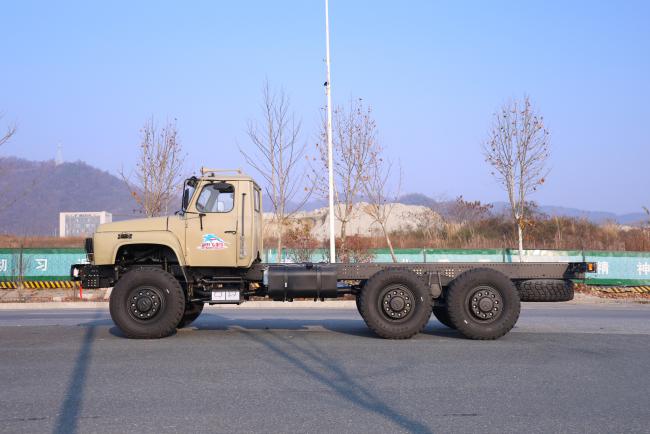

This 260-horsepower 6x6 cab-over chassis is a custom-built special platform developed for demanding environments. It is powered by a 260 HP engine with six-wheel drive for strong traction. Equipped with 12.5R20 deep-tread tires, it delivers reliable grip even in desert and snowy conditions.
| Basic Configuration | |
|---|---|
| Engine | C260 33 |
| Transmission | 8-speed Manual |
| Axles | Front: 6.5t / Middle: 10t / Rear: 10t |
| Cab | Dongfeng Cab-Over Single Cab |
| Tires | 12.5R20 (6+1 spare) |
| Electrical System | 24V System |
| Optional Equipment | A/C, PTO, Winch, Headlight Grilles |

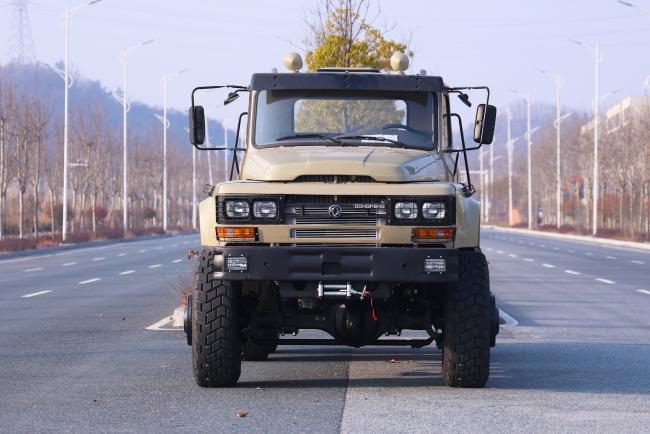

An electric winch can be installed at the front, and all lights can be fitted with protective grilles, making it ideal for forest and swamp operations.
| Detailed Parameters | |
|---|---|
| Chassis Dimensions | 8230×2525×2740 mm |
| Body Mounting Length | ≥ 5250 mm |
| Wheelbase | 3850 + 1350 mm |
| Track Width | 2010 mm |
| Gross Vehicle Weight | 25000 kg |
| Chassis Curb Weight | 7410 kg |
| Seating Capacity | 3 persons |
| Max Power | 191 kW |
| Displacement | 8.3 L |
| Fuel Tank Capacity | 300 L |
| Frame Rear End Height | 1220 mm |
| Max Speed | ≥ 90 km/h |
| Gradeability | 60% |
| Gradient Holding Capability | 40% |
| Fording Depth | 620 mm |
| Obstacle Crossing Height | 480 mm |
| Min. Ground Clearance | 295 mm |
| Approach / Departure Angle | 31° / 22° |
