170 Horsepower 4 Wheel Drive Light Dump Truck _ 4×4 Dongfeng 3.8 Meter Cargo Box Tipper Truck _ Export Mini Mining Forest Area Dumper Truck

Price Negotiable
Price: Pricing Tailored to Your Needs
MOQ: 1
Delivery Time: 5-7 working days; large orders depend on the factory's schedule.
Brand: Dong Feng
Product Description

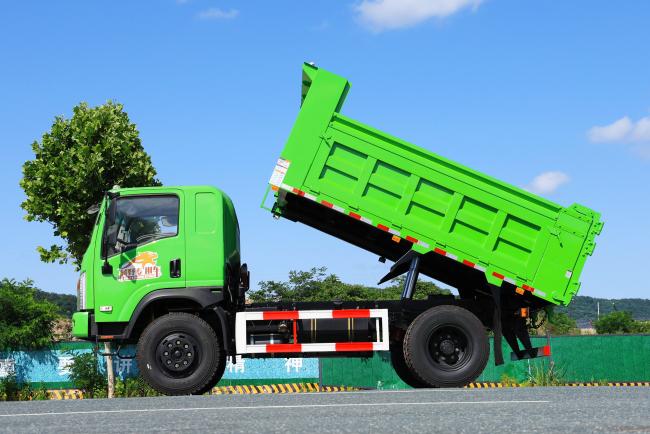

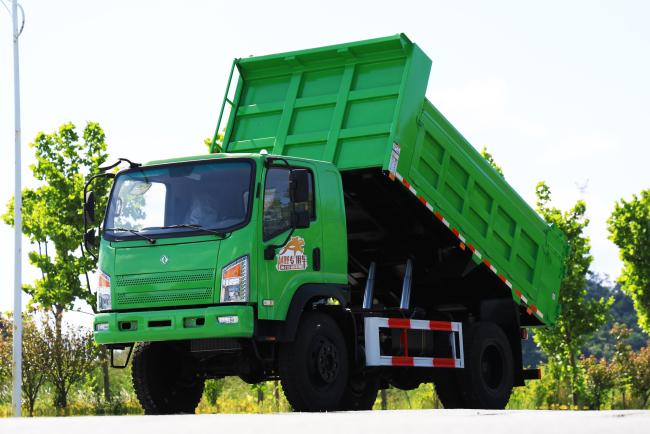

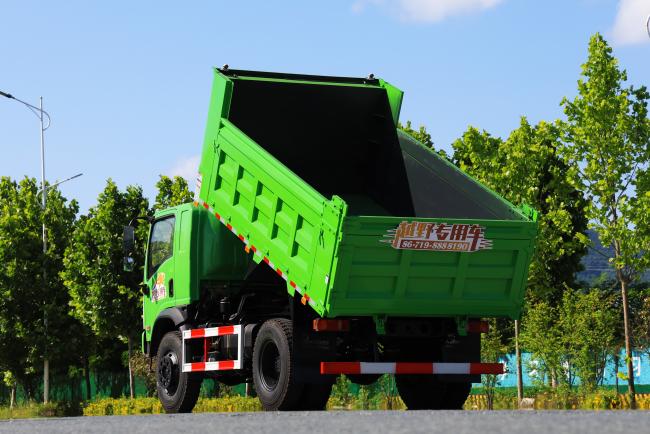

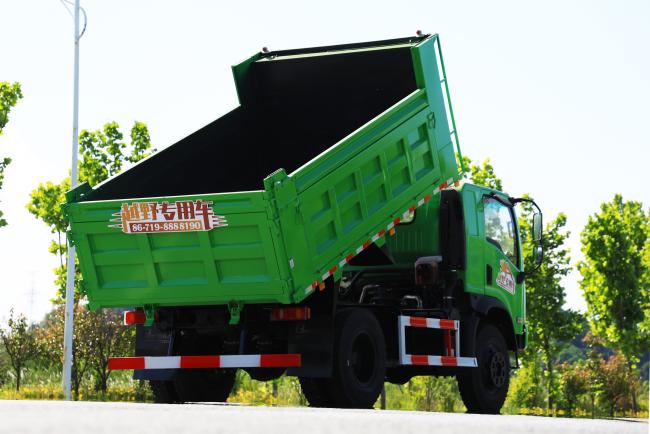

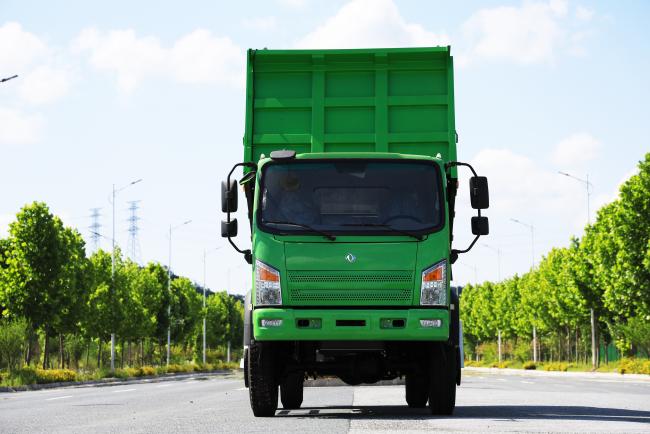

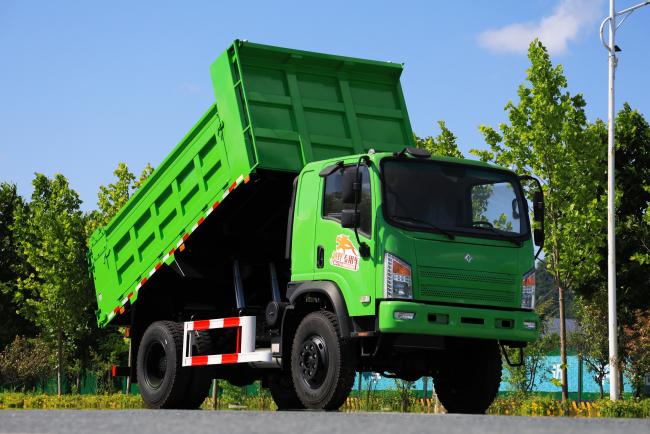

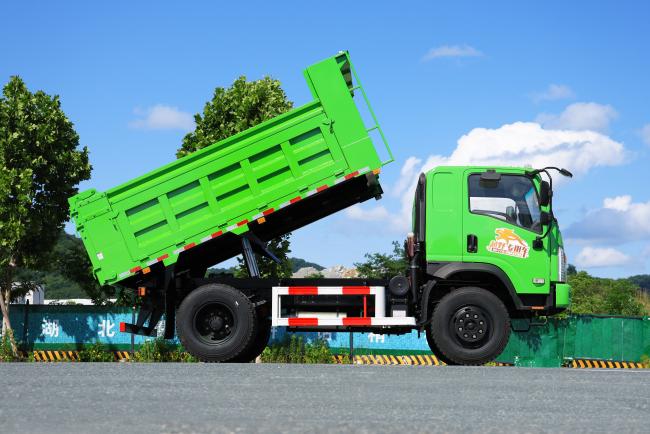

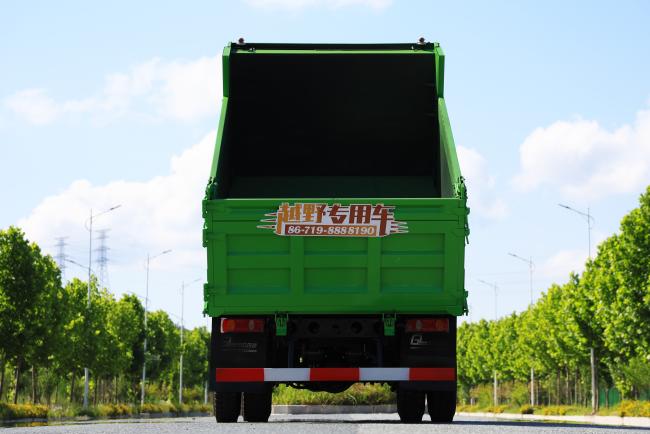

This 170 horsepower four wheel drive light dump truck has a compact and lightweight body, suitable for material transportation in mining and mountain forest areas.

Basic Configuration
Engine  B170 33
Gearbox Fast 5 speed manual transmission
Transfer Case High and low two speed range
Cab Dongfeng flat one and a half row cab with sleeping berth
Frame Double layer 860×232mm
Axles Front axle 2.7 ton / Rear axle 8 ton
Suspension Leaf spring 9/8 plus 10 pieces
Tire 9.00R20 (6 plus 1 spare tire)
Standard Accessories On board tools, fire extinguisher
Detailed  Parameters
Overall Vehicle Dimension 6370×2480×2650 mm
Cargo Box Dimension 3800×2200×(800+200) mm
Wheelbase 3300 mm
Track Width 1780/1840 mm
Gross Vehicle Weight 10700 kg
Curb Weight 6410 kg
Rated Load Capacity 3500 kg
Seating Capacity 2 to 3 persons
Fuel Tank Capacity 160 L
Max Power 125 kw
Torque 560N.m
Max Speed ≥85 km/h
Minimum Ground Clearance 280 mm
Maximum Wading Depth 620 mm
Approach Angle 21°
Departure Angle 16°

All configurations are for reference only. Actual specifications shall be subject to the real vehicle.
