Dongfeng 4WD 15m³ Class F Refrigerated Truck _ Fresh Aquatic Product Transport Fresh-Keeping Vehicle _ 2070 Cold Chain Transport Freezer Truck

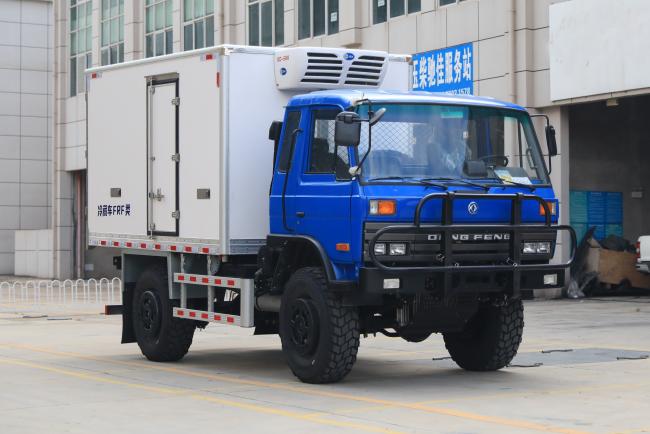

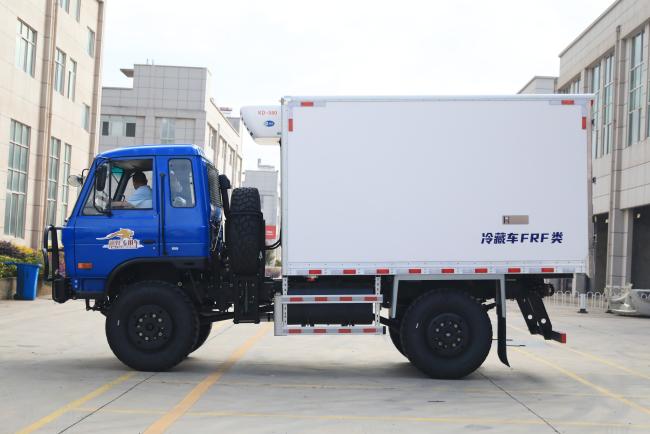

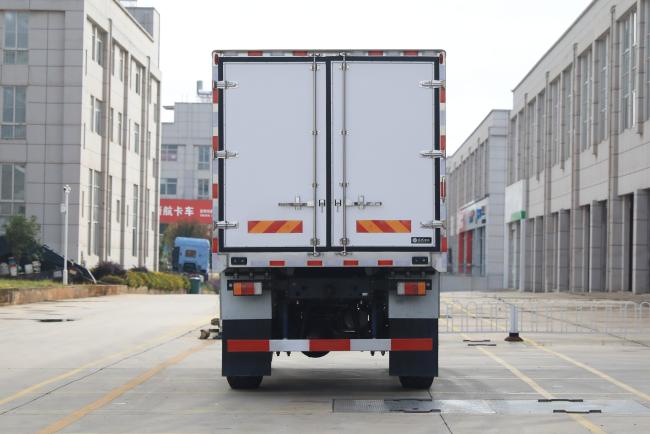

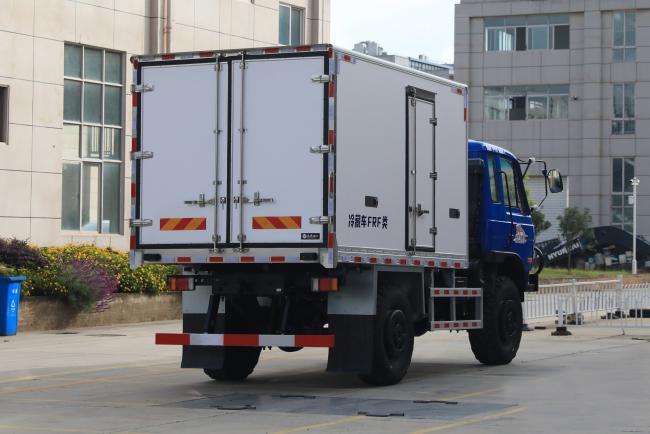

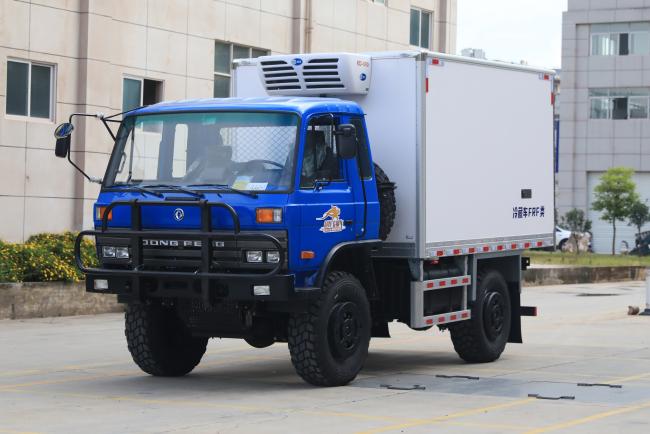

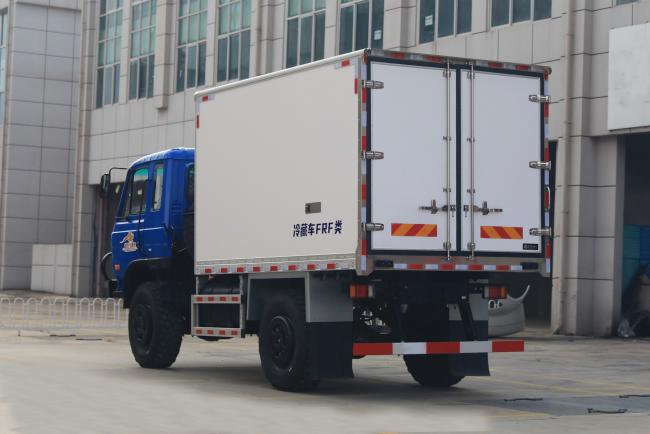

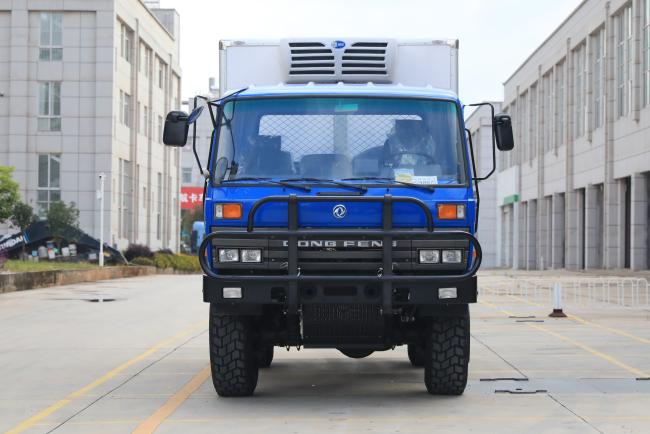

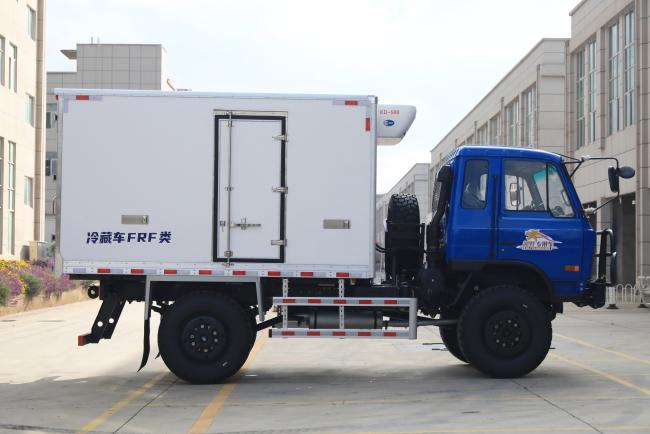

This Dongfeng 4WD 15 cubic meter refrigerated truck is built on the EQ2070 chassis. The refrigeration unit can be directly controlled from the cab, maintaining a minimum internal compartment temperature of -20°C. It is ideal for transporting aquatic products, meat, fruits, vegetables, and other goods. Adjustable compartment temperatures effectively preserve the freshness of various cargo types.
| Basic Configuration | |
|---|---|
| Engine | B190 33 |
| Gearbox | 5-speed manual transmission |
| Axles | Front axle 5 tons / Rear axle 5 tons |
| Cab | Dongfeng 153 half-row forward control cab |
| Tires | 12.5R20 (4 main tires + 1 spare tire) |
| Electrical System | 24V circuit system |
| Standard Accessories | Fire extinguisher, onboard tools, warning sign |

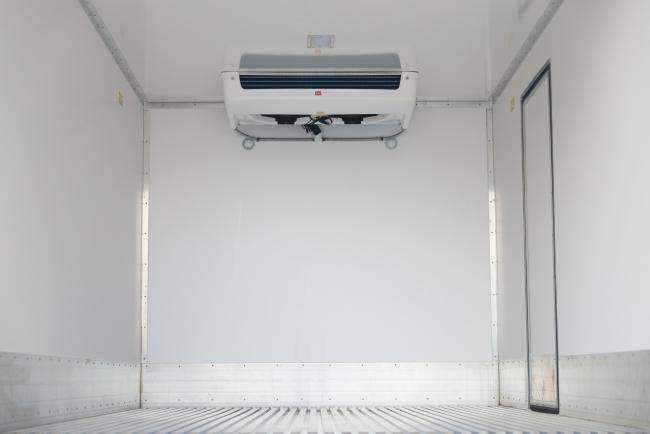

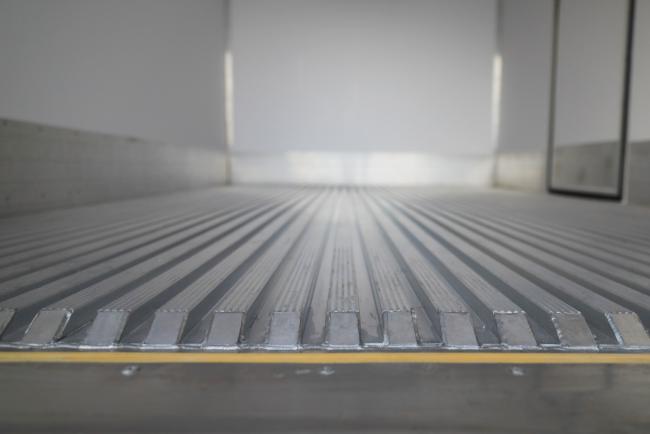

The compartment interior and exterior are clad with VK food-grade fiberglass skin, filled with 8cm thick high-density polyurethane foam insulation. Sub-frames are manufactured from G700 high-strength steel via electrophoretic painting. The floor features stainless steel checkered plate with aluminum alloy ventilation troughs, paired with a Kaida 580 refrigeration unit.
| Detailed Parameters | |
|---|---|
| Overall Vehicle Dimensions | 6790×2440×3495 mm |
| Internal Cargo Box Dimensions | 3600×2200×1900 mm |
| Wheelbase | 3600 mm |
| Front/Rear Track Width | 1876 / 1860 mm |
| Gross Vehicle Weight (GVW) | 9800 kg |
| Curb Weight | 5860 kg |
| Rated Payload | 3500 kg (off-road rated) |
| Seating Capacity | 3 persons |
| Maximum Power Output | 140 kW |
| Engine Displacement | 5.9 L |
| Maximum Speed | ≥90 km/h |
| Minimum Turning Diameter | 15 m |
| Wading Depth | 520 mm |
| Obstacle Clearance Height | 450 mm |
| Minimum Ground Clearance | 315 mm |
| Approach / Departure Angle | 35° / 26° |
| Fuel Tank Capacity | 210 L |
