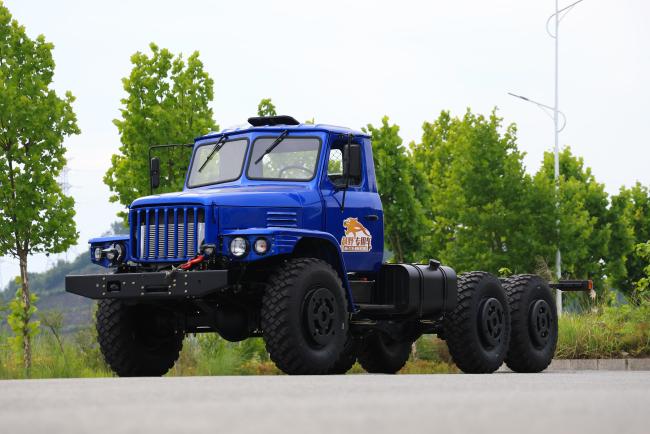

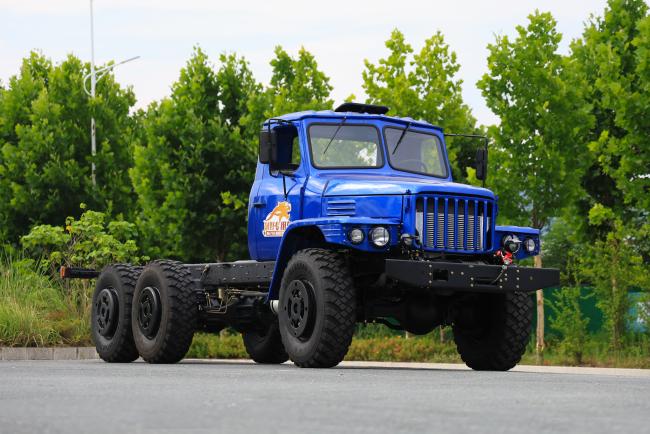

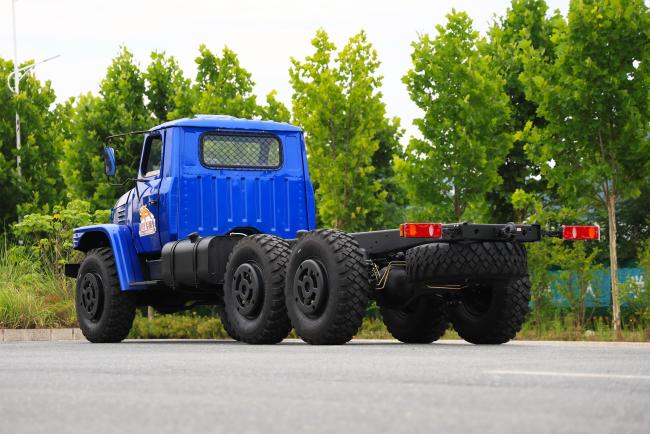

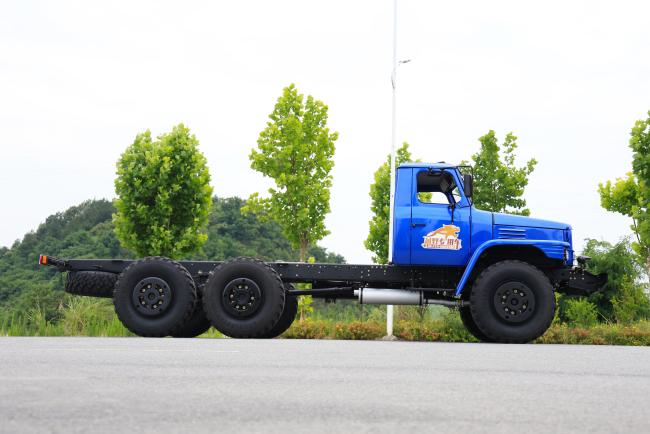

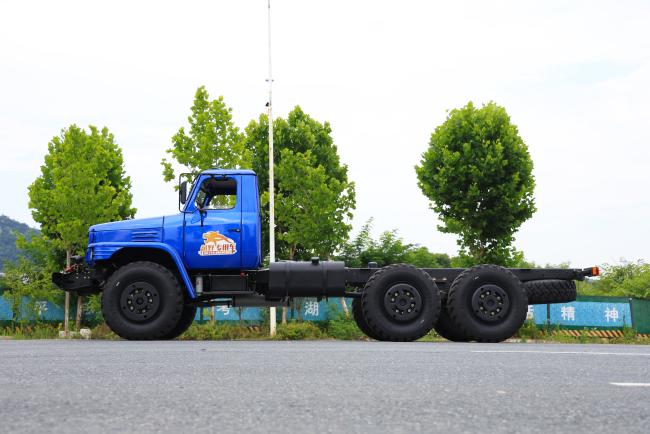

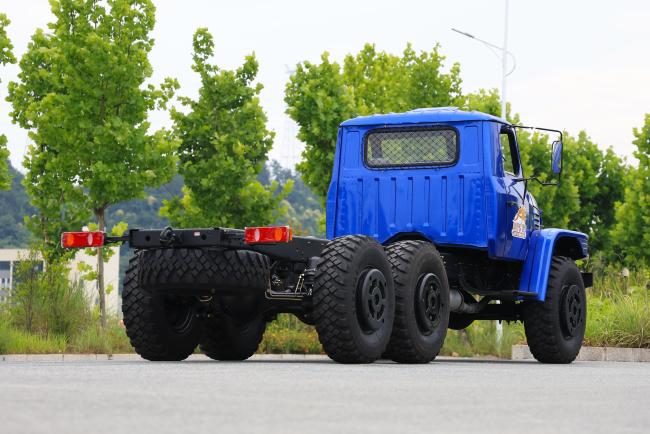

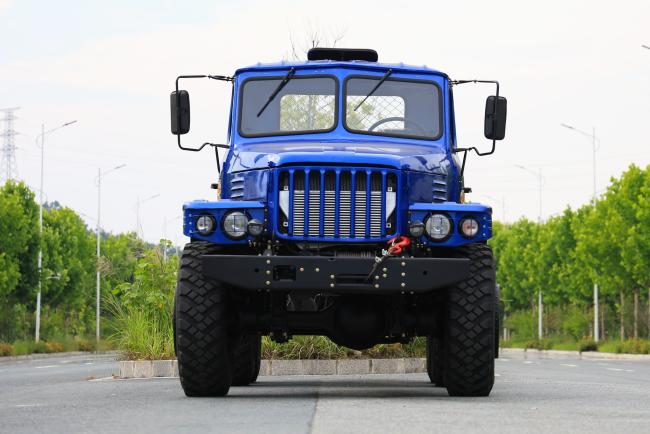

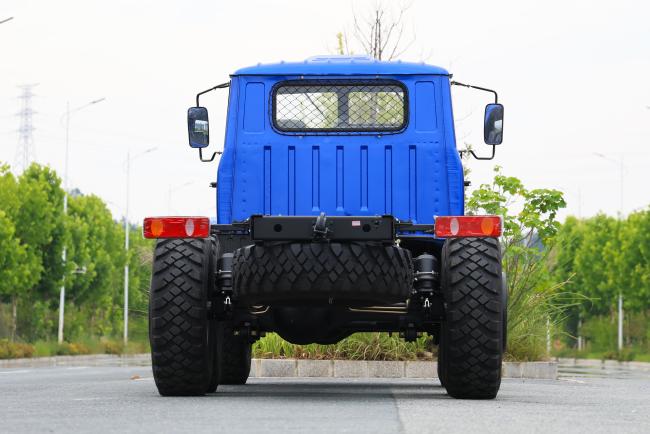

Dongfeng 6×6 Long Nose Single Row Off-Road Truck - Tipper Truck with Winch Model 2100
Price:
Pricing Tailored to Your Needs
MOQ:
1
Delivery Time:
5-7 working days; large orders depend on the factory's schedule.
Brand:
Dong Feng
Product Description
Long nose single row cab, large 300L fuel tank and 4800mm cargo box make it ideal for mining, mountain construction, farm transportation, rescue haulage in rough muddy roads across Africa and Southeast Asia. Stable load capacity, durable chassis, easy maintenance and customizable cargo box available.
| Parameter | |
|---|---|
| Drive Type | 6×6 |
| Engine | B190 33 |
| Transmission | 5-speed Manual |
| Transfer Case | 2-speed High-Low Range |
| Axles | 3.5T / 3.5T / 3.5T |
| Frame | 860×232mm |
| Wheelbase | 3650+1230mm |
| Tyres | 12R20 (6+1) |
| Max Power | 140kW |
| Displacement | 5880ml |
| Cab | Dongfeng Long Nose Single Row Cab |
| Suspension | 9/12-leaf Leaf Spring |
| Overall Dimension | 8010×2520×2760mm |
| Chassis Dimension | 7670×2355×2480mm (Max width at rear tire edge) |
| Chassis Modification Size | ≥4685mm |
| Cargo Box Dimension | 4800×2300×900mm |
| Gross Vehicle Weight | 10800kg |
| Curb Weight | 6800kg (complete vehicle) / 5680kg (bare chassis) |
| Front Overhang | 1214mm |
| Rear Overhang | 1916mm |
| Approach Angle | 28° |
| Departure Angle | 36° |
| Fuel Tank Capacity | 300L |
| Minimum Ground Clearance | 360mm |
| Wading Depth | 1225mm |
| Obstacle Crossing Height | 450mm |
| Frame Rear Top Surface Height from Ground | 1130mm |
| Maximum Speed | 85km/h |
| Track Width | 1960mm |
