Dongfeng EQ240 6x6 All Terrain Off-Road Truck Chassis - 170HP Diesel Engine - Mining Construction Africa Southeast Asia Export
Price:
Pricing Tailored to Your Needs
MOQ:
1
Delivery Time:
5-7 working days; large orders depend on the factory's schedule.
Brand:
Dong Feng
Product Description

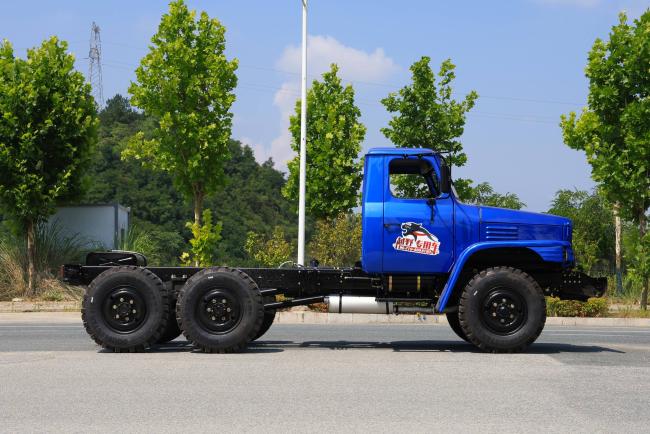

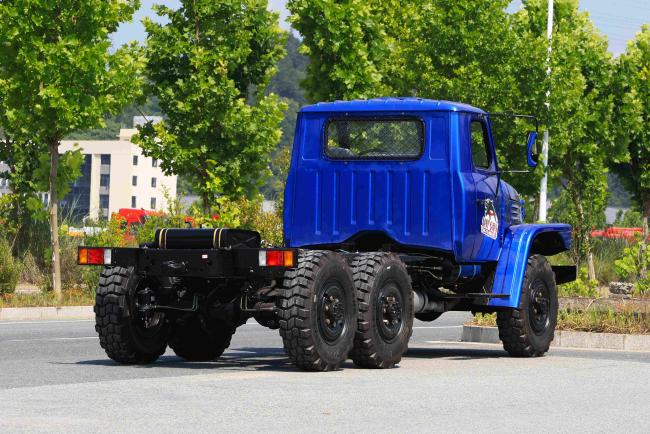

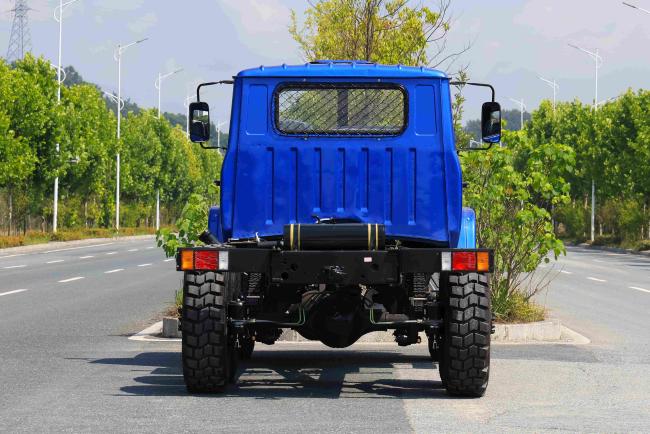

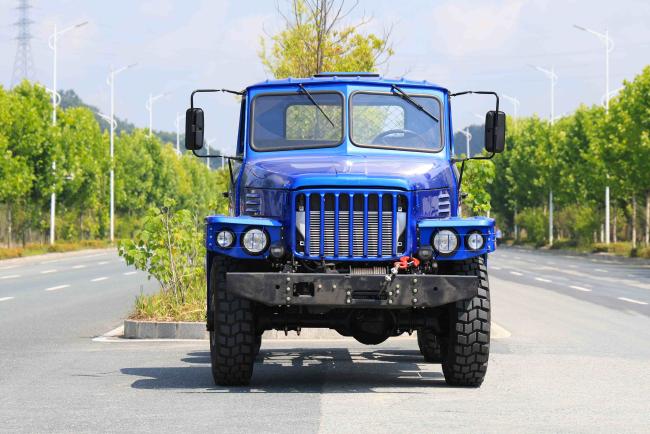

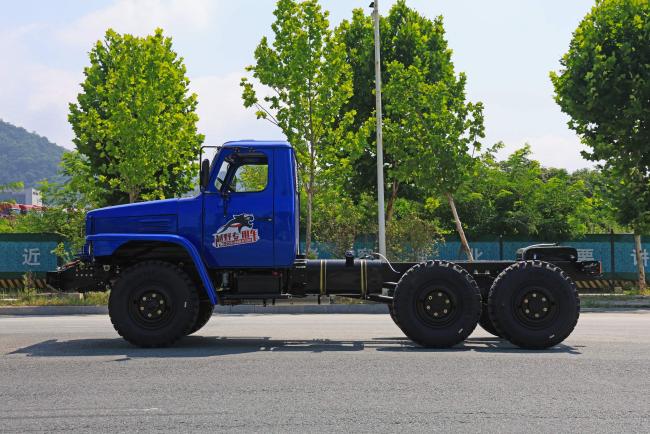

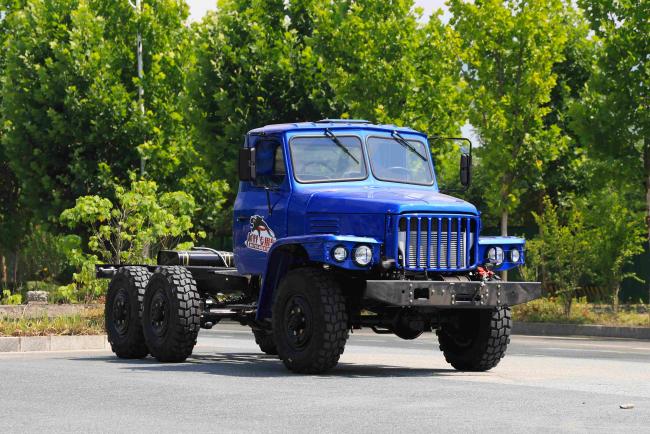

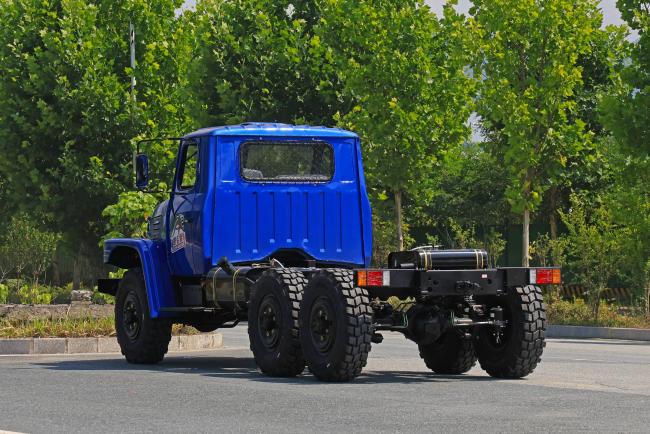

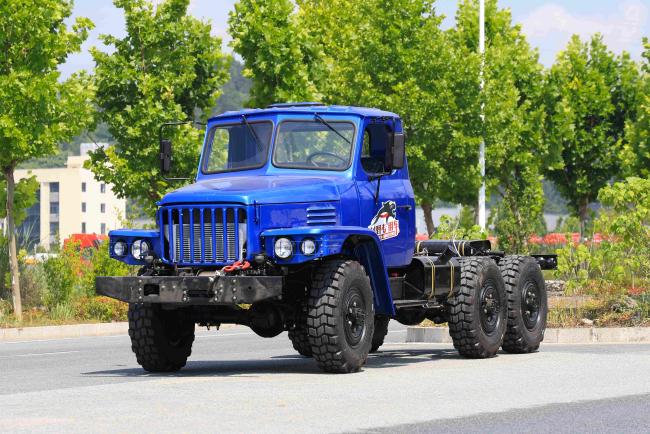

Dongfeng EQ240 pointed-cab 6x6 off-road chassis is developed for severe rough roads with full all-wheel drive for heavy-load refitting. Specially made for export to Africa, South America, Middle East and Southeast Asia. Dual fuel tanks extend mileage for sparsely populated remote areas.
| Specification | |
|---|---|
| Engine | 170HP |
| Transmission | Mechanical 5-speed Manual |
| Transfer Case | High & Low Two-speed |
| Axles | Front 2.5 Ton / Middle 2.5 Ton / Rear 2.5 Ton |
| Cab | Dongfeng Pointed Single-row Cab |
| Suspension | Leaf Spring 9/13 |
| Tires | 11R18 (6+1 spare tires) |
| Electrical System | 24V Electrical System |
| Optional Fitting | Air Conditioner |
| Standard Accessories | Water bucket, Oil bucket, Fire extinguisher, Vehicle service tools |
A front-mounted winch (max 44100N pulling force) is optional. 3540mm rear space fits cargo trucks, box vans and dump trucks.
| Specification | |
|---|---|
| Chassis Dimension | 6430×2380×2580mm |
| Modification Length | ≥3540mm |
| Wheelbase | 3190+1100mm |
| Track (Front/Middle/Rear) | 1774mm |
| GVW | 7950kg |
| Curb Weight | 4370kg |
| Towing Capacity | 2500kg |
| Seating | 3 persons |
| Max Power | 114kW/2800rpm |
| Max Torque | 490N·m/1700rpm |
| Top Speed | ≥87km/h |
| Min Turning Diameter | 18.8m |
| Fuel Consumption | 24L/100km |
| Max Gradeability | 60% |
| Parking Slope | 40% |
| Min Ground Clearance | 285mm |
| Approach/Departure Angle | 45° / 44° |
| Dual Fuel Tank | 140L + 70L |
Note: The configuration above is for reference only. Subject to actual vehicle specifications.
