UP-5030 Plastic Horizontal Flammability Tester , Building Materials Flammability Tester OEM ODM

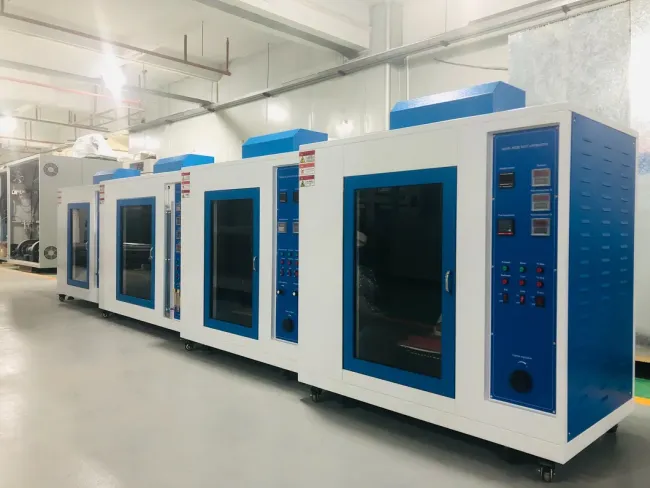

The UP-5030 Plastic Flammability Tester is a professional burning rate test apparatus designed for evaluating the combustion resistance of various materials including wire and cable insulation, printed circuit board materials, IC insulators, and other organic materials.
During testing, specimens are placed above the flame and subjected to 15-second burn cycles followed by 15-second extinguishing periods. This sequence repeats 5 times, after which the burning condition of the specimen is evaluated. The apparatus features programmable burn/extinguish timing and automatic operation.
This testing apparatus is compliant with VW-1 of UL1581, UL13, UL444, UL1655 and FT-1 of CSA standards.
- Vertical combustion chamber: Constructed per UL1581 standard dimensions (305×355×610mm internal)
- Horizontal combustion chamber: Built to UL1581 standard dimensions (305×355×610mm internal)
- Vertical spark nozzle: 20-degree nozzle angle with gas control valve
- Horizontal spark nozzle: 90-degree nozzle angle with gas control valve
- Vertical or horizontal nozzle selection capability
- Manual/automatic mode selection
- Automatic test termination upon reaching preset parameters
- Fuel requirement: Methane gas (customer-provided)
-
Inquiry ProcessTechnical requirement consultation, product recommendation, and competitive pricing based on customer specifications.
-
Customization ProcessTechnical drawings, product appearance references, and final solution confirmation for customized requirements.
-
Production & DeliveryManufacturing according to PO requirements, production progress updates, factory calibration, quality testing, and timely shipping.
-
Installation & SupportField installation services and comprehensive after-sales technical support.
Yes, we are professional manufacturers of environmental chambers, leather shoe testing equipment, and plastic/rubber testing equipment. All machines include a 12-month warranty with free maintenance. Extended warranty periods are available for international shipping. Technical support is provided via email, phone, or video consultation with solutions typically provided within 24-48 hours.
Standard machines in stock: 3-7 working days. Custom orders: 15-20 working days after payment confirmation. Expedited arrangements available for urgent requirements.
Yes, we provide both standard and fully customized testing machines according to customer specifications, including OEM and ODM services with custom branding.
Comprehensive English operation manuals and instructional videos are provided. Most equipment is shipped fully assembled, requiring only power connection. On-site installation assistance is available when necessary.
