UP-5011 Efficient User-friendly Izod Charpy Impact Notch Cutting Machine with Alloy Steel Cutting Tools
Price:
Negotiable
MOQ:
1 Unit
Delivery Time:
5-10 work days
Brand:
YOUBI
Product Description
UP-5011 Efficient and User-friendly Izod Charpy Impact Notch Cutting Machine
The UP-5011 plastic electric notch prototype machine is designed for creating precise samples used in impact toughness testing of non-metallic materials with IZOD and simply supported beam impact testing machines. This equipment is ideal for laboratories in research institutions, universities, and non-metallic materials manufacturing facilities.
Instrument Functions
This specialized sample preparation equipment generates standardized notches for impact toughness testing of non-metallic materials, compatible with both IZOD and simply supported beam impact testing methodologies.
Compliance Standards
- ISO180-2000 Plastics - Hard materials - Determination of IZOD impact strength
- GB/T1843-2008 Rigid plastics - IZOD impact testing machine
- JB/T8761-1998 Impact test machine for plastic IZOD
- ASTM D256-2010 Test Method for Determining IZOD Pendulum Impact Strength of Plastics
- ISO179-2000 Determination of Impact Strength of Plastic-Hard Material Simply Supported Beams
- GB/T1043-2008 Impact Test Method for Rigid Plastic Simply Supported Beam
- JB/T8762-1998 Plastic Simply Supported Beam Impact Testing Machine
Premium Alloy Steel Cutting Tools
Our imported European alloy steel cutting tools are manufactured from specialized alloy materials specifically designed for electric notch prototype machines. These tools produce standard sample notches for both cantilever and simple support beam impact tests.
- Hardness: Greater than HRC60
- Surface roughness: Less than Ra0.4
- Cutting edge angle: 30° ± 0.1°
- Repeatedly grindable with extended lifespan
- A-type cutter: 45° ± 0.2° r = 0.25 ± 0.05
- B-type cutter: 45° ± 0.2° r = 1.0 ± 0.05 (Optional)
- C-type cutter: 45° ± 0.2° r = 0.1 ± 0.02 (Optional)
Technical Specifications
| Worktable Stroke | > 90mm |
| Feed Speed | 30mm/min |
| Sampling Efficiency | More than 100 samples/10min |
| Feed | 0-2.5mm optional |
| Feed Stroke | 10mm |
| Notch Type | Customized according to tool specifications |
| External Dimensions | 450mm (L) × 390mm (W) × 360mm (H) |
| Power Supply | 220V, single-phase three-wire system |

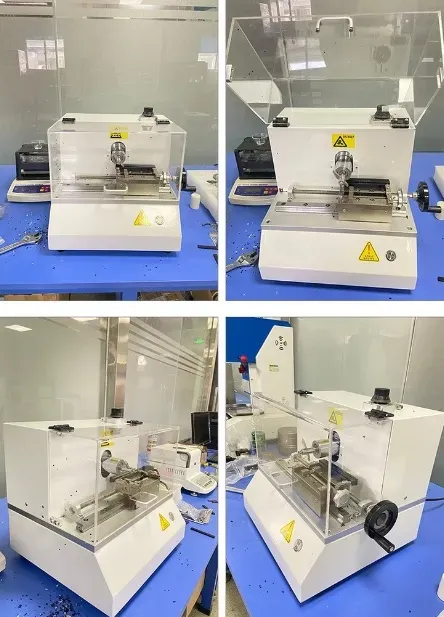

Product Images
Our Comprehensive Service
Customer Inquiry Process
We discuss testing requirements and technical details, suggest suitable products, and provide competitive pricing based on customer specifications.
Customization Process
We create detailed drawings for custom requirements, provide reference photos, confirm final solutions, and establish pricing.
Production and Delivery
We manufacture according to confirmed requirements, provide production updates, conduct factory or third-party calibration, and ensure timely delivery.
Installation and Support
We provide field installation services and comprehensive after-sales support.
Frequently Asked Questions
Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?
Yes, we are professional manufacturers of testing equipment in China. Every machine includes a 12-month warranty with free maintenance. For sea transportation, we extend this to 14 months. Technical support is available via email or video chat, with solutions provided within 24-48 hours.
What about the delivery term?
Standard machines in stock: 3-7 working days. Custom orders: 15-20 working days after payment. Urgent requirements receive special arrangements.
Do you accept customization services? Can I have my logo on the machine?
Yes, we offer both standard and customized machines according to your requirements, including OEM and ODM services with your logo.
How can I install and use the machine?
We provide English operation manuals and videos. Most machines are shipped fully assembled - simply connect power and begin operation. On-site installation assistance is available when necessary.
