UP-4034 Reliable Shoe Sole Flex Tester Machine 140 Times/Min For Leather / Footwear

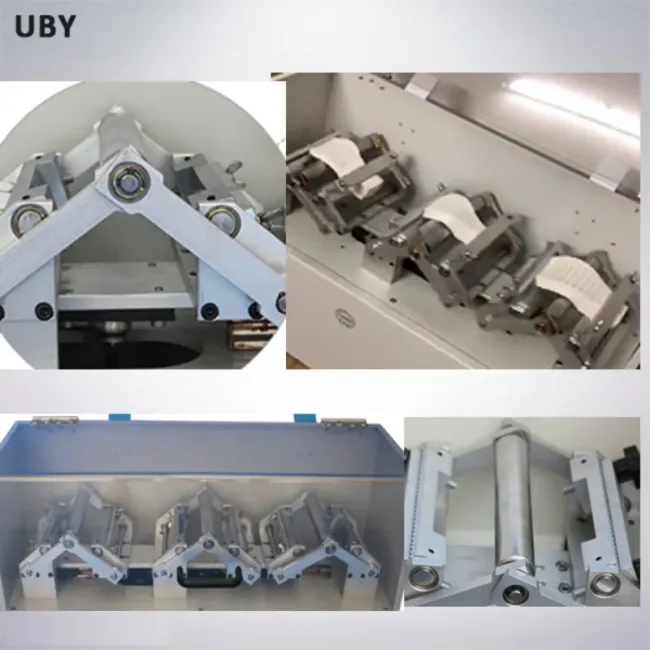

Footwear Sole Flexing Resistant Test Machine is used to measure the flexing resistance of shoe soles under continuous movement. Before test, plunge some holes at the maximum bending position, and mount specimen at both grips, one fixed, one movable. Specimen runs flexing owing to the movement of machine. After a certain test cycles, remove the specimen and check its difference of incision length.
- Plunge holes at maximum bending position and mount specimen at both grips
- One fixed grip and one movable grip configuration
- Specimen flexing through machine movement
- Measure incision length difference after specified test cycles
| Parameter | Specification |
|---|---|
| Vertical fixture width | 25 mm |
| Vertical fixture weight | 0.28~0.34 kg |
| Two vertical fixture distance | 6.35 mm |
| Reciprocating stroke | 75 mm |
| Reciprocating frequency | 30 cpm |
| Specimen closed angle | 60° |
| Specimen opening angle | 30° |
| Counter | 6-digital |
| Motor | 1/4 HP |
| Model | UP-4034 |
| Bending angle | 90±2° |
| Bending speed | 125-150 cpm |
| Diameter of mandrel | 30 mm |
| Width of grips | 144 mm |
| Display method | 6 digital LCD display |
| Dimensions | 95x42x55 cm |
| Weight | 126 kg |
| International Standards | Additional Standards |
|---|---|
| ISO 20344 8.4.2 | GB/T 20991 8.4.2 (section) |
| ISO 17707 | ISO 17694 |
| SATRA TM161 |
- Customer Inquiry: Discuss testing requirements, suggest suitable products, and provide quotes
- Specifications Customization: Create drawings and reference photos for customized requirements
- Production and Delivery: Manufacture according to confirmed requirements with progress updates
- Installation and After-Sales: Provide installation support and comprehensive after-sales service
Yes, we are one of the professional manufacturers of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment in China. Every machine purchased from our factory has 12 month warranty after shipment. We offer 12 months for FREE maintenance, extended to 14 months considering sea transportation. If your machine doesn't work, contact us via email or phone for troubleshooting assistance with solutions provided within 24 to 48 hours.
Standard machines in stock: 3-7 working days; No stock: 15-20 working days after payment; Urgent requirements receive special arrangement.
Yes, we offer both standard and customized machines according to your requirements, including OEM and ODM services with your logo.
We provide English operation manuals and videos via email. Most machines are shipped fully assembled - simply connect the power cable and start using. On-site installation assistance is available when necessary.
