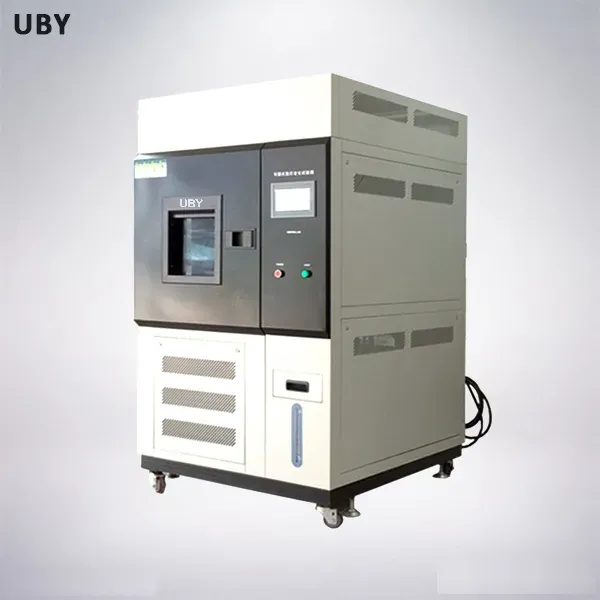

Xenon Aging Test Chamber with Xenon Long-Arc Lamp for Accelerated Weathering Testing -70°C~100°C and 30~98%RH
Xenon Accelerated Testing Chamber is designed to test products undergoing illumination, rain, condensation, temperature, humidity, wind, and other climatic changes. This aging tester is primarily used for testing non-ferrous metals, organic materials, rubber, plastics, and building materials. It provides essential data for evaluating product properties and performance to improve product quality.
| Model | UP-6117 |
|---|---|
| Inner Box Size (D×W×H) | 600*750*500mm |
| Outside Dimension (D×W×H) | 1100*1250*1750mm |
| Temperature and Humidity Range | -70°C~100°C; 30~98%RH |
| Temperature and Humidity Uniformity | ±2°C; ±3%RH |
| Rainfall Time | 1~9999min, adjustable |
| Rainfall Cycle | 1~240min, interval adjustable |
| Xenon Lamp Light | Xenon long-arc lamp, 6KW±10%, 290-800nm, 1000W/m²±200 |
| Heating/Humidifying Power | 2.0KW/2.0KW |
| Sample Spinning Machine Speed | 1~5r/min (adjustable) |
| Sample and Xenon Lamp Distance | 300~375mm |
| Box Material | Stainless Steel SUS304#/Cold-rolled steel with spray |
| Circulation System | Single cycle, centrifugal fan |
| Control and Cooling System | Germany KLOCKNER-MOELLER programmable controller |
| Gas Processing | Discharger for bad smell and harmful gas |
| Power | AC380V, three phase five wire, 10KW |
| Use Environment | 5°C~+30°C, ≤85%R.H |
- Filtering screen viewing window
- Moistureproof lamp
- Security device for circuit break
- High pressure of the compressor
- High temperature alarm
- Customer Inquiry Process: Discuss testing requirements and technical details, suggest suitable products, and provide pricing according to customer requirements.
- Specifications Customize Process: Create drawings for customized requirements, provide reference photos, confirm final solution and pricing.
- Production and Delivery Process: Manufacture according to confirmed PO requirements, provide production photos, conduct factory or third-party calibration, arrange packing and delivery.
- Installation and After-Sale Service: Provide field installation and comprehensive after-sales support.
Yes, we are one of the professional manufacturers of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment in China. Every machine purchased from our factory has a 12-month warranty after shipment. We offer 12 months for FREE maintenance, with an additional 2 months extension considering sea transportation. If your machine doesn't work, contact us via email or phone. We will diagnose the problem through conversation or video chat and provide solutions within 24 to 48 hours.
For standard machines in stock: 3-7 working days. For non-stock items: 15-20 working days after payment is received. Special arrangements can be made for urgent requirements.
Yes, we offer both standard and customized machines according to your requirements. We provide OEM and ODM services, including placing your logo on the machine.
We provide English operation manuals or videos via email. Most machines are shipped fully assembled - you only need to connect the power cable to start using them. If necessary, we can assist with on-site installation.
