Professional Stainless Steel SUS#304 UV Aging Test Chamber with Temperature Range Rt+10ºC~70ºC and Customizable Size and Color
Price:
Negotiable
MOQ:
1 Unit
Delivery Time:
5-15 work days
Brand:
YOUBI
Product Description
UP-6200 Professional Electronic UV Light Accelerated Aging Testing Chamber
The UP-6200 Professional Electronic UV Light Accelerated Aging Testing Chamber provides reliable aging test data for plastic and polymer products, enabling accurate prediction of weathering fastness and aging resistance. This facilitates formula screening and optimization across various industries including paints, inks, resins, plastics, printing and packaging, adhesives, automotive, cosmetics, metals, electronics, electroplating.
Design Standards
IEC61215, ASTM D4329, D499, D4587, D5208, G154, G53; ISO 4892-3, ISO 11507; EN 534; prEN 1062-4, BS 2782; JIS D0205; SAE J2020, etc.
Key Features
- Adjustable specimen thickness with fast, convenient installation
- Upward-rotating door design saves space and eliminates operational interference
- Unique condensation system compatible with tap water
- Long-life, easily maintainable heater positioned under water container
- Integrated truckles for easy mobility
- Computer programming with automatic alarm for incorrect operation or faults
- External water level controller for easy monitoring
- Irradiance calibrator extends lamp tube life (over 1600 hours)
- Bilingual Chinese and English instruction manual
- Available in three types: common, light irradiance controlling, and spraying
Technical Specifications
| Parameter | Specification |
|---|---|
| Internal Dimension (D×W×H) | 500×1300×500 mm |
| External Dimension (D×W×H) | 750×1400×1600 mm |
| Applicable Standard | GB/T16422, GB/T5170.9 |
| Temperature Range | R.T.+15°C~+70°C |
| Temperature Fluctuation | ±0.5°C |
| Humidity Range | ≥95% R.H. |
| Environmental Temperature for Use | +5°C~+35°C |
| Test Light Source | UVA, UVB UV light |
| Wave Length of Test Light Source | 280~400 nm |
| Center Distance between Sample and Tube | 50±2 mm |
| Center Distance Between Tubes | 75±2 mm |
| Material of Internal Case | Stainless steel with sanding polish |
| Material of External Case | Stainless steel with sanding polish or painting coated |
| Heating and Humidifier | Electric-heat type steam generator, heating and humidification |
| Operation Interface | Digital smart touch key input (Programmable) |
| Running Mode | Program/constant running type |
| Input | Black panel thermometer, PT-100 Sensor |
| Standard Configuration | 1 pc Stainless steel shelves |
| Safety Configuration | Protection of electric leakage, power outage when over-load, over-temperature protection, water short storage, ground lead protection |

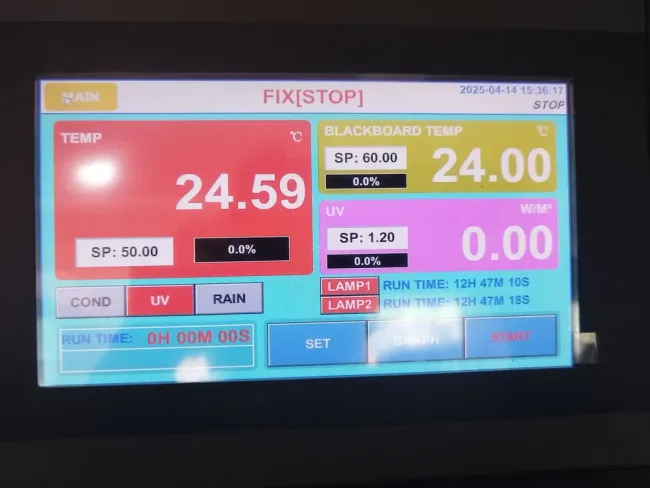

Product Images
Our Service Process
- Customer Inquiry: Discuss testing requirements, suggest suitable products, and provide competitive pricing
- Customization: Create technical drawings, provide reference photos, and confirm final specifications and pricing
- Production & Delivery: Manufacture according to confirmed requirements, provide production updates, conduct calibration, and arrange timely shipping
- Installation & Support: Provide on-site installation and comprehensive after-sales service
Frequently Asked Questions
Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?
Yes, we are a professional manufacturer of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment in China. Every machine includes a 12-month warranty after shipment, with free maintenance during this period. We extend an additional 2 months to account for sea transportation. For technical support, contact us via email or phone - we'll diagnose issues through conversation or video chat and provide solutions within 24-48 hours.
What about the delivery term?
Standard machines in stock: 3-7 working days. Custom orders: 15-20 working days after payment. We accommodate urgent requirements with special arrangements.
Do you accept customization services? Can I have my logo on the machine?
Yes, we offer both standard and customized machines according to your requirements. We provide OEM and ODM services, including adding your logo to the equipment.
How can I install and use the machine?
We provide English operation manuals and videos via email. Most machines ship fully assembled - simply connect the power cable to begin operation. We offer on-site installation assistance when necessary.
