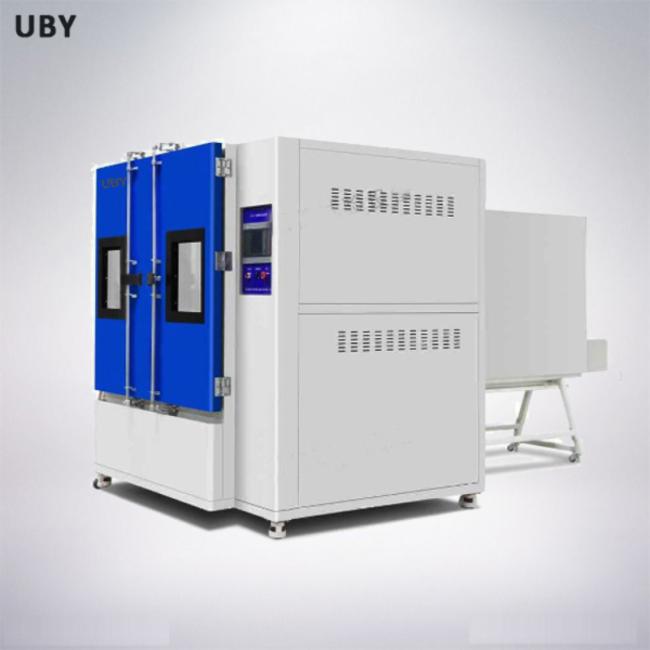

UP-6300 Laboratory IP Water Spray Test Chamber IEC60529 IPX3 IPX4
The Laboratory IP Water Spray Environmental Chamber is used to perform tests for evaluating the degree of protection provided by product enclosures. The level of protection against water ingress is represented by an IP code. All LIB test chambers fully comply with IEC 60529 (IP Code standard), ISO20653 and other international standards.

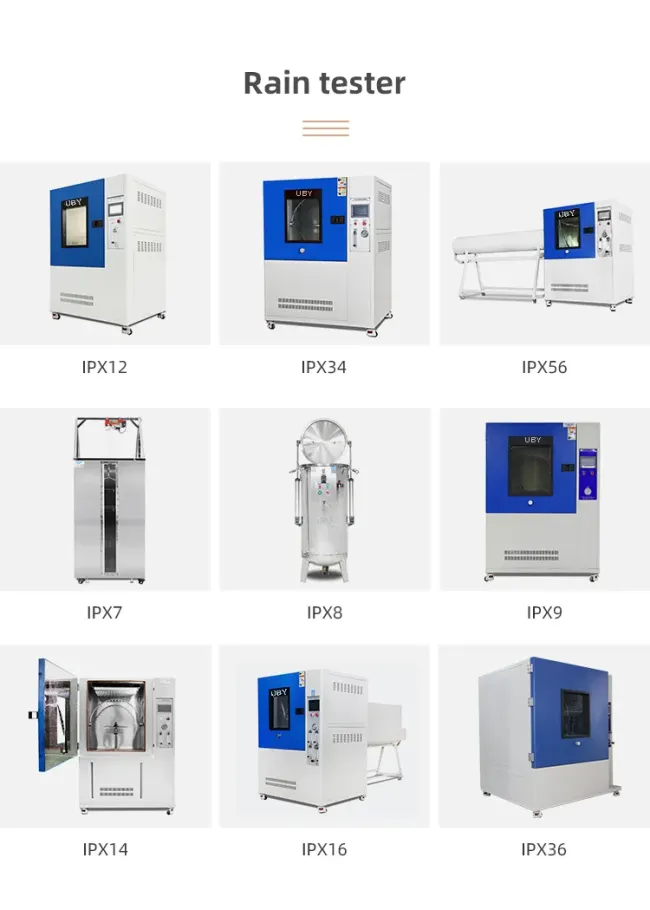

Our water ingress chambers have capabilities for IP testing including:
- IP X1/X2 (drip test)
- IP X3/X4 (spray test)
- IP X5/X6 (jet tube test)
- IP XX7/X8 (immersion test)
- IP X9K (high pressure jet test)
| Parameter | UP-6300-90 | UP-6300-140 |
|---|---|---|
| Internal dimensions (mm) | 900×900×900 | 1400×1400×1400 |
| Overall dimensions (mm) | 1020×1360×1560 | 1450×1450×2000 |
| Volume | 512 L | 1728 L |
| Drip tray size | 300×300 mm | 600×600 mm |
| Oscillating tube radius | 350 mm | 600 mm |
| Spraying hole diameter | φ0.4 mm | |
| Oscillating tube range | ±45°, ±60°, ±90°, ±180° (theoretical value) | |
| Turntable rotation speed | 1 r/min, adjustable | |
| Controller | Programmable color display touch screen controller | |
| Water pressure control | Flow meter | |
| Water supply system | Build-in water tank, Automatic water supply, Water purification system | |
| Exterior material | Steel Plate with protective coating | |
| Interior material | SUS304 stainless steel | |
| Standard | IEC 60529, ISO20653 | |
| Environmental conditional | 5ºC~+40 ºC ≤85% RH | |
- Protection against drip, spraying and splashing water
- IPX1, IPX2, IPX3 and IPX4 tests can be performed
- Oscillating tube and drip tray
- Programmable color display touch screen controller
- Ethernet and USB connectivity
- Automatic water supply system
- Large viewing window for observation
Discussing testing requirements and technical details, suggesting suitable products to customer for confirmation. Then quoting the most suitable price according to customer requirements.
Drawing related drawings to confirm with customer for customized requirements. Offering reference photos to show the product appearance. Then confirming the final solution and price with the customer.
Producing machines according to confirmed PO requirements. Providing production process photos. After completion, offering photos for customer confirmation. Performing factory calibration or third-party calibration as required. Testing all details and arranging packing. Delivering products according to confirmed shipping schedule.
Defining installation procedures for field deployment and providing comprehensive after-sales support.
Yes, we are one of the professional manufacturers of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment in China. Every machine purchased from our factory has a 12-month warranty after shipment. Generally, we offer 12 months for FREE maintenance. Considering sea transportation, we can extend 2 additional months for our customers.
If your machine doesn't work, you can send us an email or call us. We will try our best to identify the problem through conversation or video chat if necessary. Once we confirm the problem, a solution will be offered within 24 to 48 hours.
For our standard machines with available stock: 3-7 working days. For machines without stock: normally 15-20 working days after payment is received. For urgent requirements, we will make special arrangements.
Yes, we offer both standard and customized machines according to your requirements. We provide OEM and ODM services, including placing your logo on the machine.
Once you order testing machines from us, we will send you the operation manual or video in English version via email. Most machines are shipped fully assembled - you just need to connect the power cable and start using them. If necessary, we can also assist with on-site installation.
