Battery Needle Penetration Testing Machine with High-Temperature Resistant Steel Needle and Adjustable Penetration Speed for EV Battery Safety Compliance

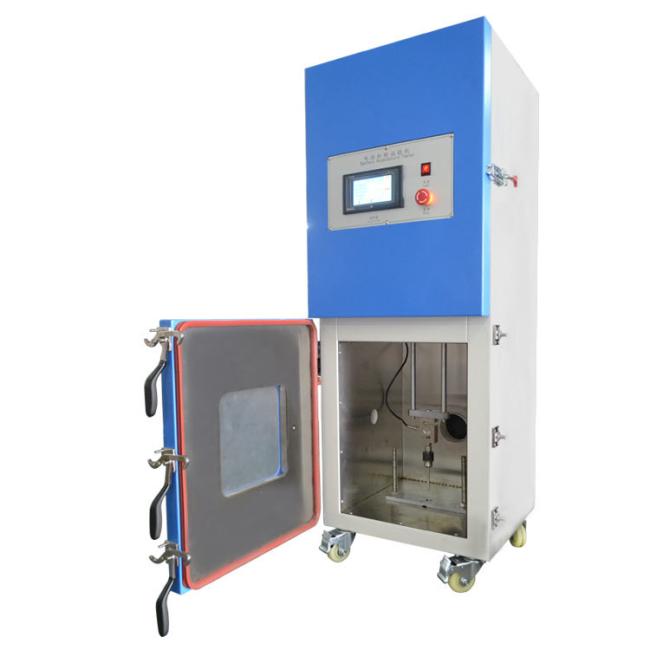

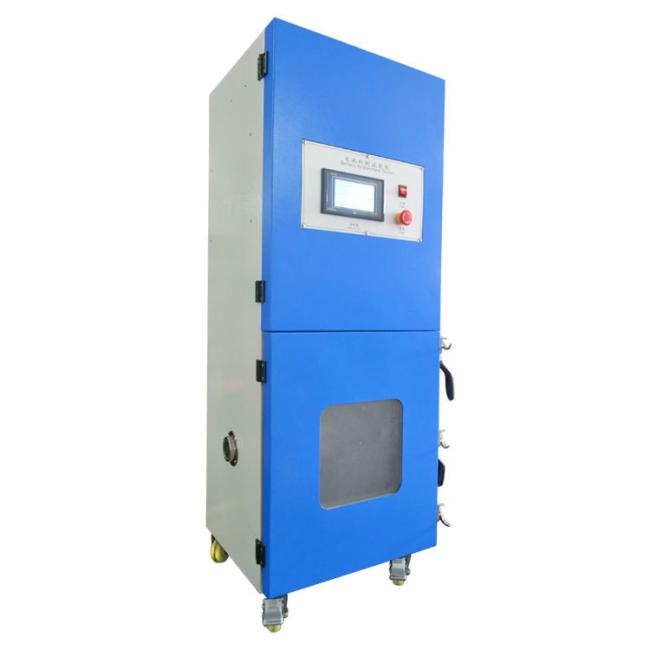

Battery Needle Penetration Testing Machine
- Heavy-duty structural frame designed for high-force mechanical abuse tests
- High-precision servo or hydraulic loading system for stable, repeatable results
- Real-time force, displacement, voltage, and temperature monitoring
- Enclosed explosion-proof chamber with multi-level safety interlocks
- Adjustable crush direction and penetration position for diverse test scenarios
- GB/T 31467.3 - Lithium-ion traction battery safety requirements (Crush & Nail Penetration)
- GB 38031 - Electric vehicles traction battery safety requirements
- IEC 62660-2 - Secondary lithium-ion cells for propulsion of electric vehicles
- IEC 62133 - Safety requirements for batteries used in portable devices
- UN 38.3 - Transportation testing for lithium batteries
- ISO 12405-4 - Electrically propelled road vehicles battery test specification
- SAE J2464 - Electric and Hybrid Vehicle REESS Safety and Abuse Testing
- EV power battery safety validation
- Automotive OEM battery qualification testing
- Battery R&D and design verification
- Third-party laboratory certification testing
- Battery module and pack compliance evaluation
Parameters
|
Parameter Item |
Specification |
|
Max Test Piece Size |
W200*D200*H200(mm) |
|
High Temperature Resistant Steel Needle |
ф2mm~ф8mm |
|
Outer Cabinet Size |
W920*D510*H1470(mm) |
|
Penetration Force |
10~500KG |
|
Control Box Size |
W330*D330*H1040(mm) |
|
Overall Dimensions |
W920*D510*H1470mm |
|
Machine Weight |
Approx. 180Kg |
|
Observation Window Size |
200*200mm (10mm thick double-layer explosion-proof glass) |
|
Working Voltage |
AC 220V/50HZ, Single-phase two-wire + protective ground wire |
|
Exhaust Fan Port |
Diameter 150mm |
|
Total Power |
0.5KW |
Company Profile
 |
PACKING AND TRANSPORTATION
FAQ
How to install and use the product?
The product is shipped with an operating instructions and video of English version.or we will send you an operation video to teach you how to install and use the product with English speaking. However, if you need us to teach you face to face, please let us know in advance.
How about the packing for machine, is it safely protected during transportation?
Our machine is packed by standard export wooden box, it won’t be damaged. We’ve delivered many testing machines abroad by sea or by air without damage.
