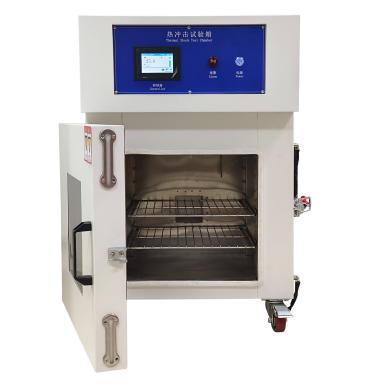

Battery thermal shock test chamber
Battery thermal shock test chamber
- GB/T 31485-2015 Safety Requirements and Test Methods for Traction Batteries for Electric Vehicles
GB/T 31241-2014 Safety Requirements for Lithium-Ion Batteries and Battery Packs for Portable Electronic Products
UN38.3 United Nations Manual of Tests and Criteria for the Transport of Dangerous Goods
IEC62133 Safety Requirements for Primary and Secondary Cells and Batteries Containing Alkaline or Other Non-Acid Electrolytes for Use in Portable Applications
UL 1642:2012 Standard for Lithium Batteries
Parameters
|
Parameter Item |
Specification |
|
Inner box dimensions |
W400xD400xH400mm |
|
Overall dimensions |
650x550x900mm |
|
temperature range |
RT~200℃ |
|
Temperature display accuracy |
0.1℃ |
|
Temperature stability |
±1.0℃ |
|
Temperature uniformity |
±2℃ |
|
heating-up time |
(5±1)℃／min |
|
Equipment weight |
75Kg |
|
power supply |
AC 220V |
|
power |
2KW |
Company Profile
 |
PACKING AND TRANSPORTATION
FAQ
How to install and use the product?
The product is shipped with an operating instructions and video of English version.or we will send you an operation video to teach you how to install and use the product with English speaking. However, if you need us to teach you face to face, please let us know in advance.
How about the packing for machine, is it safely protected during transportation?
Our machine is packed by standard export wooden box, it won’t be damaged. We’ve delivered many testing machines abroad by sea or by air without damage.
