Automatic 50KG Precious Metal Granulator Machine For Gold Silver Platinum Pellet Making
Price:
negotiable
MOQ:
1unit
Delivery Time:
10-15 working days
Brand:
OEM & ODM
Product Description
50KG Precious Metal Granulator With Agitator For Gold Silver Platinum Pellet Making

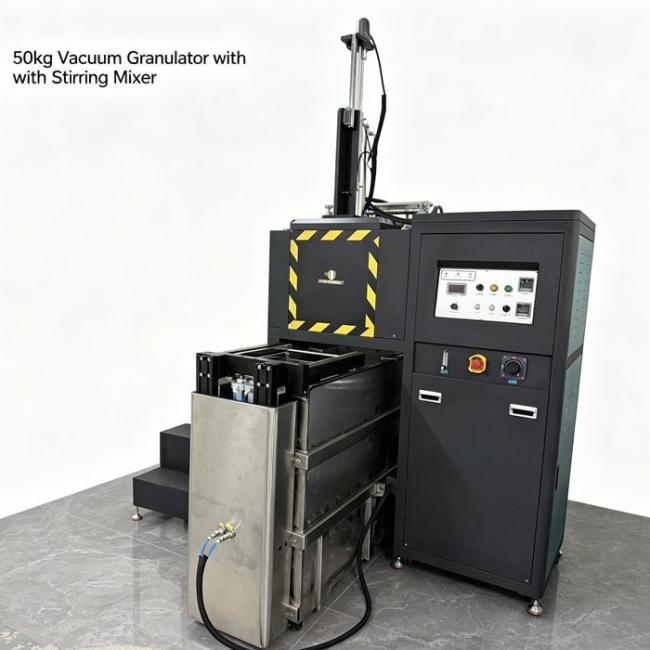

50kg Granulator with Stirring Mixer
1. Product Overview
Our 50kg Vacuum Granulator with Stirring Mixer is a premium fully automatic precious metal pellet production machine engineered by Sansongmelt for medium-to-large jewelry manufacturers, precious metal refineries, and bullion production factories. Different from ordinary atmospheric granulators, this model combines a sealed high-vacuum chamber and a built-in adjustable stirring mixer as its core dual advantages. It can produce flawless, uniformly spherical pellets from gold, silver, platinum, copper and all kinds of precious metal alloys. Equipped with a 60kW high-frequency induction heating system, it handles a maximum 50kg gold equivalent per melting batch, cutting repeated melting cycles and boosting daily production output greatly. The optional argon inert gas protection system further minimizes metal oxidation loss and extends crucible service life, which brings remarkable raw material cost savings for mass-production workshops.
2. Working Principle
- Charging & Induction Melting: Put precious metal raw materials into the crucible. The 60kW high-power induction heater rapidly melts all raw materials, while the ±1℃ precise PID temperature controller maintains a stable melting temperature.
- Full-process Stirring Homogenization: The built-in electric stirring mixer runs throughout the melting phase, evenly blending molten alloys to eliminate metal segregation and crush tiny air bubbles inside the liquid metal.
- High-Vacuum Deoxidation: The fully sealed chamber pumps out air to form a vacuum environment, isolating molten metal from oxygen and preventing dark oxidation spots on finished metal pellets.
- Water-cooled Pellet Forming: Under stable pressure, homogenized molten metal drips through precision nozzles and falls into the independent circulating water cooling tank, instantly solidifying into smooth, round precious metal beads.
- Automatic Cycle Completion: After granulation finishes, users can directly collect finished gold/silver pellets for subsequent jewelry casting or bullion processing.
Core Product Features
- Dual Core Design: Integrated sealed high-vacuum system + adjustable-speed internal stirring mixer, delivers ultra-high-purity, consistent spherical pellets
- Large Batch Capacity: 50kg gold equivalent per batch, 60kW fast heating shortens single-batch melting time to 10–15 minutes
- ±1℃ High Precision Temperature Control: Ensures stable molten metal fluidity and uniform pellet size, reducing defective metal waste
- Customizable Vacuum Grade: Standard vacuum range 10⁻¹ ~ 10⁻⁵ Pa, ultra-high vacuum (<10⁻⁵ Pa) available on demand
- Split Independent Water Cooling System: Supports 24-hour non-stop full-load production without overheat shutdown
- Optional Argon Gas Protection: Cuts precious metal oxidation loss and extends crucible lifespan to lower long-term consumable costs
- Fully Automatic Operation: One-key preset procedures for vacuum pumping, melting, stirring and granulation, requiring minimal manual supervision
- Wide Metal Compatibility: Works perfectly with gold, silver, platinum, copper and all precious metal alloys
Standard Technical Parameters
3. Standard Technical Parameters
| Item | Specification | Notes |
|---|---|---|
| Model No. | SSM-GV50 | Sansongmelt exclusive model, customizable |
| Product Name | 50kg Vacuum Granulator with Stirring Mixer | For Precious Metal Round Pellet Production |
| Rated Capacity | 50kg (Gold Equivalent) | Standard melting benchmark |
| Power Supply | 380V, 50/60Hz, 3 Phase | Customizable voltage upon request |
| Rated Power | 60kW | High-frequency induction heating module |
| Max. Working Temperature | 1600°C | Covers all common precious metals & alloys |
| Temperature Control Accuracy | ±1°C | PID closed-loop constant temperature control |
| Vacuum Degree | 10⁻¹ ~ 10⁻⁵ Pa; Ultra-high vacuum <10⁻⁵ Pa optional | Customizable vacuum standard |
| Cooling System | Split circulating water cooling with independent water tank | Continuous heat dissipation for long-hour operation |
| Stirring System | Built-in electric stirring mixer with adjustable rotation speed | Standard full-set configuration |
| Optional Accessory | Argon inert gas protection device | Minimize metal oxidation & save crucible cost |
| Single Batch Melting Time | 10–15 mins (50kg gold) | Varies based on raw metal condition |
| Main Machine Overall Size | 1200 × 800 × 1800 mm | Estimated dimension, fully customizable |
| Matching Water Tank Dimension | 1160 × 500 × 750 mm | Standard supporting water tank |
| Net Weight of Main Unit | Approx. 350kg | Weight excludes spare parts & accessories |
| Applicable Raw Materials | Gold, silver, platinum, copper, precious metal alloys | For jewelry raw material & investment bullion production |
Disclaimer: The above parameters are for reference only. For detailed specifications, custom configurations and complete technical documents, please contact our professional sales team for further consultation.
4.Application Areas
- Jewelry manufacturing and processing factories
- Precious metal recycling and refining centers
- Metal casting and molding workshops
- Metallurgical and industrial processing enterprises
- Goldsmith workshops and precious metal production plants
- Investment bullion and metal ingot production
- Laboratory and small-scale industrial melting
Why Choose SansongMelt?
1. Custom Melting & Casting Solutions
We provide one-stop, tailored melting and casting solutions for your production needs, from equipment selection to process guidance.
2. 2-Year Warranty
We offer an industry-leading 2-year warranty for all equipment — 1 year longer than most competitors, protecting your investment long-term.
3. Strong 24/7 After-sales Support
Our professional after-sales team is available online 24 hours a day to solve your problems quickly and minimize production downtime.
4. Factory Direct Price
As a direct manufacturer, we eliminate middleman markup to offer you competitive, preferential prices.
5. Fast & Reliable Delivery
Sufficient inventory of all melting equipment ensures short lead times, so you receive your machines as soon as possible.
6. AAAAA Enterprise Qualification
We hold the government-issued AAAAA enterprise title, proving our outstanding strength and credibility in the industry.
7. Strong R&D Team
Our R&D team is composed of top industry experts, committed to delivering leading and customized technical solutions.
8. ISO / CE / SGS Certified
All machines are certified by professional, authoritative bodies (ISO, CE, SGS), guaranteeing reliable quality and compliance with global standards.
Contact Us
Ready to upgrade your precious metal pellet production line and cut down raw material loss effectively?
Send us an inquiry right now to get exclusive factory price, free machine blueprint drawings, real gold & silver pellet samples and personalized production plans matched to your daily production capacity. Our professional sales team will reply to your message within 24 hours and solve all your equipment questions.
Send us an inquiry right now to get exclusive factory price, free machine blueprint drawings, real gold & silver pellet samples and personalized production plans matched to your daily production capacity. Our professional sales team will reply to your message within 24 hours and solve all your equipment questions.
We look forward to cooperating with you.
