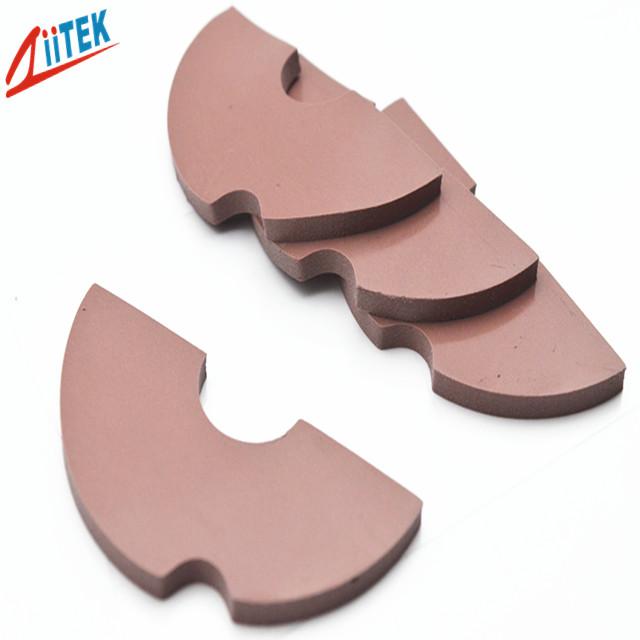

Thermal Insulation Heating Pad Pink Thermal Conductive Silicon Pad 3.0K/MK For LED Street Light
Thermal Insulation Heating Pad Pink Thermal Conductive Silicon Pad 3.0K/MK For LED Street Light
The TIF180-30-50S is a high performance and compatible non-silicone material of the thermal conductive interface materials. Their flexibility and elasticity make them suited to the coating of the very uneven surfaces. Heat can transmit to the metal housing or dissipation plate from the separate elements or even the entire PCB, which in effect enhances the efficiency and life-time of the heat-generating electronic components.
Features:
> Good thermal conductive: 3.0W/mK
> Naturally tacky needing no further adhesive coating
> Soft and Compressible for low stress applications
> Available in varies thickness
> UL recognized
> Broad range of hardnesses available
> Moldability for complex parts
Applications:
> Cooling components to the chassis of frame
> Set Top Box
> Car Battery & Power Supply
> Charging Pile
> LED TV/ Lighting
> Graphics Card Thermal Module
> CPU
> Display card
> Mainboard/mother board
> Notebook
> Power supply
| Typical Properties of TIF®180-30-50S Series | ||
| Color | Pink | Visual |
| Construction | Ceramic filled silicone elastomer | ****** |
| Thickness Range(inch/mm) | 0.020~0.20inch(0.5mm~5.0mm) | ASTM D374 |
| Density(g/cc) | 3.0 g/cc | ASTM D792 |
| Hardness | 45 Shore 00 | ASTM 2240 |
| Recommended Operating Temperature(℃) | -40 to 160℃ | ****** |
| Dielectric Breakdown Voltage | >5500 VAC | ASTM D149 |
| Dielectric Constant @1MHz | 5.0 | ASTM D150 |
| Volume Resistivity | ≥1.0X1012Ohm-meter | ASTM D257 |
| Flame rating | 94 V-0 | UL E331100 |
| Thermal conductivity | 3.0W/m-K | ASTM D5470 |
Standard Sheets Sizes:
8" x 16"(203mm x 406mm) 16" x 18"(406mm x 457mm)
TIF™ series Individual die cut shapes can be supplied.
Peressure Sensitive Adhesive:
Request adhesive on one side with "A1" suffix.
Request adhesive on double side with "A2" suffix.
Reinforcement:
TIF™ series sheets type can add with fiberglass reinforced.
