Heat Sinking Heat Conductivity Materials , Thermally Conductive Filler Perfect Performance

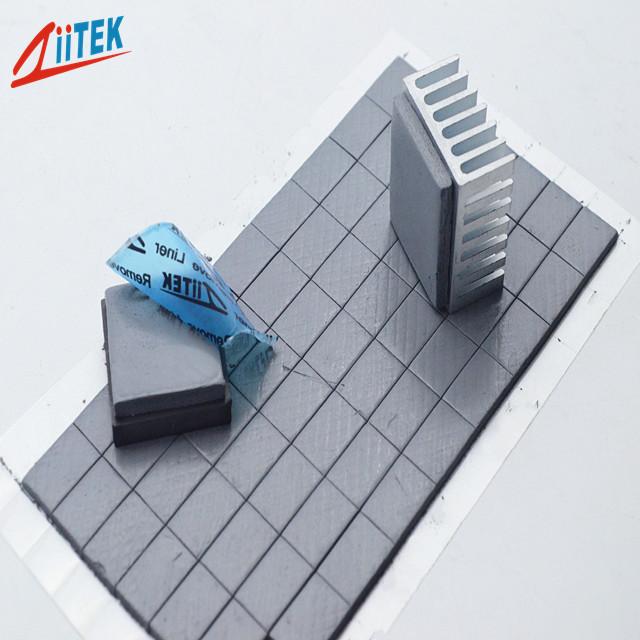

  The TIF360 is a silicone based, thermally conductive gap pad. Its unreinforced construction allows additional compliancy. This product has low hardness is conformable and is electrically isolating. The low modulus characteristic of the product offers optimal thermal performance with the ease of handling
Features:


>  Good thermal conductive:  2.8 W/mK

>  Naturally tacky needing no further adhesive coating
>  Soft and Compressible for low stress applications
>  Available in varies thickness

Applications:

>  RDRAM memory modules

> Cooling components to the chassis of frame
> High speed mass storage drives
> Heat Sinking Housing at LED-lit BLU in LCD
> LED TV and LED-lit lamps

>  Micro heat pipe thermal solutions
>  Automotive engine control units
>  Telecommunication hardware
>  Handheld portable electronics
>  Semiconductor automated test equipment (ATE)

Standard Thicknesses:


0.010" (0.25mm)       0.020" (0.51mm)       0.030" (0.76mm)       0.040" (1.02mm)       0.050" (1.27mm)       0.060" (1.52mm)       0.070" (1.78mm)       0.080" (2.03mm)       0.090" (2.29mm)       0.100" (2.54mm)       0.110" (2.79mm)       0.120" (3.05mm)       0.130" (3.30mm)       0.140" (3.56mm)       0.150" (3.81mm)       0.160" (4.06mm)       0.170" (4.32mm)       0.180" (4.57mm)       0.190" (4.83mm)       0.200" (5.08mm)
Consult the factory alternate thickness.

Standard Sheets Sizes:


8" x 16"(203mm x 406mm)   16" x 18"(406mm x 457mm)
TIF™ series Individual die cut shapes can be supplied.

Packaging Details & Lead time



The packaging of thermal pad

1.with PET film or foam-for protection

2. use Paper Card To Separate Each Layer

3. export carton inside and outside

4. meet with customers' requirement-customized



Lead Time :Quantity(Pieces):5000

Est. Time(days): To be negotiated
