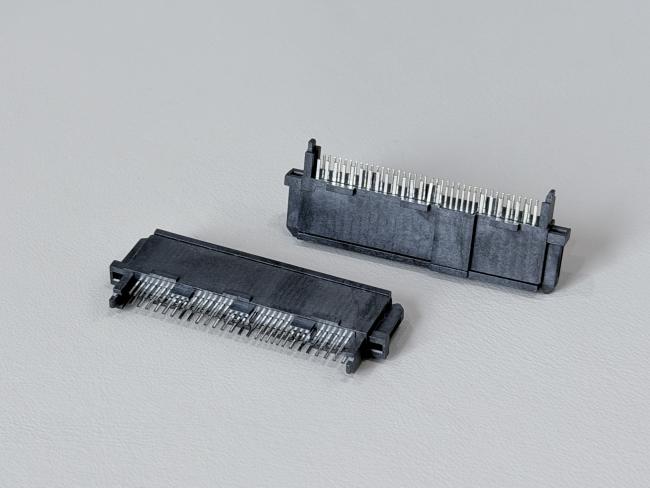

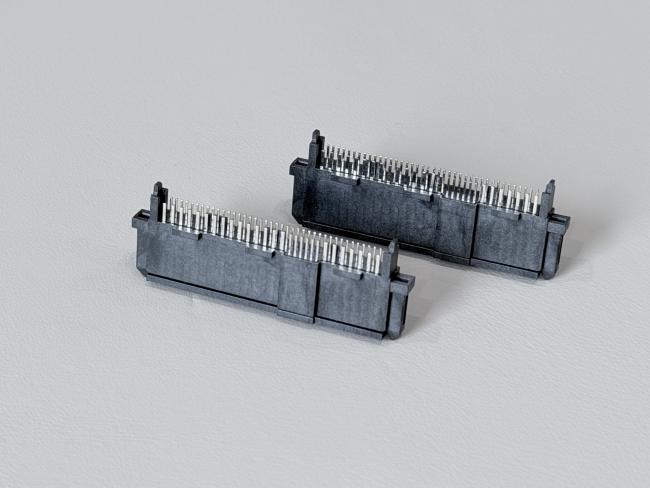

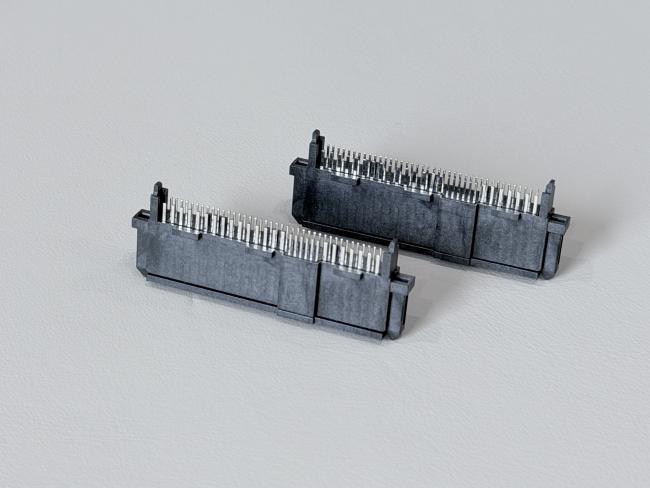

SAS 68Pin Female 180° Wire to Board Connector 30u'' Gold Plated High-Speed Signal Transmission PCB Electronic Connector for Server and Storage Devices
The SAS 68Pin Female 180° Wire-to-Board Connector delivers high-speed, stable signal transmission for servers, RAID systems, and high-density storage equipment. Featuring 30 micro-inch gold plating on the contacts and a 50 micro-inch nickel base layer, it ensures superior conductivity, corrosion resistance, and long-term durability.
Manufactured with precision molds, automated assembly, and in-house electroplating lines, our factory guarantees tight dimensional control and reliable quality. Each connector undergoes electrical performance, insertion durability, and thermal testing to meet international standards.
Our production facilities support custom designs, including variations in pin count, pitch, angle, and plating thickness, ensuring compatibility with multiple PCB layouts and cable assemblies.
⚠️ Notes
- Avoid excessive mechanical stress and high-temperature soldering to protect gold plating.
- Store connectors in a dry, dust-free environment to maintain performance.
- Verify alignment before insertion to prevent PCB or terminal damage.
- Custom packaging and labeling are available for OEM/ODM orders.
| Item | Specification |
| Product Name | SAS 68Pin Female Right Angle Connector |
| Type | Wire-to-Board, SMT Mount |
| Contact Material | Copper Alloy with Gold Plating (30μ" Au) |
| Housing Material | High-Temperature Thermoplastic, UL94V-0 Rated |
| Pitch | 0.8 mm |
| Rated Current | 1.0 A per Pin |
| Rated Voltage | 30 V AC/DC |
| Insulation Resistance | ≥1000 MΩ at 500 V DC |
| Contact Resistance | ≤30 mΩ at 100 mA |
| Operating Temperature | –40 °C ~ +105 °C |
| Application | Server, Storage, PCIe Card, Data Center Equipment |
