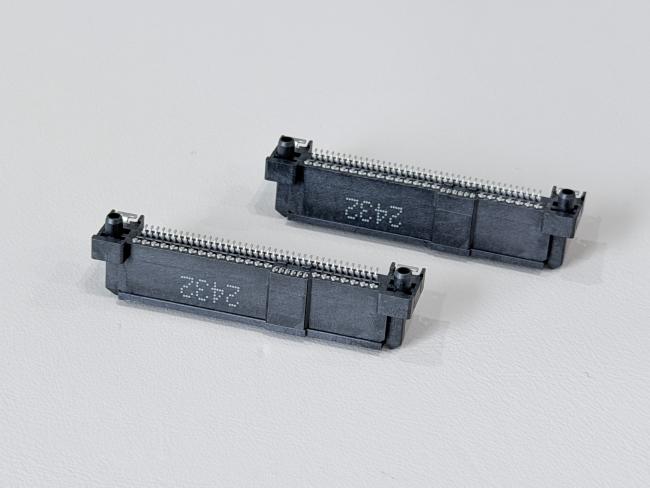

68Pin SAS Female SMT Type PCB Connector with 30u" Gold Plating – Reliable Signal Transmission Connector
The SAS 68Pin Female SMT Connector is designed for high-speed, stable signal transmission in enterprise-level servers, RAID systems, and data storage equipment. With 30 micro-inch gold plating on contact terminals and precision-engineered phosphor bronze materials, it guarantees excellent conductivity, corrosion resistance, and long-term reliability.
Manufactured by Dongguan Shuangzhuo Electronics Technology Co., Ltd., the connector is produced through fully automated stamping, injection molding, and electroplating processes. Our factory operates independent laboratories for plating thickness verification, electrical performance, and mechanical testing, ensuring every product meets international reliability and durability standards.
The SMT design allows for seamless automated PCB assembly, reducing space consumption and ensuring consistent soldering quality. OEM/ODM customization is available, including pin count, plating thickness, angle, and packaging options, to fit specific design requirements.
⚙️ Applications
- Servers and RAID controller systems
- Data storage and transmission modules
- PCIe and SAS interface devices
- Industrial automation control systems
- Cloud computing and data centers
- Communication equipment and embedded systems
⚠️ Notes
- Avoid excessive soldering heat and mechanical stress to preserve gold plating integrity.
- Store in a dry, dust-free environment with anti-static protection.
- Ensure accurate alignment before PCB mounting to prevent terminal deformation.
- Custom configurations available for specific signal transmission needs.
| Item | Specification |
| Product Type | SAS 68Pin Female 06 SMT Connector |
| Mounting Type | SMT (Surface Mount Technology) |
| Pitch | 1.27mm |
| Contact Material | Phosphor Bronze (C5191-H) |
| Housing Material | LCP G/F Black UL94V-0 |
| Plating | Gold 30u’’ on contact area, Nickel 50u’’ underlayer, Matte Tin 80u’’ on solder tail |
| Rated Current / Voltage | 1.5A @ 40VAC |
| Contact Resistance | ≤30mΩ |
| Insulation Resistance | ≥1000MΩ (500VDC) |
| Withstand Voltage | 500VAC / 1 minute |
| Mating Force | ≤59N |
| Unmating Force | ≥12N |
| Durability | 500 mating cycles (EIA364-09) |
| Operating Temperature | -20°C ~ +85°C |
| Salt Spray Test | 48 hours (gold-plated area) |
| Environmental Compliance | HF + RoHS 2.0 |
