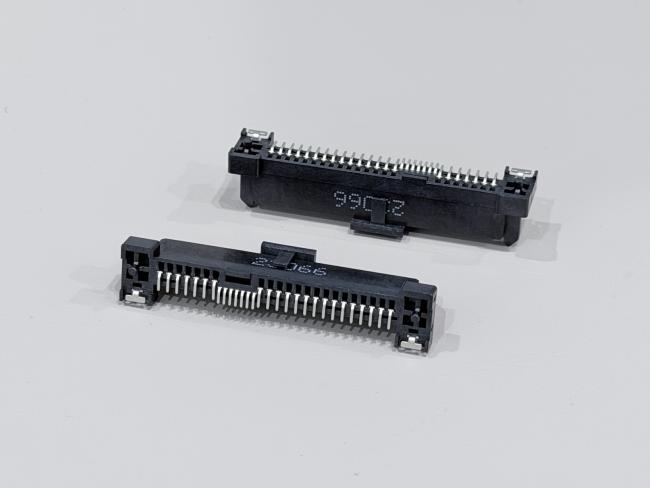

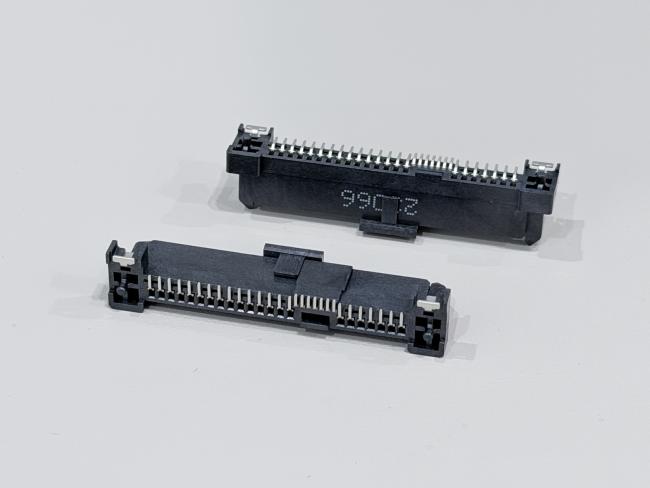

SAS 29P Female Connector, SMT, Gold-Plated 30U", High Durability for Data and Power Transmission, RoHS Compliant
• Free samples available for quality evaluation.
• Support for both OEM & ODM customization.
• Trade Terms: EXW, FOB, CIF, CPT, etc.
This high-performance SAS 29P Female Connector is designed for applications that require reliable data and power transmission. Manufactured with Surface Mount Technology (SMT), it provides efficient integration into high-density circuit boards. The connector features gold-plated contacts (30U") for superior conductivity and matte tin plating (80U") on the soldering area for enhanced durability and resistance to corrosion. It is ideal for industries such as automotive, server data transmission, and telecommunications, offering robust mechanical and electrical properties for high-reliability connections. It complies with RoHS2.0 standards, ensuring minimal environmental impact.
| Connector Type | SAS 29P Female Connector |
| Mounting Type | SMT (Surface Mount Technology) |
| Plating | Gold 30U" (Contact Area), Matte Tin 80U" (Solder Area) |
| Current Rating | 1.5A @ 40VAC |
| Contact Resistance | ≤30mΩ |
| Withstand Voltage | 500VAC/min |
| Insulation Resistance | ≥1000MΩ |
| Mating Force | 25N Max |
| Unmating Force | 5N Min |
| Durability | 200 mating cycles/hour, 500 cycles for backplane |
| Temperature Range | -20°C to +85°C |
| Environmental Standards | RoHS Compliant |
| Salt Spray Test | 48 hours |
Key Features
- Gold-Plated Contact Area: 30U" of gold plating ensures maximum electrical conductivity and resistance to corrosion, ensuring stable signal transmission.
- SMT Mounting: Designed for efficient surface mounting on PCBs, providing cost-effective and automated assembly.
- Durable Construction: Featuring strong mechanical properties and high-quality materials for a long service life.
- RoHS Compliant: Meets the global environmental standards for hazardous substances.
- Temperature Range: Operates between -20°C to +85°C, suitable for both indoor and outdoor applications.
⚙️ Applications
1. Server & Storage Devices
SAS HDD/SSD modules
RAID controller boards
Server backplanes
High-speed data transmission lines
2. Communication Equipment
Network routers and switches
Optical-electrical conversion modules
Edge computing devices
3. Automotive Electronics
ADAS data modules
In-vehicle storage interfaces
ECU signal connectors
4. Industrial Control Systems
PLC controllers
Industrial computers
Data acquisition boards
5. PCB & High-Speed Signal Designs
Multi-board connectivity
Fine-pitch high-density boards
High-speed signal routing applications
⚠️ Notes
- Proper Installation: Ensure correct placement during assembly to avoid potential damage to the pins or contact area.
- Temperature Limitations: Avoid exposure to temperatures beyond the specified range to prevent performance degradation.
- Environmental Care: Store and use in environments free from harmful chemicals that could compromise connector integrity.
