High-Performance USB 2.0 AM Wire Soldering Connector | Gold-Flash Black Housing | Electrical Signal Cable Connector
Product Description

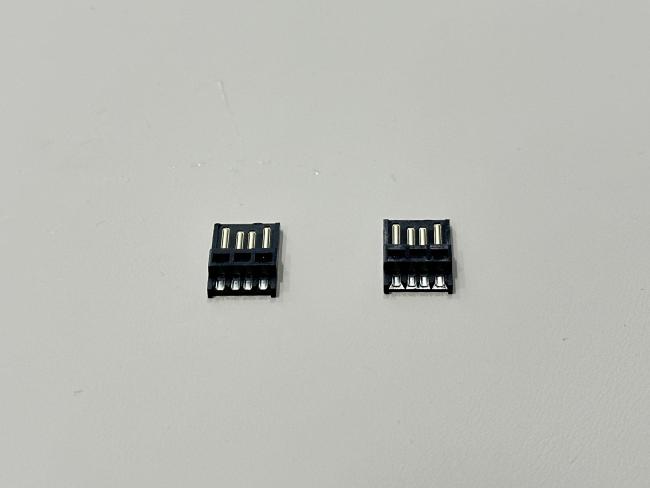

This USB 2.0 AM wire-soldering connector is engineered for reliable power and data transmission in electronic, automotive, and consumer-device applications. The connector features a black flame-retardant housing, gold-flash contacts for enhanced conductivity, and bright-tin plating on solder areas to ensure long-term stability. Manufactured with precise tolerances and ROHS-compliant materials, it supports consistent performance, secure mating, and strong mechanical durability across repeated insertions.
| Product Type | USB 2.0 AM Wire-Soldering Connector |
| Structure | Wire-solder type, black housing |
| Plating | Gold-flash on contact area; bright tin ≥80u" on solder area; nickel ≥50u" |
| Housing Material | PBT, flame-retardant, V0 grade, ROHS2.0 compliant |
| Terminal Material | Brass C2680-H |
| Contact Resistance | ≤30mΩ |
| Rated Current | 1.5A at 250VAC |
| Dielectric Withstanding Voltage | 500VAC / 1 minute |
| Insulation Resistance | ≥1000MΩ at 500VDC |
| Durability | 1500 cycles |
| Salt Spray Test | ≥24 hours |
| Operating Type | Male connector |
| Assembly | Wire soldering |
| Compatibility | USB 2.0 devices, power & data transmission |
Applications
Power and signal transmission cables
Consumer electronics, chargers, adapters
Automotive electronic wiring
Industrial control interfaces
Custom wire harness and PCB assemblies
Server and data-communication devices
Precautions
Ensure proper wire-soldering to avoid resistance increase.
Avoid excessive force during insertion/removal to maintain contact integrity.
Keep terminals clean and dry before assembly.
Verify compatibility with USB 2.0 standard devices.
Store in a non-corrosive environment to protect plating.
