High-Reliability SATA 13Pin 180° Wire Crimp Female Connector 1.27mm Pitch | Electrical Signal & Power Terminal Connector for Server, Automotive & Custom Wire Cable Transmission

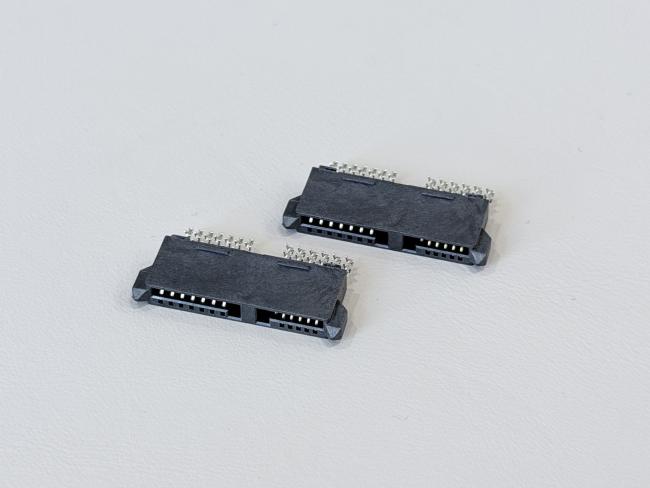

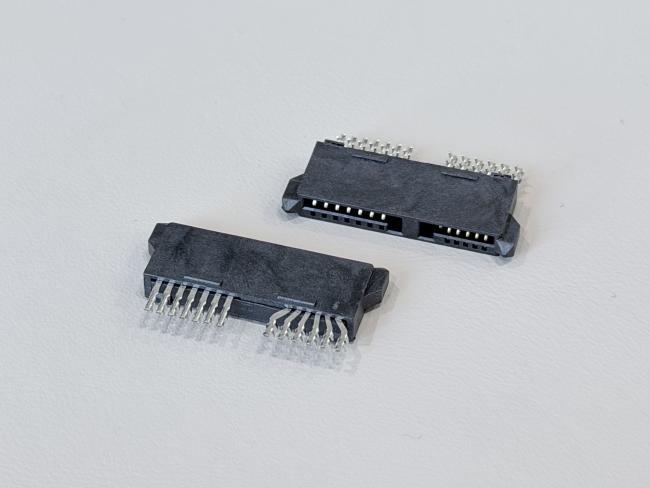

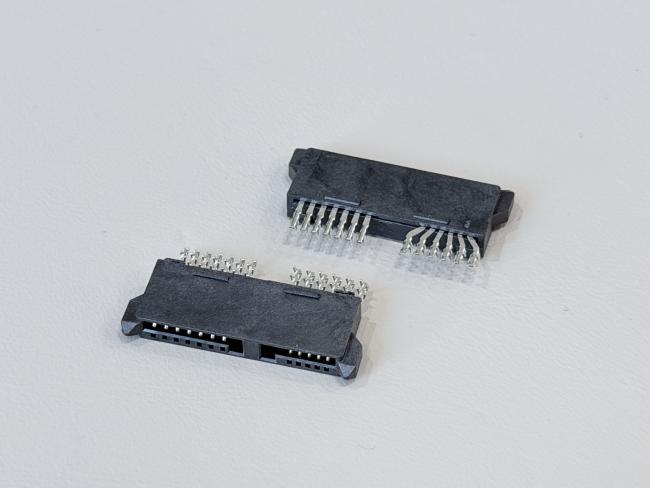

This SATA 13P 180° crimp type female connector is designed for high-reliability electrical and electronic signal transmission in HDD/SSD storage devices and server power/signal cable assemblies. With a 1.27mm pitch and 13-pin female layout, it provides a compact interface for customized wire harness and PCB connections in data storage, industrial control and automotive electronics.

Terminals are nickel under-plated with gold-flash on the contact area and matte-tin on the solder and crimp zones, ensuring stable contact resistance, secure crimping to the wire and long-term corrosion resistance. The black PBT glass-fiber-reinforced housing meets UL94-V0 flame-retardant requirements and operates from –20°C to +85°C, making this connector a robust choice for customized SATA signal and power cable solutions on your PCB, server and power transmission projects.

⚙️ Applications

• Server & Data Center Equipment – Used as SAS / SATA electronic signal and power connectors on HDD/SSD backplanes, RAID cards, JBOD/NAS and 1U/2U server boards.
• Communication & Networking Systems – For routers, switches, base stations and other networking equipment that need compact PCB connectors and reliable high-speed transmission.
• Industrial & Automation Electronics – Applied in industrial PCs, PLCs, motion controllers, data loggers and test instruments as PCB-to-wire or cable connectors.
• Automotive & New Energy Applications – Used in in-vehicle data recorders, infotainment units, EV chargers and energy-storage systems for signal and low-power transmission.
• Custom Wire Harness & Cable Assemblies – Suitable for OEM/ODM projects that require connector customization for PCB, wire and cable layouts in electrical and electronic devices.

⚠️ Notes

• Make sure the working voltage, current and temperature of your design stay within the connector’s rated values, with proper safety margin.
• Design PCB pads, holes and mechanical space according to the drawing and pitch, and avoid bending or twisting stress on the connector after soldering or assembly.
• Select appropriate wire gauge, insulation and cable structure based on current load, signal speed and bending requirements for both power and signal terminals.
• For IDC / crimp types, use matched tooling and press-force to ensure full insulation displacement; for solder types, follow a controlled soldering profile to avoid overheating the LCP housing.
• Insert and pull out the connector along the mating direction, avoid pulling on the cable itself, and do not exceed the specified mating/unmating force or durability cycles.
• Keep gold-plated contact areas clean and dry, avoid touching them with bare fingers, and store products in dry anti-static packaging before assembly.
