High-Reliability SATA 13Pin 180° Solder-Type Wire Female Connector 1.27mm Pitch | Electrical Signal & Power Terminal Connector for Server, Automotive & Custom Wire Cable Transmission
• Free samples available for quality evaluation.
• Support for both OEM & ODM customization.
• Trade Terms: EXW, FOB, CIF, CPT, etc.

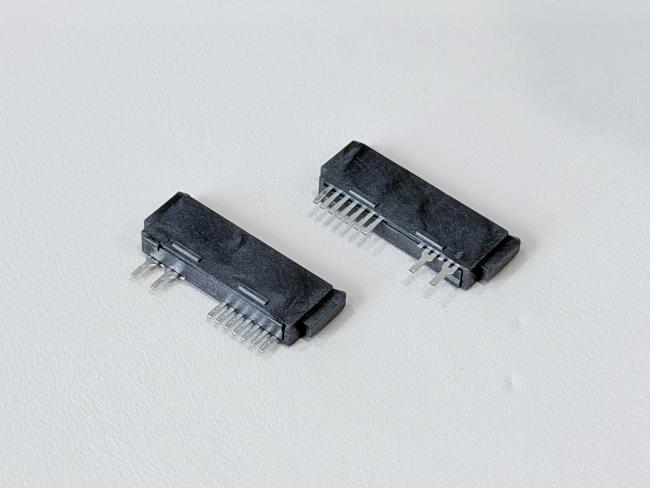

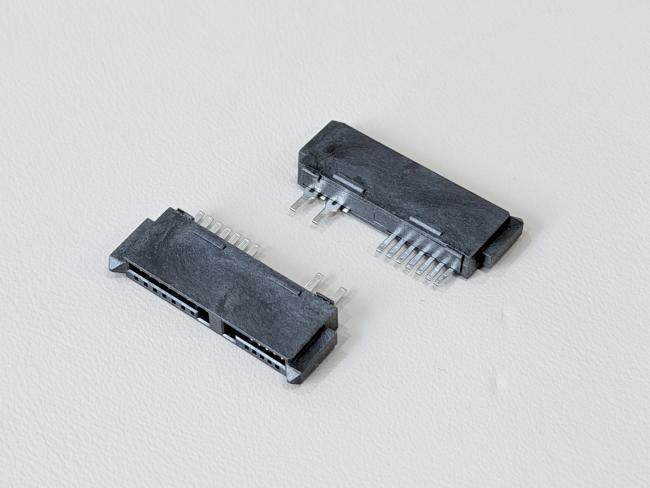

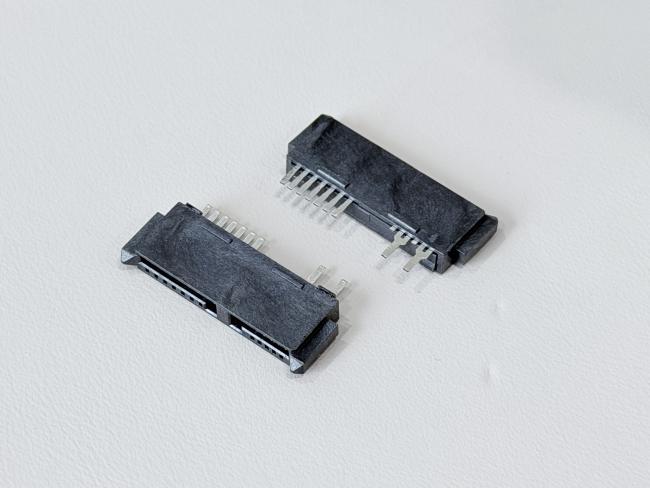

This SATA 13P 180° solder wire female connector is engineered for compact, high-reliability wire harness applications where stable electrical signal and power transmission are critical. With a 1.27mm pitch and SATA 13-pin interface, it is ideal for SATA wire cables used in servers, storage devices, automotive ECUs and industrial controllers.
The terminals are made from phosphor bronze C5191-H (0.25mm) and feature a robust plating structure: 50µ" nickel underplate to prevent corrosion, 15µ" gold G/F on the contact area to maintain low contact resistance for high-speed signals, and 80µ" matte tin on the wire-soldering area for strong, reliable bonding to the cable. Electrical performance includes a rating of 1.5A @ 40VAC, contact resistance ≤30mΩ, insulation resistance ≥1000MΩ, and withstand voltage 500VAC / minute, ensuring safe operation in demanding electronic systems.
Mechanically, the 180° solder-type wire termination combined with the reinforced housing delivers controlled mating/unmating forces and a single-pin retention force of at least 0.8kgf, improving vibration and pull-out resistance in finished wire harnesses. The black UL94-V0 glass-filled LCP housing, compliant with RoHS 2.0 and halogen-free requirements, provides excellent heat resistance and dimensional stability, making this connector suitable for automated soldering and mass-production cable assembly.
With support for custom wire length, cable gauge and harness layout, this SATA 13Pin 180° solder wire female connector is an excellent choice for OEMs that need a compact, dependable connector solution for electrical / electronic wire cable, automotive wiring, server transmission and power signal customization projects.
| Product Type | SATA 13P 180° solder-type female connector, gold-plated 15µ" G/F |
| Interface Series | SATA series, 13-pin female connector |
| Number of Positions | 13 pins |
| Pitch of Housing | 1.27mm (C: 1.27 pitch) |
| Termination Style | 180° solder way of terminal with wire, no PCB tail |
| Application Type | Wire cable / harness signal & power connector |
| Rated Current / Voltage | 1.5A @ 40VAC |
| Operating Temperature | –20°C to +85°C |
| Contact Resistance | ≤ 30mΩ (Max) |
| Insulation Resistance | ≥ 1000MΩ (Min) |
| Withstand Voltage | 500VAC / minute |
| Mating Force | ≤ 45N Max |
| Unmating Force | ≥ 15N Min (1–5 cycles), ≥ 10N Min (6–50 cycles) |
| Single Pin Retention | ≥ 0.8kgf per pin |
| Terminal Base Material | Phosphor Bronze C5191-H, t = 0.25mm (TS-A06F-S09 / TS-C07F-S07) |
| Terminal Plating – Underlayer | Ni 50µ" Min plated over terminal |
| Terminal Plating – Contact Area | Au 15µ" G/F plated on contact area |
| Terminal Plating – Wire Area | Tin 80µ" Min plated on solder/crimp area |
| Housing Material | LCP G/F Black UL94-V0, halogen-free (HSS-C13F-A09) |
| Environmental Compliance | RoHS 2.0 & HF compliant |
| Typical Uses | Electrical / electronic wire cable assemblies, SATA signal & power harnesses for server, storage, automotive, industrial equipment |
⚙️ Applications
- Server & Data Center Equipment – Used as SAS / SATA electronic signal and power connectors on HDD/SSD backplanes, RAID cards, JBOD/NAS and 1U/2U server boards.
- Communication & Networking Systems – For routers, switches, base stations and other networking equipment that need compact PCB connectors and reliable high-speed transmission.
- Industrial & Automation Electronics – Applied in industrial PCs, PLCs, motion controllers, data loggers and test instruments as PCB-to-wire or cable connectors.
- Automotive & New Energy Applications – Used in in-vehicle data recorders, infotainment units, EV chargers and energy-storage systems for signal and low-power transmission.
- Custom Wire Harness & Cable Assemblies – Suitable for OEM/ODM projects that require connector customization for PCB, wire and cable layouts in electrical and electronic devices.
⚠️ Notes
- Make sure the working voltage, current and temperature of your design stay within the connector’s rated values, with proper safety margin.
- Design PCB pads, holes and mechanical space according to the drawing and pitch, and avoid bending or twisting stress on the connector after soldering or assembly.
- Select appropriate wire gauge, insulation and cable structure based on current load, signal speed and bending requirements for both power and signal terminals.
- For IDC / crimp types, use matched tooling and press-force to ensure full insulation displacement; for solder types, follow a controlled soldering profile to avoid overheating the LCP housing.
- Insert and pull out the connector along the mating direction, avoid pulling on the cable itself, and do not exceed the specified mating/unmating force or durability cycles.
- Keep gold-plated contact areas clean and dry, avoid touching them with bare fingers, and store products in dry anti-static packaging before assembly.
