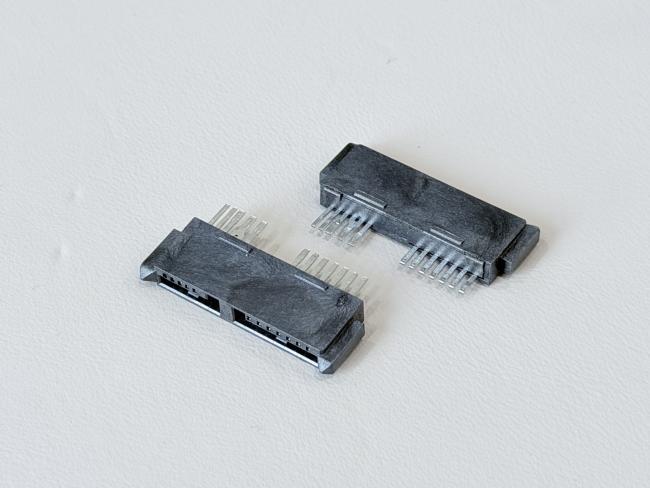

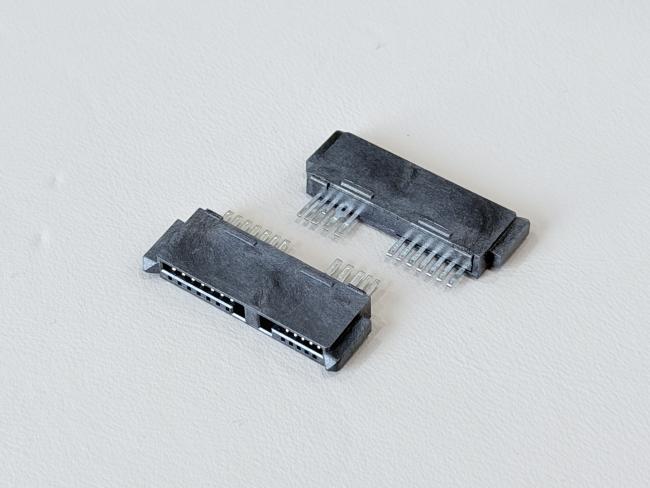

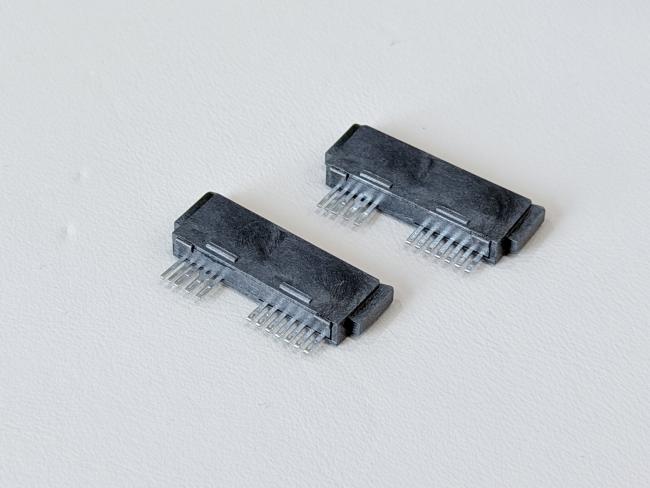

High-Reliability SATA 13Pin 180° Wire Solder Female Connector 1.27mm Pitch | Electrical Signal & Power Terminal Connector for Server, Automotive & Custom Wire Cable Transmission
• Free samples available for quality evaluation.
• Support for both OEM & ODM customization.
• Trade Terms: EXW, FOB, CIF, CPT, etc.
This SATA 13P 180° solder female connector is engineered for compact, high-density wire harness applications where stable electronic signal and low-power transmission are critical. With a fine 1.27mm pitch and 13-pin SATA female interface, it is ideal for connecting drives, backplanes, and control boards to custom wire and cable assemblies in servers, storage systems, industrial equipment, and automotive electronics.
The terminals are stamped from phosphor bronze C5191-H (0.25mm) to provide high elasticity and consistent contact pressure. A robust three-layer plating system ensures long-term reliability: 50µ" nickel underplate for corrosion protection, 15µ" gold-flash (G/F) on the contact area to maintain low contact resistance for high-speed signals, and 80µ" matte tin on the solder area for strong, stable wire soldering. Electrically, the connector is rated at 1.5A @ 40VAC, with contact resistance ≤30mΩ, insulation resistance ≥1000MΩ, and withstand voltage 500VAC/min, delivering reliable performance under a wide range of operating conditions from –20°C to +85°C.
Mechanically, the 180° solder-type structure and optimized housing design offer controlled mating / unmating forces and a single-pin retention force of at least 0.8kgf, improving resistance to vibration and pull-out in wire harnesses. The black UL94-V0 glass-filled LCP housing provides excellent heat resistance and dimensional stability, supporting automated soldering and cable assembly processes. With HF-compliant materials and flexible customization of wire gauge, cable type, and harness layout, this SATA 13Pin 180° solder female connector is a reliable choice for OEMs seeking space-saving, high-reliability connector solutions in server, power, automotive, and industrial transmission applications.
| Product Type | SATA 13P 180° solder-type female connector, gold-plated G/F |
| Interface Series | SATA series, 13-pin female connector |
| Number of Positions | 13 pins |
| Pitch of Housing | 1.27mm |
| Termination Style | 180° solder way of terminal with wire (wire soldering, no PCB tail) |
| Application Type | Electrical / electronic wire cable connector for signal & low-power transmission |
| Rated Current / Voltage | 1.5A @ 40VAC |
| Operating Temperature | –20°C to +85°C |
| Contact Resistance | ≤ 30mΩ (Max) |
| Insulation Resistance | ≥ 1000MΩ (Min) |
| Withstand Voltage | 500VAC / minute |
| Mating Force | ≤ 45N Max |
| Unmating Force | ≥ 15N (1–5 cycles), ≥ 10N (6–50 cycles) |
| Single Pin Retention | ≥ 0.8kgf per pin |
| Terminal Material | Phosphor Bronze C5191-H, t = 0.25mm (TS-A06F-S26, TS-C07F-S07) |
| Terminal Plating – Underlayer | Ni 50µ" Min plated over terminal |
| Terminal Plating – Contact Area | Au 15µ" G/F plated on contact area |
| Terminal Plating – Solder Area | Sn 80µ" Min plated on solder area |
| Housing Material | LCP G/F Black UL94-V0 (HSS-C13F-A09) |
| Environmental Compliance | RoHS 2.0 compliant; HF |
| Salt Spray Test | Gold area ≥ 48h (tin area not controlled) |
| Typical Uses | Server & storage SATA harnesses, industrial controllers, automotive electronics, customized electrical wire cable assemblies |
⚙️ Applications
- Server & Data Center Equipment – Used as SAS / SATA electronic signal and power connectors on HDD/SSD backplanes, RAID cards, JBOD/NAS and 1U/2U server boards.
- Communication & Networking Systems – For routers, switches, base stations and other networking equipment that need compact PCB connectors and reliable high-speed transmission.
- Industrial & Automation Electronics – Applied in industrial PCs, PLCs, motion controllers, data loggers and test instruments as PCB-to-wire or cable connectors.
- Automotive & New Energy Applications – Used in in-vehicle data recorders, infotainment units, EV chargers and energy-storage systems for signal and low-power transmission.
- Custom Wire Harness & Cable Assemblies – Suitable for OEM/ODM projects that require connector customization for PCB, wire and cable layouts in electrical and electronic devices.
⚠️ Notes
- Make sure the working voltage, current and temperature of your design stay within the connector’s rated values, with proper safety margin.
- Design PCB pads, holes and mechanical space according to the drawing and pitch, and avoid bending or twisting stress on the connector after soldering or assembly.
- Select appropriate wire gauge, insulation and cable structure based on current load, signal speed and bending requirements for both power and signal terminals.
- For IDC / crimp types, use matched tooling and press-force to ensure full insulation displacement; for solder types, follow a controlled soldering profile to avoid overheating the LCP housing.
- Insert and pull out the connector along the mating direction, avoid pulling on the cable itself, and do not exceed the specified mating/unmating force or durability cycles.
- Keep gold-plated contact areas clean and dry, avoid touching them with bare fingers, and store products in dry anti-static packaging before assembly.
