High-Reliability SATA 13Pin 180° Wire Solder Female Connector 1.27mm Pitch | Electrical Signal & Power Terminal Connector for Server, Automotive & Custom Wire Cable Transmission
• Free samples available for quality evaluation.
• Support for both OEM & ODM customization.
• Trade Terms: EXW, FOB, CIF, CPT, etc.

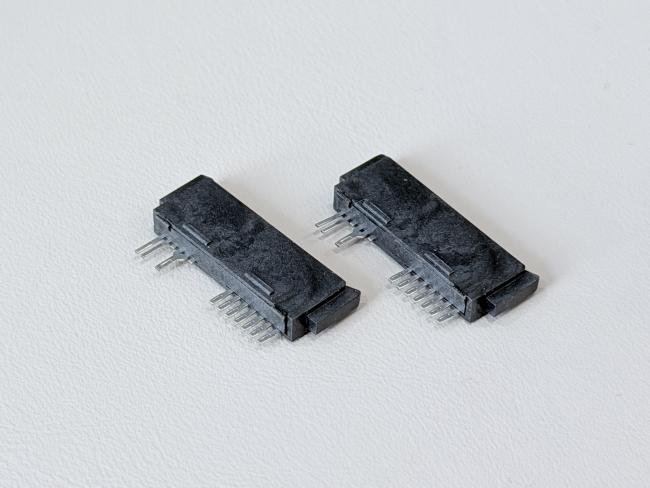

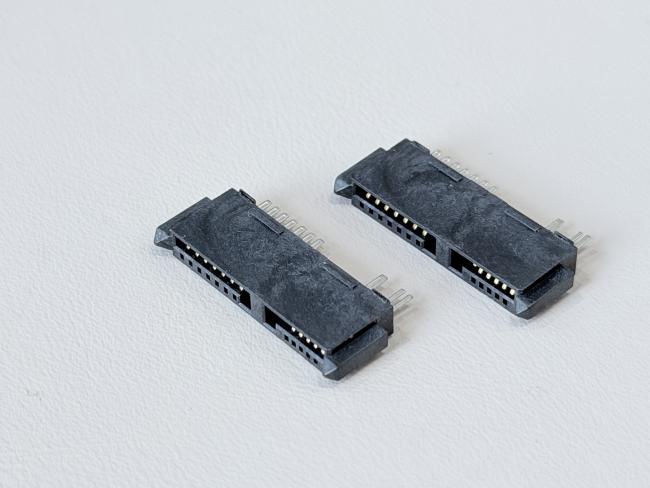

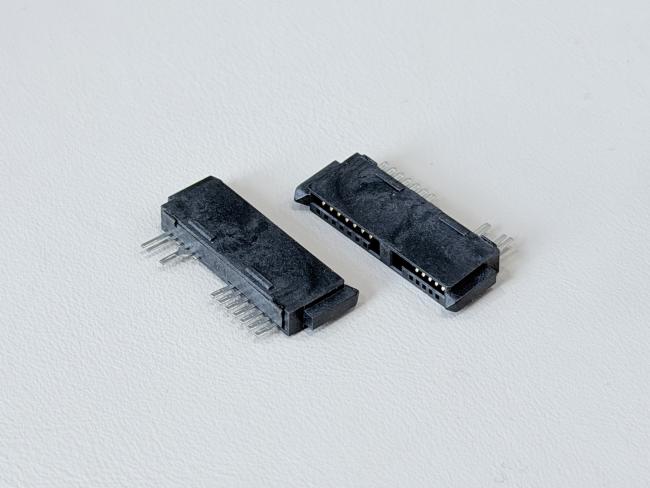

The SATA 13P 180° wire solder female connector is designed for compact, high-reliability electrical and electronic wire cable assemblies. With a 1.27mm pitch and 13-pin SATA female interface, it supports combined signal and power transmission in server backplanes, storage devices, industrial controllers and automotive electronics where space and stability are critical.
Terminals are made from phosphor bronze C5191-H (t = 0.25mm) and finished with a Ni 50µ" underlayer, Au 15µ" G/F plating on the contact area, and Sn 80µ" on the solder area. This multilayer structure provides excellent corrosion resistance, low contact resistance and reliable solderability, ensuring stable high-speed signal and power performance. The connector is rated at 1.5A @ 40VAC, with contact resistance ≤30mΩ, insulation resistance ≥1000MΩ, and a withstand voltage of 500VAC/minute.
Mechanically, the 180° solder-type termination with wire offers robust cable anchoring and is optimized for repeated mating cycles. Controlled mating force (≤45N), defined unmating force and a single-pin retention force ≥0.8kgf improve resistance to vibration, pull-out and handling stress during assembly and use. The black UL94-V0 glass-filled LCP housing delivers high heat resistance and dimensional stability, making it suitable for automated wire-solder processes and customized harness production.
With RoHS 2.0 compliant materials and flexible options for cable gauge, length and harness layout, this SATA 13Pin 180° wire solder female connector is an excellent choice for OEMs needing reliable, space-saving connector solutions for server, automotive and industrial wire cable transmission applications.
| Product Type | SATA 13P 180° wire-solder female connector, gold-plated G/F |
| Interface Series | SATA series, 13-pin female connector |
| Number of Positions | 13 pins |
| Pitch of Housing | 1.27mm (C: 1.27 pitch) |
| Termination Style | 180° solder way of terminal with wire (wire-end connector, no PCB tail) |
| Application Type | Electrical / electronic wire cable connector for signal & power transmission |
| Rated Current / Voltage | 1.5A @ 40VAC |
| Operating Temperature | –20°C to +85°C |
| Contact Resistance | ≤ 30mΩ (Max) |
| Insulation Resistance | ≥ 1000MΩ (Min) |
| Withstand Voltage | 500VAC / minute |
| Mating Force | ≤ 45N Max |
| Unmating Force | ≥ 15N Min (1–5 cycles); ≥ 10N Min (6–50 cycles) |
| Single Pin Retention | ≥ 0.8kgf per pin |
| Terminal Base Material | Phosphor Bronze C5191-H, t = 0.25mm |
| Terminal Plating – Underlayer | Ni 50µ" Min plated over terminal |
| Terminal Plating – Contact Area | Au 15µ" G/F plated on contact area |
| Terminal Plating – Solder Area | Sn 80µ" Min plated on solder area |
| Housing Material | LCP G/F Black UL94-V0 |
| Environmental Compliance | RoHS 2.0 compliant |
| Typical Uses | Server / storage, automotive electronics, industrial devices, customized wire harness for SATA signal & power |
⚙️ Applications
- Server & Data Center Equipment – Used as SAS / SATA electronic signal and power connectors on HDD/SSD backplanes, RAID cards, JBOD/NAS and 1U/2U server boards.
- Communication & Networking Systems – For routers, switches, base stations and other networking equipment that need compact PCB connectors and reliable high-speed transmission.
- Industrial & Automation Electronics – Applied in industrial PCs, PLCs, motion controllers, data loggers and test instruments as PCB-to-wire or cable connectors.
- Automotive & New Energy Applications – Used in in-vehicle data recorders, infotainment units, EV chargers and energy-storage systems for signal and low-power transmission.
- Custom Wire Harness & Cable Assemblies – Suitable for OEM/ODM projects that require connector customization for PCB, wire and cable layouts in electrical and electronic devices.
⚠️ Notes
- Make sure the working voltage, current and temperature of your design stay within the connector’s rated values, with proper safety margin.
- Design PCB pads, holes and mechanical space according to the drawing and pitch, and avoid bending or twisting stress on the connector after soldering or assembly.
- Select appropriate wire gauge, insulation and cable structure based on current load, signal speed and bending requirements for both power and signal terminals.
- For IDC / crimp types, use matched tooling and press-force to ensure full insulation displacement; for solder types, follow a controlled soldering profile to avoid overheating the LCP housing.
- Insert and pull out the connector along the mating direction, avoid pulling on the cable itself, and do not exceed the specified mating/unmating force or durability cycles.
- Keep gold-plated contact areas clean and dry, avoid touching them with bare fingers, and store products in dry anti-static packaging before assembly.
Get in Touch
Have questions about our products or want to discuss a custom order? Our team is ready to help you.
