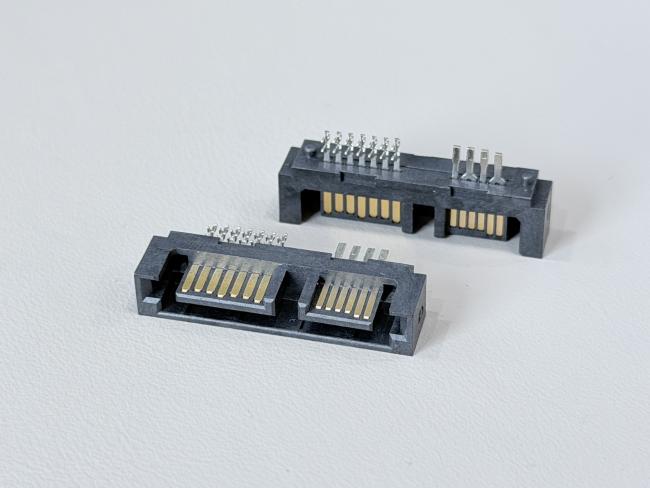

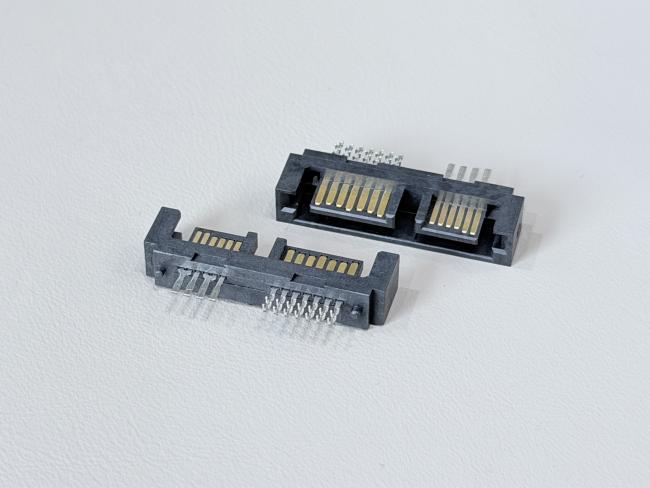

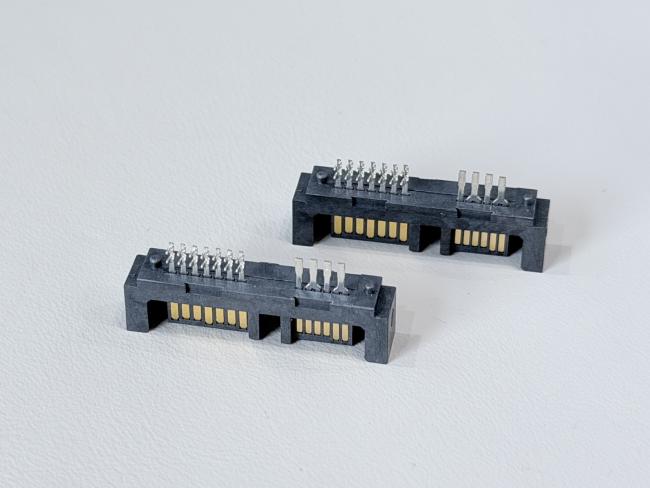

High-Reliability SATA 13Pin 180° Male Wire Cable Connector 1.27mm Pitch | Electrical Electronic Signal & Power Terminal Connector for Server, Automotive & Custom Wire Harness Transmission
• Free samples available for quality evaluation.
• Support for both OEM & ODM customization.
• Trade Terms: EXW, FOB, CIF, CPT, etc.
The SATA 13P 180° male wire cable connector is designed for compact, high-reliability electrical and electronic signal / power transmission in modern equipment. With a 1.27mm pitch and 13-pin SATA interface, it is ideal for custom wire harness and cable assemblies used in servers, storage devices, automotive systems and industrial controllers.
Terminals are manufactured from Brass C2680-H (0.25mm) with a robust three-layer plating structure: 50µ" nickel underplate for corrosion protection, 15µ" gold flash (G/F) on the contact area to maintain low contact resistance ≤30mΩ, and 80µ" tin on the wire-crimp / solder area to ensure strong, stable bonding to the cable. The connector is rated at 1.5A @ 40VAC, provides insulation resistance ≥1000MΩ, and withstands 500VAC per minute, delivering safe and consistent performance in demanding electrical environments.
Mechanically, the 180° wire-end termination (N2) and optimized housing design provide controlled mating force ≤45N, high static unmating force ≥25N and single-pin retention ≥0.8kgf, improving resistance to vibration and pull-out in cable harness applications. The glass-filled LCP housing (Black UL94-V0) offers excellent heat resistance and dimensional stability, making the connector suitable for automated crimping, soldering and over-molding processes.
Using RoHS-compliant materials and supporting customization of wire length, cable specification and harness layout, this SATA 13Pin 180° male wire cable connector is an excellent choice for OEMs seeking a high-reliability pin terminal connector for server, automotive and industrial power / signal transmission projects.
| Product Type | SATA 13P 180° male wire-end connector, gold-plated 15u" |
| Interface Series | SATA series 13-pin male connector |
| Number of Positions | 13 pins |
| Pitch of Housing | 1.27mm (C: 1.27 pitch) |
| Termination Style | 180° wire terminal connection (N2: way of 180° terminal with wire) |
| Application Type | Wire / cable harness connector for signal & power transmission |
| Rated Current / Voltage | 1.5A @ 40VAC |
| Operating Temperature | –20°C to +85°C |
| Contact Resistance | ≤ 30mΩ (Max) |
| Insulation Resistance | ≥ 1000MΩ (Min) |
| Withstand Voltage | 500VAC / minute |
| Mating Force | ≤ 45N Max |
| Unmating Force | ≥ 25N static removal force, no damage |
| Single Pin Retention | ≥ 0.8kgf per pin |
| Terminal Base Material | Brass C2680-H, t = 0.25mm (TS-A06M-S03 / TS-C07M-C05) |
| Terminal Plating – Underlayer | Ni 50µ" Min plated over terminal |
| Terminal Plating – Contact Area | Au 15µ" G/F plated on contact area |
| Terminal Plating – Wire Area | Tin 80µ" Min on solder & crimp area |
| Housing Material | LCP G/F Black UL94-V0 (HSS-C13M-B06) |
| Environmental Compliance | RoHS 2.0 compliant |
| Typical Uses | Electrical / electronic wire cable assemblies, SATA signal & power harnesses for servers, storage devices, automotive electronics, industrial control and custom wire harness transmission |
⚙️ Applications
- Server & Data Center Equipment – Used as SAS / SATA electronic signal and power connectors on HDD/SSD backplanes, RAID cards, JBOD/NAS and 1U/2U server boards.
- Communication & Networking Systems – For routers, switches, base stations and other networking equipment that need compact PCB connectors and reliable high-speed transmission.
- Industrial & Automation Electronics – Applied in industrial PCs, PLCs, motion controllers, data loggers and test instruments as PCB-to-wire or cable connectors.
- Automotive & New Energy Applications – Used in in-vehicle data recorders, infotainment units, EV chargers and energy-storage systems for signal and low-power transmission.
- Custom Wire Harness & Cable Assemblies – Suitable for OEM/ODM projects that require connector customization for PCB, wire and cable layouts in electrical and electronic devices.
⚠️ Notes
- Make sure the working voltage, current and temperature of your design stay within the connector’s rated values, with proper safety margin.
- Design PCB pads, holes and mechanical space according to the drawing and pitch, and avoid bending or twisting stress on the connector after soldering or assembly.
- Select appropriate wire gauge, insulation and cable structure based on current load, signal speed and bending requirements for both power and signal terminals.
- For IDC / crimp types, use matched tooling and press-force to ensure full insulation displacement; for solder types, follow a controlled soldering profile to avoid overheating the LCP housing.
- Insert and pull out the connector along the mating direction, avoid pulling on the cable itself, and do not exceed the specified mating/unmating force or durability cycles.
- Keep gold-plated contact areas clean and dry, avoid touching them with bare fingers, and store products in dry anti-static packaging before assembly.
