High-Reliability SATA 15Pin 180° Wire Crimp Female Connector 1.27mm Pitch | Electrical Signal & Power Terminal Connector for Server, Storage, Automotive Wire Cable Transmission
• Free samples available for quality evaluation.
• Support for both OEM & ODM customization.
• Trade Terms: EXW, FOB, CIF, CPT, etc.

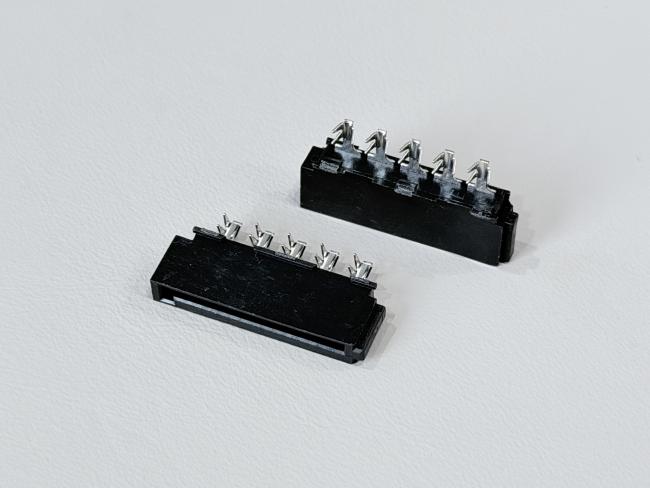

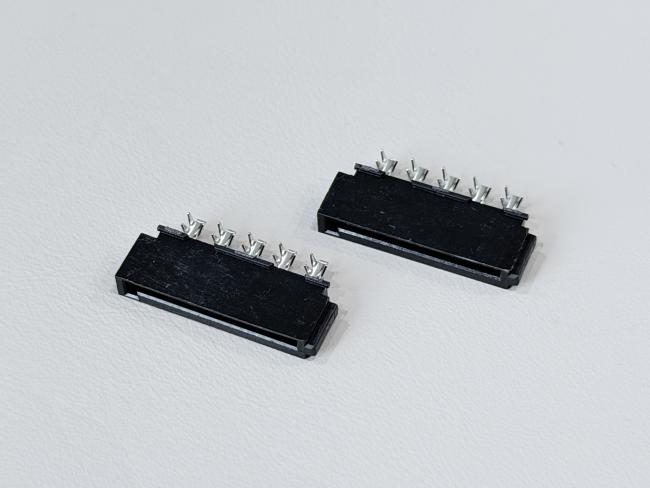

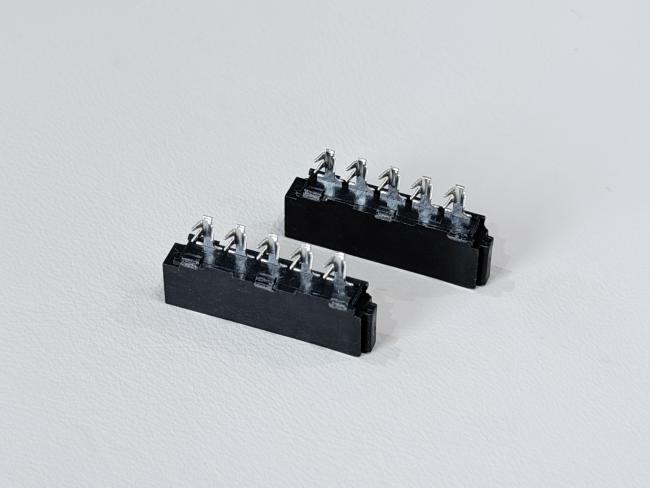

The SATA 15P 180° crimp female connector is designed for compact, high-reliability power and signal wire-cable assemblies. With a 1.27mm pitch and 15-pin SATA power interface, it is ideal for SATA-based HDD/SSD, server power harnesses, industrial controllers and customized cable solutions where space is limited but performance cannot be compromised.
The terminals are made from phosphor bronze C5191-H (0.25mm thickness) and use a robust multi-layer plating system: 50µ" nickel underplate for corrosion protection, 15µ" gold on the contact area to maintain low contact resistance for stable electrical performance, and 80µ" matte tin on the crimp area to ensure strong, reliable bonding to the wire. The connector is rated at 1.5A @ 40VAC, with contact resistance ≤30mΩ, insulation resistance ≥1000MΩ and a withstand voltage of 500VAC/minute, delivering safe and consistent operation in demanding electrical environments.
Mechanically, the optimized 180° crimp structure provides controlled mating force (≤45N) and unmating force (≥15N / ≥10N), while a single-pin retention force ≥0.8kgf improves vibration and pull-out resistance in cable harness applications. The black UL94-V0 PBT glass-filled housing offers excellent heat resistance and dimensional stability, making the connector suitable for automated crimping and mass production.
With its RoHS-compliant materials, gold-plated contacts and customizable wire length and cable specifications, this SATA 15Pin 180° wire crimp female connector is an excellent choice for OEMs looking for a reliable, space-saving connector solution for server, storage, automotive and industrial electrical wire cable transmission.
| Product Type | SATA 15P 180° wire crimp female connector, gold-plated G/F |
| Interface Series | SATA power series, 15-pin female connector |
| Number of Positions | 15 pins |
| Pitch of Housing | 1.27mm (C: 1.27 pitch) |
| Termination Style | 180° crimp way of terminal with wire, cable-end connector (no PCB tail) |
| Application Type | Electrical / electronic wire cable & harness connector for signal and power transmission |
| Rated Current / Voltage | 1.5A @ 40VAC |
| Operating Temperature | –20°C to +85°C |
| Contact Resistance | ≤ 30mΩ (Max) |
| Insulation Resistance | ≥ 1000MΩ (Min) |
| Withstand Voltage | 500VAC / minute |
| Mating Force | ≤ 45N Max |
| Unmating Force | ≥ 15N Min (1–5 cycles), ≥ 10N Min (6–50 cycles) |
| Single Pin Retention Force | ≥ 0.8kgf per pin |
| Terminal Material | Phosphor Bronze C5191-H, t = 0.25mm |
| Terminal Plating | Ni 50µ" Min underplate; Au 15µ" plated on contact area; Sn 80µ" Min on crimp area |
| Housing Material | PBT 20% G/F Black, UL94-V0 |
| Environmental Compliance | RoHS 2.0 compliant |
| Typical Uses | Server & storage power cables, HDD/SSD backplane harnesses, industrial control equipment, custom automotive and industrial power / signal cable assemblies |
⚙️ Applications
- Server & Data Center Equipment – Used as SAS / SATA electronic signal and power connectors on HDD/SSD backplanes, RAID cards, JBOD/NAS and 1U/2U server boards.
- Communication & Networking Systems – For routers, switches, base stations and other networking equipment that need compact PCB connectors and reliable high-speed transmission.
- Industrial & Automation Electronics – Applied in industrial PCs, PLCs, motion controllers, data loggers and test instruments as PCB-to-wire or cable connectors.
- Automotive & New Energy Applications – Used in in-vehicle data recorders, infotainment units, EV chargers and energy-storage systems for signal and low-power transmission.
- Custom Wire Harness & Cable Assemblies – Suitable for OEM/ODM projects that require connector customization for PCB, wire and cable layouts in electrical and electronic devices.
⚠️ Notes
- Make sure the working voltage, current and temperature of your design stay within the connector’s rated values, with proper safety margin.
- Design PCB pads, holes and mechanical space according to the drawing and pitch, and avoid bending or twisting stress on the connector after soldering or assembly.
- Select appropriate wire gauge, insulation and cable structure based on current load, signal speed and bending requirements for both power and signal terminals.
- For IDC / crimp types, use matched tooling and press-force to ensure full insulation displacement; for solder types, follow a controlled soldering profile to avoid overheating the LCP housing.
- Insert and pull out the connector along the mating direction, avoid pulling on the cable itself, and do not exceed the specified mating/unmating force or durability cycles.
- Keep gold-plated contact areas clean and dry, avoid touching them with bare fingers, and store products in dry anti-static packaging before assembly.
