SATA 15P Female Puncture Connector | Gold-Plated Terminal G/F for 24AWG Wire | Electrical Signal PCB Connector for Server, Automotive & Wire Cable Applications

Price Negotiable
Price: $0.03-0.07 PCS FOB
MOQ: 1000
Delivery Time: 8-15 working days
Brand: ShuangYi
Product Description

Our SATA connector series is designed for stable data transmission and high reliability. With customizable pin count, pitch, materials, and plating specifications, we offer tailored solutions for diverse applications. Produced in our automated facilities with strict quality control, these connectors ensure excellent durability, heat resistance, and hot-swap performance. Widely used in computers, servers, and industrial storage devices, they deliver precision connection and long-lasting performance.
ShuangYi Precision — Powering Smarter Connections.
Why Choose Us:
• Free samples available for quality evaluation.
• Support for both OEM & ODM customization.
• Trade Terms: EXW, FOB, CIF, CPT, etc.
Notice: The displayed price is only for reference. Contact us now for the best offer and detailed quotation!

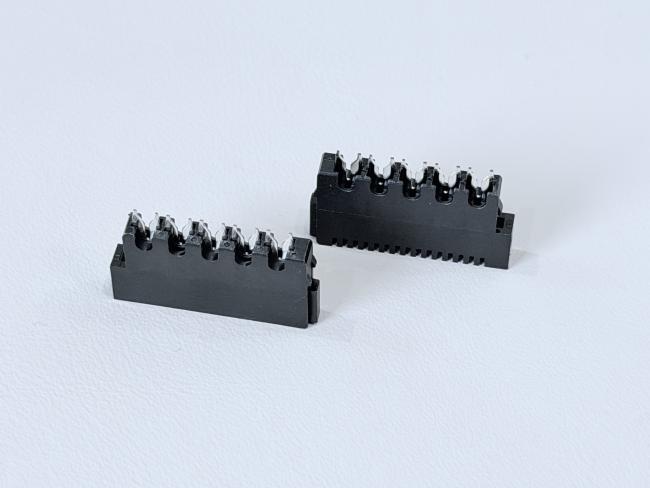

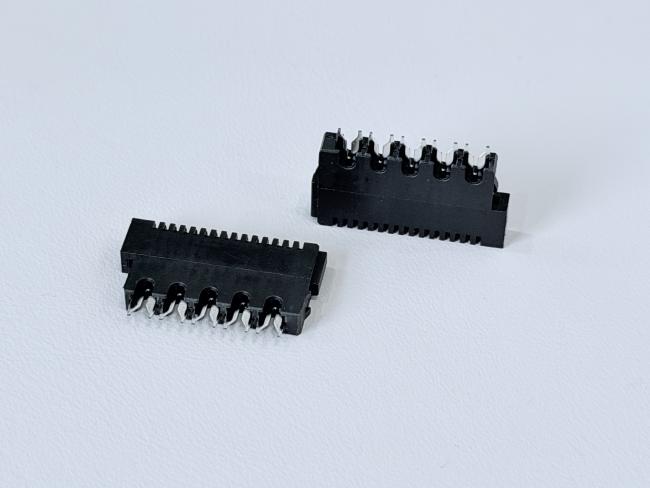

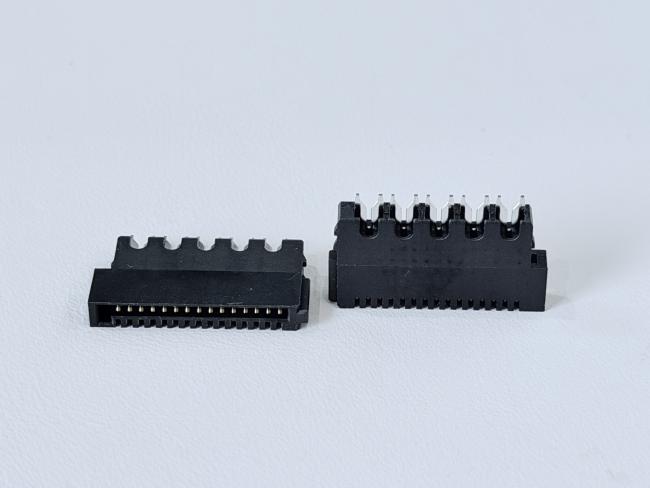

The SATA 15P Female Connector features a single puncture-type terminal structure designed for 24AWG wires, providing a secure and stable electrical interface for SATA power applications.
The terminals are plated with ≥50µ” nickel, with gold flash (G/F) on the contact area to ensure improved conductivity and corrosion resistance. The solder and crimp areas are finished with ≥80µ” tin plating, ensuring reliable wire termination.

The connector is built with a UL94-V0 rated PBT housing (20%GF) for high mechanical strength and heat resistance.
It supports 1.5A @ 40VAC, with ≤30mΩ contact resistance, ≥1000MΩ insulation resistance, and 500VAC/min withstand voltage, ensuring stable electrical performance.

Mechanical reliability is ensured by a mating force ≤45N, unmating force ≥15N (1–5 cycles), ≥10N (6–50 cycles), and ≥0.8Kgf single-pin retention force.
The connector also meets RoHS 2.0 environmental standards and passes a 24-hour salt spray test.

This connector is ideal for SATA power assemblies, servers, automotive electronics, and industrial equipment where stable wire-to-terminal performance is required.

Product Type SATA 15P Female Connector, Single Puncture-Type Terminal
Operating Temperature –20°C to +85°C
Rated Current 1.5A @ 40VAC
Contact Resistance ≤ 30mΩ
Withstand Voltage 500VAC / minute
Insulation Resistance ≥ 1000MΩ
Terminal Plating Ni ≥ 50µ” over terminal
Contact Area Plating Au G/F (Gold Flash), thickness per drawing
Tin Plating (Solder/Crimp) Tin ≥ 80µ”
Mating Force ≤ 45N
Unmating Force ≥ 15N (1–5 cycles), ≥10N (6–50 cycles)
Single Pin Retention Force ≥ 0.8 Kgf
Salt Spray Test 24 hours
Environmental Standard RoHS 2.0
Terminal Material Bronze C5191-H, T = 0.30mm
Housing Material PBT 20% G/F, Black, UL94-V0
Wire Type 24 AWG puncture connection
Terminal P/N TS–C15F–X09
Housing P/N HSS–C15F–X04

⚙️ Applications

  • Server & Data Center Equipment – Used as SAS / SATA electronic signal and power connectors on HDD/SSD backplanes, RAID cards, JBOD/NAS and 1U/2U server boards.
  • Communication & Networking Systems – For routers, switches, base stations and other networking equipment that need compact PCB connectors and reliable high-speed transmission.
  • Industrial & Automation Electronics – Applied in industrial PCs, PLCs, motion controllers, data loggers and test instruments as PCB-to-wire or cable connectors.
  • Automotive & New Energy Applications – Used in in-vehicle data recorders, infotainment units, EV chargers and energy-storage systems for signal and low-power transmission.
  • Custom Wire Harness & Cable Assemblies – Suitable for OEM/ODM projects that require connector customization for PCB, wire and cable layouts in electrical and electronic devices.

⚠️ Notes

  • Make sure the working voltage, current and temperature of your design stay within the connector’s rated values, with proper safety margin.
  • Design PCB pads, holes and mechanical space according to the drawing and pitch, and avoid bending or twisting stress on the connector after soldering or assembly.
  • Select appropriate wire gauge, insulation and cable structure based on current load, signal speed and bending requirements for both power and signal terminals.
  • For IDC / crimp types, use matched tooling and press-force to ensure full insulation displacement; for solder types, follow a controlled soldering profile to avoid overheating the LCP housing.
  • Insert and pull out the connector along the mating direction, avoid pulling on the cable itself, and do not exceed the specified mating/unmating force or durability cycles.
  • Keep gold-plated contact areas clean and dry, avoid touching them with bare fingers, and store products in dry anti-static packaging before assembly.
