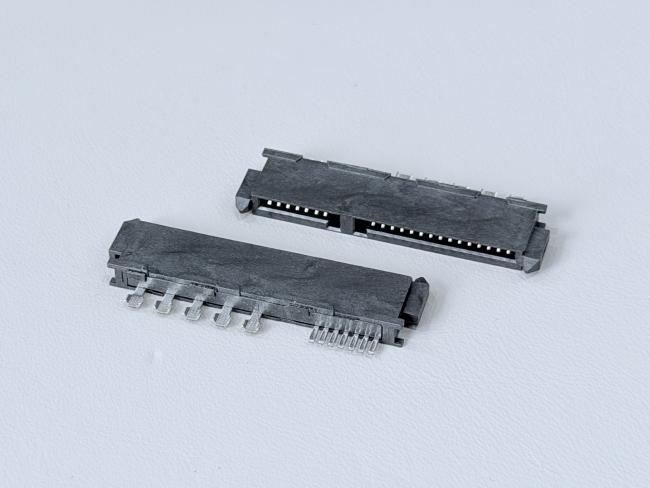

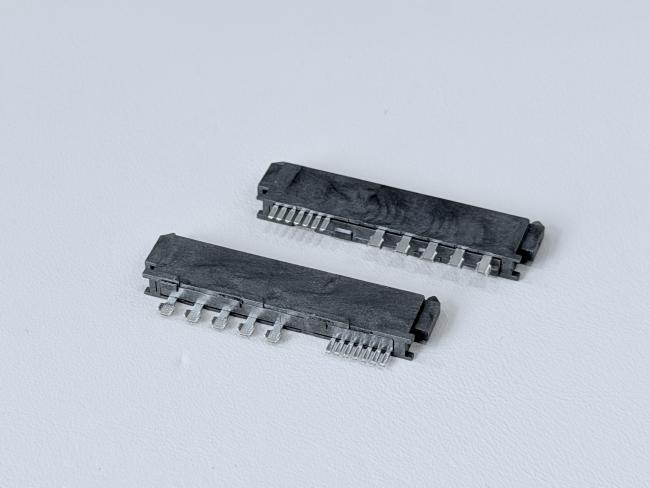

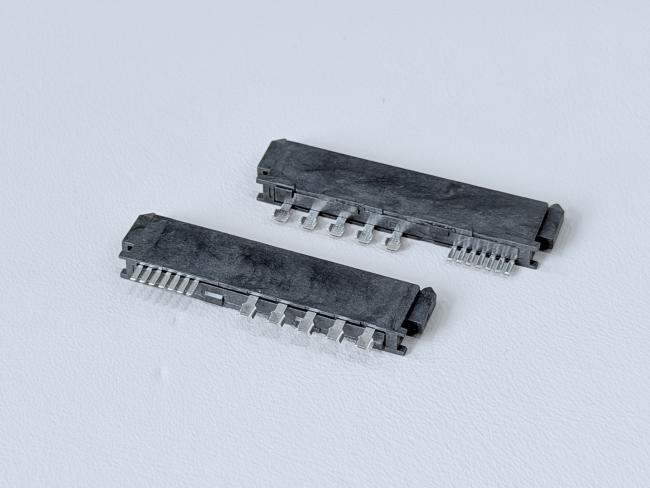

SATA 22P Female Connector | 32-Wire Solder Type 180° G/F Gold Plated | Electrical PCB Signal Terminal Connector for Server, Automotive, Wire Cable Applications
• Free samples available for quality evaluation.
• Support for both OEM & ODM customization.
• Trade Terms: EXW, FOB, CIF, CPT, etc.
The SATA 22P Female Connector is a 32-wire solder type design with a 180° orientation, offering stable electrical performance for SATA power and signal transmission.
The connector features G/F (gold flash) plating on the contact area, with terminals constructed from C5191 phosphor bronze (T=0.25) for enhanced strength and reliability.
The terminal structure includes ≥50µ” nickel plating, ≥80µ” tin plating on solder areas, and G/F gold plating on the contact points to ensure low resistance and corrosion resistance.
The housing is made from UL94-V0 LCP with glass fiber, providing heat resistance and dimensional stability.
Electrical performance meets the drawing standards:
1.5A @ 40VAC, ≤30mΩ contact resistance, ≥1000MΩ insulation resistance, and 500VAC withstand voltage.
Mechanical performance includes ≤45N mating force, ≥10N unmating force, and ≥0.8kgf pin retention, ensuring long-term reliability.
The connector also passes salt spray ≥24h and a durability test of 200 cycles/h, 50 cycles.
This connector is fully RoHS 2.0 compliant, suitable for high-reliability applications.
| Product Type | SATA 22P Female Connector, 32-Wire Solder Type, 180° |
| Operation Temperature | –20°C to +85°C |
| Rated Current | 1.5A @ 40VAC |
| Contact Resistance | ≤ 30mΩ |
| Withstand Voltage | 500VAC/min |
| Insulation Resistance | ≥ 1000MΩ |
| Terminal Plating – Nickel | Ni ≥ 50µ” |
| Contact Area Gold Plating | Au G/F (Gold Flash) |
| Tin Plating on Solder/Crimp Area | Sn ≥ 80µ” |
| Mating Force | ≤ 45N |
| Unmating Force | ≥10N for 50 cycles |
| Single Pin Retention Force | ≥ 0.8kgf |
| Durability Test | 200 cycles/hour, 50 cycles total |
| Salt Spray Test | ≥ 24H |
| Terminal Material | PH. BRONZE – C5191, T = 0.25 |
| Housing Material | LCP + G/F, UL94-V0, Black |
| Pitch | 1.27mm |
| Links Way (Code) | S1: Solder type terminal with wire |
| Plating Code | A2: Au G/F Plated |
| Environmental Standard | RoHS 2.0 |
⚙️ Applications
- Server & Data Center Equipment – Used as SAS / SATA electronic signal and power connectors on HDD/SSD backplanes, RAID cards, JBOD/NAS and 1U/2U server boards.
- Communication & Networking Systems – For routers, switches, base stations and other networking equipment that need compact PCB connectors and reliable high-speed transmission.
- Industrial & Automation Electronics – Applied in industrial PCs, PLCs, motion controllers, data loggers and test instruments as PCB-to-wire or cable connectors.
- Automotive & New Energy Applications – Used in in-vehicle data recorders, infotainment units, EV chargers and energy-storage systems for signal and low-power transmission.
- Custom Wire Harness & Cable Assemblies – Suitable for OEM/ODM projects that require connector customization for PCB, wire and cable layouts in electrical and electronic devices.
⚠️ Notes
- Make sure the working voltage, current and temperature of your design stay within the connector’s rated values, with proper safety margin.
- Design PCB pads, holes and mechanical space according to the drawing and pitch, and avoid bending or twisting stress on the connector after soldering or assembly.
- Select appropriate wire gauge, insulation and cable structure based on current load, signal speed and bending requirements for both power and signal terminals.
- For IDC / crimp types, use matched tooling and press-force to ensure full insulation displacement; for solder types, follow a controlled soldering profile to avoid overheating the LCP housing.
- Insert and pull out the connector along the mating direction, avoid pulling on the cable itself, and do not exceed the specified mating/unmating force or durability cycles.
- Keep gold-plated contact areas clean and dry, avoid touching them with bare fingers, and store products in dry anti-static packaging before assembly.
