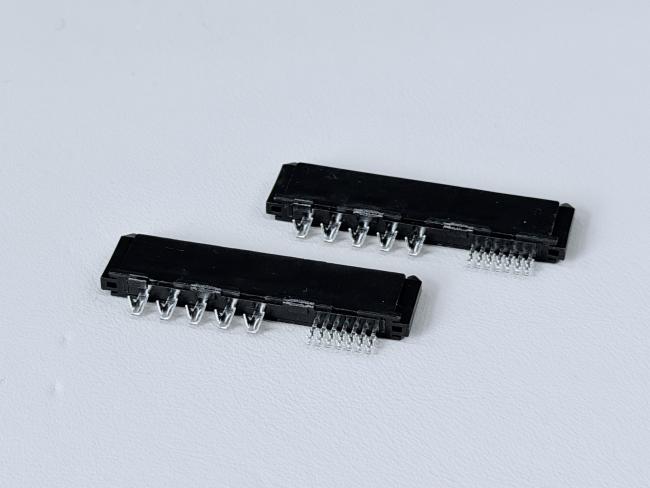

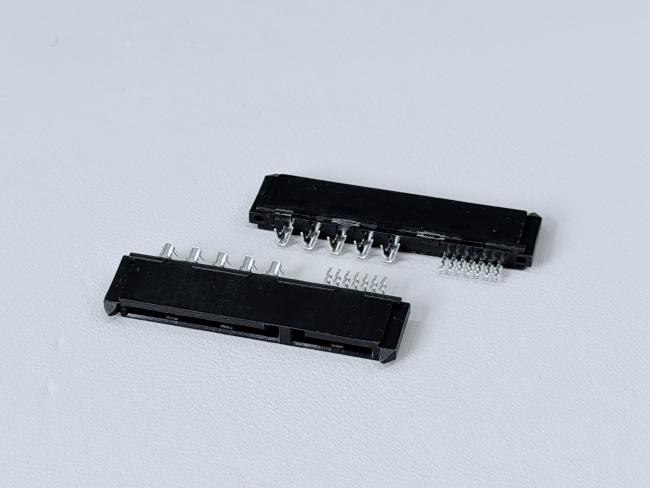

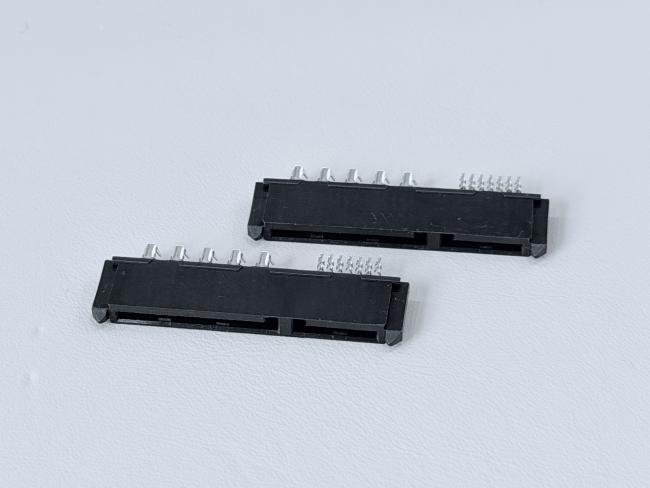

SATA 22P Female Connector | Pin SMT PCB Terminal Connector | G/F Gold-Plated Electrical Signal Connector for Server, Automotive, Wire Cable & Power Transmission
• Free samples available for quality evaluation.
• Support for both OEM & ODM customization.
• Trade Terms: EXW, FOB, CIF, CPT, etc.
This SATA 22-Pin Female Connector is designed with a 1.27mm pitch and features a dual-hold crimp-type construction for stable wire termination. The contact area is gold-flash plated (G/F) for enhanced conductivity and long-term durability, supported by nickel and tin plating layers for corrosion and wear resistance.
The housing is made from UL94-V0 flame-retardant PBT with 20% glass fiber, offering high strength and reliability in demanding environments. Phosphor bronze terminals ensure excellent mechanical performance, including low contact resistance (≤30mΩ), strong pin retention, and consistent mating/unmating forces.
This connector provides stable power and signal transmission, making it suitable for server hardware, storage devices, industrial electronics, and automotive applications requiring secure SATA interconnection.
| Product Type | SATA 22P Female Connector, Crimp Type, Dual-Hold, 180° |
| Pitch | 1.27mm |
| Rated Current | 1.5A @ 40VAC |
| Contact Resistance | ≤30mΩ (max) |
| Withstand Voltage | 500VAC / 1 minute |
| Insulation Resistance | ≥1000MΩ |
| Terminal Plating | Ni ≥50u" (over terminal) / Au G/F plated (contact area) / Tin ≥80u" (solder & crimp area) |
| Mating Force | ≤45N |
| Unmating Force | ≥15N (1–5 cycles), ≥10N (6–50 cycles) |
| Single Pin Retention Force | ≥0.8kgf |
| Housing Material | PBT 20% G/F, UL94-V0, Black |
| Terminal Material | Phosphor Bronze C5191-H, T=0.25 |
| PEG Material | Brass C2680-H, T=0.30 |
| Compliance | RoHS 2.0 |
| Assembly Type | Crimp with wire (C1 per code explanation) |
⚙️ Applications
- Server & Data Center Equipment – Used as SAS / SATA electronic signal and power connectors on HDD/SSD backplanes, RAID cards, JBOD/NAS and 1U/2U server boards.
- Communication & Networking Systems – For routers, switches, base stations and other networking equipment that need compact PCB connectors and reliable high-speed transmission.
- Industrial & Automation Electronics – Applied in industrial PCs, PLCs, motion controllers, data loggers and test instruments as PCB-to-wire or cable connectors.
- Automotive & New Energy Applications – Used in in-vehicle data recorders, infotainment units, EV chargers and energy-storage systems for signal and low-power transmission.
- Custom Wire Harness & Cable Assemblies – Suitable for OEM/ODM projects that require connector customization for PCB, wire and cable layouts in electrical and electronic devices.
⚠️ Notes
- Make sure the working voltage, current and temperature of your design stay within the connector’s rated values, with proper safety margin.
- Design PCB pads, holes and mechanical space according to the drawing and pitch, and avoid bending or twisting stress on the connector after soldering or assembly.
- Select appropriate wire gauge, insulation and cable structure based on current load, signal speed and bending requirements for both power and signal terminals.
- For IDC / crimp types, use matched tooling and press-force to ensure full insulation displacement; for solder types, follow a controlled soldering profile to avoid overheating the LCP housing.
- Insert and pull out the connector along the mating direction, avoid pulling on the cable itself, and do not exceed the specified mating/unmating force or durability cycles.
- Keep gold-plated contact areas clean and dry, avoid touching them with bare fingers, and store products in dry anti-static packaging before assembly.
