high quality hot sale 6 wheeler 10ton JAC brand 4*2 dumper truck, JAC brand LHD 10tons-15tons stone and coal dump tipper
high quality hot sale 6 wheeler 10ton JAC brand 4*2 dumper truck, JAC brand LHD 10tons-15tons stone and coal dump tipper
JAC dumper truck, is also called tipper truck, mainly used for engineering projects, for transporting dust, sand, rock ,etc, also used in mining and coal site. This truck could make to hermetic type. This type of truck adopt two hydraulic ylinder lifting ,stable rise, easy to operate, rear dumping type.
Product Notes of CLW brand dump tipper truck manufactured by Chengli Special Automobile Co., Ltd. as below.
1. JAC GAllOP 4*2 dump truck chassis with Euro 3 Guangxi Yuchai 180hp
2. Loading capacity 10-15 ton
3. Factory direct sale
If you're interested in our dump truck, please feel free to send email to truck0011@163.com or talk to Anita directly by Whatsapp/Wechat/Mob.: +86 13329899995.
Main Parameter of high quality hot sale 6 wheeler 10ton JAC dumper truck :
| Vehicle Main Dimensions | Cab type | JAC GAllop flat proof, single sleeper, air conditioner |
| Overall dimension(L×W×H)(mm) | 7130×2495×3250 | |
| Axle number | 2 | |
| Drive type | 4*2 | |
| Steering type | LHD or RHD with power steering | |
| Max. Drive Speed (km/h) | 90 | |
| Curb weight (kg) | Approx 7820 | |
| Chassis parameter | Chassis Model | HFC3160 |
| Chassis manufacturer: | HFC | |
| Transmission | Manual , 6 speed forward and 1 reverse | |
| Brakes | air brake, breather brake | |
| Tire | 10.00R20 with 1 Spare tire | |
| Engine parameter | Brand | Guangxi Yuchai |
| Model | YC6J180-33 | |
| Fuel type | Diesel | |
| Horse Power(kw)/(hp) | 132(180hP) | |
| Displacement(ml) | 6494 | |
| Emission Standard | Euro 3 | |
| Superstructure Parameter | Body material | High quality structural steel Q235 |
| Body dimension(L*W*H)(mm) | 4500×2300×1000 | |
| Side thickness(mm) | 4mm | |
| Bottom thickness(mm) | 5mm | |
| Lifting type | front mounted hydraulic cylinder | |
| Dump method | Rear door dump |
More pictures of hot sale JAC 4*2 dump truck as below.

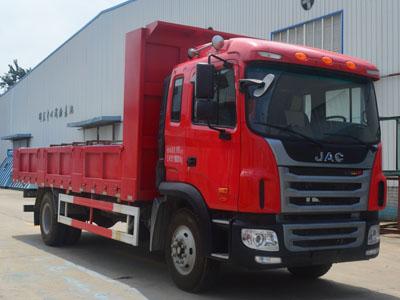

JAC brand 4*2 10tons dump tipper truck for sale

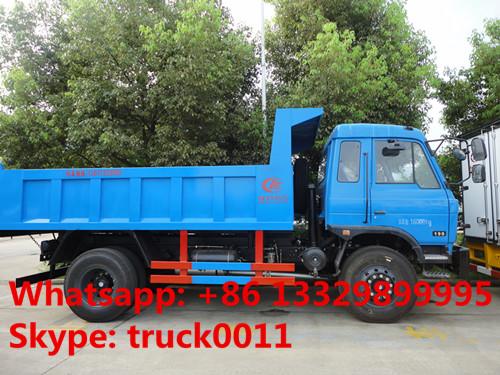

HOT SALE! dongfeng dump tipper truck for sale
Dump truck is also called as tipper truck or engineering truck, which consist of chassis, hydraulic lifting mechanism, cargo. It can be divided into light duty series, medium duty series, heavy duty series. And it’s widely used in engineering, road construction, sanitation, mines, lime kilns, stones factory, cement stash factory, phosphate fertilizer plant, etc. it can save manpower and reduce labor intensity.
Equipment: the truck is adopted with optimized design hydraulic system and lifting mechanism. It’s lifting is smooth and powerful. The tipper dumping mechanism is using push to enlarge the structure by the former, former top cylinder and middle double cylinder.
1. dump truck adopt with the original maturity chassis to refit.
2. the cargo is made of high quality carbon steel. The cargo thickness can be 4mm, 5mm, 6mm, 8mm, 10mm, 12mm, etc. it’s made in accordance with international standards of manufacturing.
3. the shape can be square bucket, U-shape bucket.
More information, please feel free to contact with Ms. Anita Deng.
Whatsapp/wechat: +86 13329899995
Skype: truck0011
QQ: 504873236
