Stainless Steel 304 Chocolate Enrober Conveyor Belt Matching Spocket
Stainless Steel 304 Chocolate Enrober Conveyor Belt Matching Gears
Product Brief Intruction:
•The largest proportion of open-mesh area available- up to 86%
| Flat Flex Belt --- Standard Specification | |||||||||||||
| Materials : Stainless Steel 304 / 316 etc. | |||||||||||||
| Pitch (mm) | 5 | 8 | 7 | 7 | 10 | 13 | 15 | 15 | 18 | 20 | 20 | 20 | 19.05 |
| Wire Dia.(mm) | 1.0 | 1.0 | 1.2 | 1.4 | 1.6 | 1.8 | 2.0 | 2.3 | 2.6 | 3.0 | 3.2 | 3.5 | 5.0 |
| Min Span (mm) | 30 | 30 | 30 | 30 | 30 | 40 | 40 | 50 | 60 | 100 | 130 | 150 | 300 |
| Edge Loop |
|
||||||||||||
| Overall Width | 30 - 4200mm | ||||||||||||
| Application |
Widely used in Food , Baking , Battering , Breading ,Cooling , Enrobing , Freezing , Frying , Washing , Drying etc.
|
||||||||||||
| Feature |
1. The sprocket drive ensures positive and stable running. 2. The rotation diameter is small, so that smooth products transfer is ensured. 3. Easy washing is ensured. 4. Because of large open area, high air permeability and dehydration capacity are ensured. |
||||||||||||
1. Choose the material , usual is stainless steel 304 or 316.
2. tell the specification: pitch, wire diameter, span width or span quantity .
3. tell the width and length

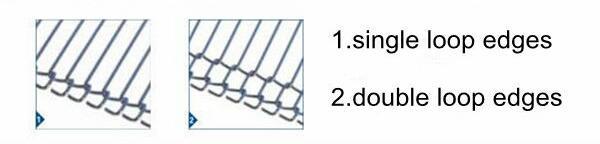

4. Choose the loop edge: single loop edge or double loop edge.

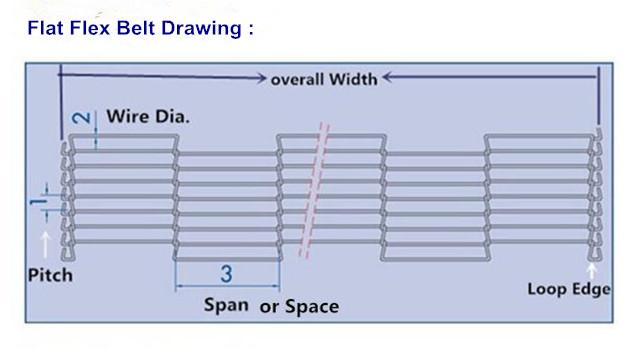

Note : Pitch is the distance from wire centre to wire centre ( see the following drawing)
Packing & Shipping : wooden case packing properly
Our Service
1. Reasonable Price , TOP Service , TOP quality !
2. Fast delivery !
3. Reply promptly !
4. Can OEM for your Brand
