Pakistan Sand Filled Hesco Bastion Barriers Blast Gabion Walls With Geotextile
pakistan military sand filled hesco barrier blast gabion walls with geotextile
MIL units enable the construction of rapid and efficient blast and ballistic resistant perimeters and can be used in a wide variety of configurations, from a simple boundary walls to city-like fortifications.
Each unit has been developed to provide a flexible solution for a wide range of protective and structural requirements. They are available in a variety of different sizes and delivery systems.
All MIL products are delivered palletized with joining pins and can be filled using minimal manpower and commonly available equipment.
Rapid Deployment
RAID has been designed to reduce the logistical problems surrounding deployment of large quantities of barriers into theatre, particularly for the construction of perimeter walls and forward operating and patrol bases.
This unique delivery system permits the loading of pre-connected lengths of MIL units directly into a specially modified ISO shipping container engineered to conform to all ISO stacking and transportation standards.
Corners can be easily formed, more units can be joined, and gaps in the wall can be created for entry control points.
Protective Structures
HESCO Accommodation Bunker (HAB) will house up to 8 personnel, providing blast and fragmentation protection, allowing personnel to live and work in safety, when deployed in remote and unstable environments; such as Forward Operating Bases, Company Outposts and remote industrial facilities.
Lightweight Bunker Roof
HESCO Lightweight Bunker Roof is specifically designed to provide collective protection, for living accommodation, field hospitals, safe houses or overhead cover for ammunition and fuel stores.
The roof can be built on almost any walls capable of taking the load that the roof will impose upon it.
Guard Post
The components of this set provide a small protective emplacement and delivered on a single pallet.
Ballistic Resistant Body Armor
Using next generation composite materials Hesco provide light and durable rapid response plates for law enforcement and military personnel entering active shooter situations.
Defence of Yoston Gabion barriers
Specification:
1. Material: Low carbon steel wire, Stainless steel wire
2. Wire Diameter: 3mm, 4mm, 5mm, 6mm etc.
3. Spring Wire: 3mm, 4mm, 5mm, 6mm etc.
4. Mesh Hole: 50mm x 50mm, 75mm x 75mm, 76.2mm x 76.2mm, 100mm x 100mm etc.
5. Geotextile: Heavy duty non-woven polypropylene
6. Finish:Hot-dipped galvanized, Electro galvanized, Galfan etc
Features:
- Easy to handle and install
- High tensile and anti-impact capability
- Long life, regular use
- Can be filled with sand, earth, cement, stone.
Applications include:
- Perimeter security
- Defensive barriers
- Equipment revetments
- Ammunition compounds
- Personnel bunkers
- Observation points
- Guard posts
- Ammunition and explosives stores
- Contraband search areas
- Highway checkpoints
- Border crossing checkpoints
- Protecting existing structures
- Traffic management
- Hostile vehicle mitigation

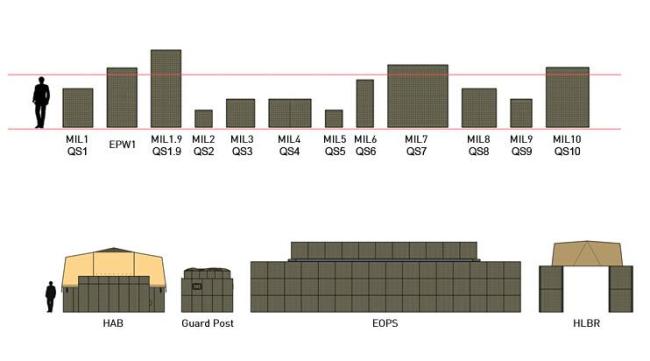

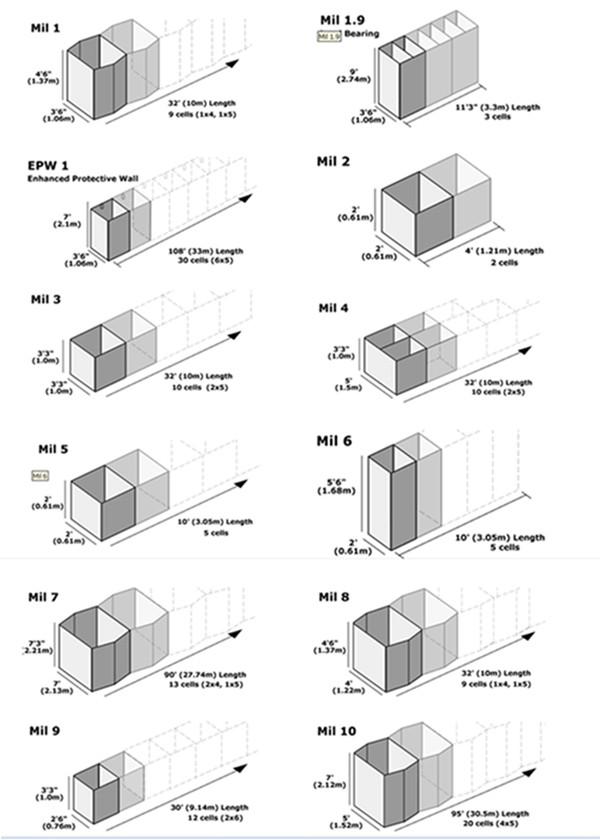

| Hesco Barriers | |||
| PRODUCT | HEIGHT | WIDTH | LENGTH |
| MIL1 | 54''(1.37M) | 42''(1.06M) | 32'9''(10M) |
| MIL2 | 24'' (0.61M) | 24''(0.61M) | 4'(1.22M) |
| MIL3 | 39''(1.00M) | 39''(1.00M) | 32'.9''(10M) |
| MIL4 | 39''(1.00M) | 60''(1.52M) | 32'.9''(10M) |
| MIL5 | 24''(0.61M) | 24''(0.61M) | 10'(3.05M) |
| MIL6 | 66''(1.68M) | 24''(0.61M) | 10'(3.05M) |
| MIL7 | 87''(2.21M) | 84''(2.13M) | 91'(27.74M) |
| MIL8 | 54''(1.37M) | 48''(1.22M) | 32'.9''(10M) |
| MIL9 | 39''(1.00M) | 30''(0.76M) | 30''(9.14M) |
| MIL10 | 87''(2.21M) | 60''(1.52M) | 100'(32.50M) |
| MIL11 | 48''(1.22M) | 12''(0.30M) | 4'(1.22M) |
| MIL12 | 84''(2.13M) | 42''(1.06M) | 108'(33M) |
