AISI Knitted Woven Wire Mesh Filter , 304 316 Stainless Steel Woven Wire Cloth

Name: AISI Knitted Woven Wire Mesh Filter , 304 316 Stainless Steel Woven Wire Clothu00a0
Brand: Anping Yoston Metal Wire Mesh Co.,Ltd.

Price Negotiable

Price: Negotiable

MOQ: 1 M2

Delivery Time: 5-8 days

Brand: Yoston

Product Description

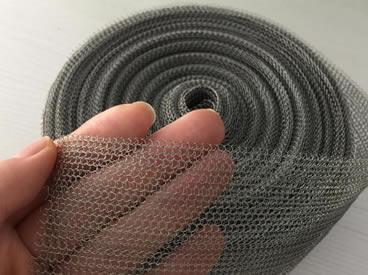

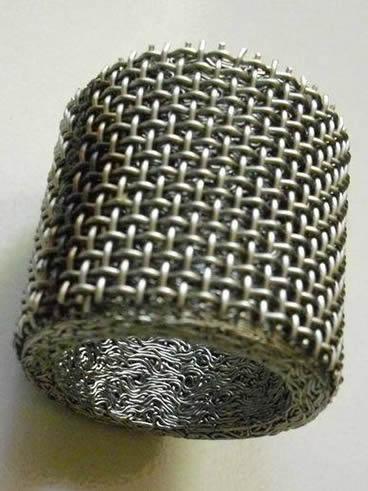

AISI 304 or 316 stainless steel knitted woven wire mesh filter

Knitted wire mesh filter is made of metal wires with flexible & strong interlocking loops. This special structure makes it distinguish from other metal filters like wire mesh or sintered mesh filters . First, it can move freely in the same plane without distorting the mesh. Second, it can stand up with thermal shock and vibrations without breaking up. The two advantages make it versatile in filtration, especially in depth filtration.

Three reasons of selection knitted mesh filter:

Flexible, strong and resilient characters coupled with heat, corrosion and shock resistance make it ideal for extreme applications.
Available in any shapes to suit the filtration uses.
Tortuous path construction creates larger dirt-holing without blockage.

Product specification:

Item: knitted wire mesh filter.
Material: stainless steel, galvanized & carbon steel.
Wire diameter: 0.002 to 0.03 inch.
Density: 48, 60, 76, 100 & 130 opening/inch.

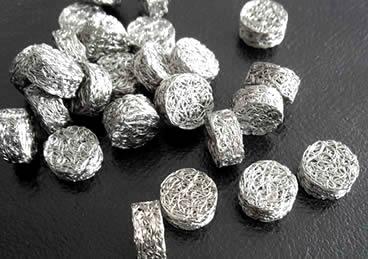

Structure: layered, compressed & spiral wound.

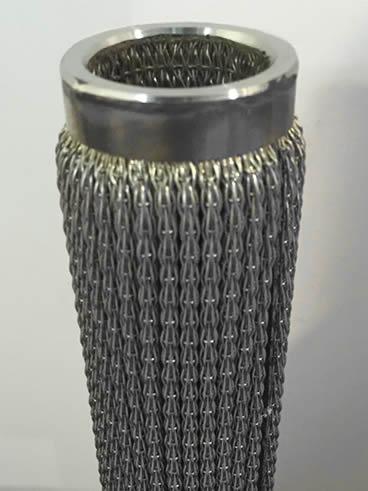

Shapes: rings, tapes, cylinders, discs & special shapes (on record).

Features & Benefits:

Interlocking wire loop structure.
Withstand high temperature & corrosions.
Withstand thermal shock and vibration without breaking up.
Excellent filtration capability.
Available in any special forms.
Ideal for depth filtration.
Economical cost.

Applications:

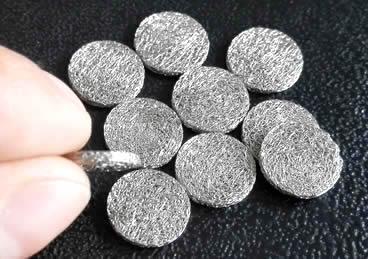

Airbag slag filters.

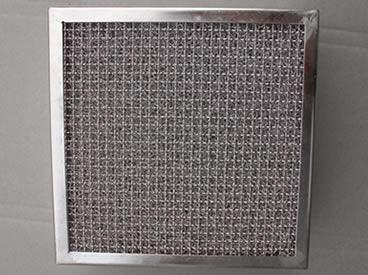

Kitchen range hood grease filter.
Intake filters for air compressors.
Air intake filters for automotive vehicles & engines.
Fuel filters.
Fuel injection filters.
Oil & air breather elements.
Oil bath separators.
Engine breathers.
Attenuation filters in pneumatic tools

Material:

stainless steel wire AISI201, 202,301,302,304,304 L, 321,316,316 L, galvanized wire, redrawing wire,brass wire .

Specification:

Wire diameter: 0.10 ~ 0.55mm flat wire or round wire. Common diameter is 0.20mm-0.25mm .

Hole size: from the (2 × 3 mm) to the (4 × 5mm) then (12 × 6mm)

Width: 40mm, 80mm, 100mm, 150mm, 200mm, 300mm, 400,500 mm, 600mm, etc.

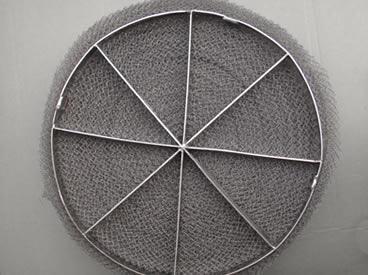

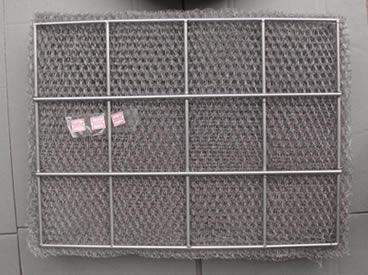

There are three types vapor liquid filter as follow:

Standard type 40-100 60-150 105-300 140-400 160-400 200-570mm

Efficient type 60-100 80-100 80-150 90-150 150-300 200-400 300-600mm

High-penetration type 20-100 30-150 70-400 100-600 170-560mm

Damped 33-30 38-40 20-40 26-40 30-40 30-50 48-50 30-60 30-80 50-120mm

Typical wire diameter(mm)	Range of natural width(mm)
0.2-0.35	30-100
Typical number of stitches per cm om lengeh	Tyoical number of stitches per cm across lasy flat
0.6	1.9

Coarse mesh
Typical wire diameter(mm)	Range of natural width (mm)
0.2-0.35	30-550
Typical number of stitches per cm om lengeh	Typical number of stitches per cm across lasy flat
1.6	0.74

Super-coarse mesh
Typical wire diameter (mm)	Range of natural width (mm)
0.2-0.35	30-550
Typical number of stitches per cm om lengeh	Typical number of stitches per cm across lasy flat
0.5	0.5
