Roll Top Welded Wire Mesh Fence Panels Galvanized / Powder Coated Surface
Roll Top Welded Wire Mesh Fence Panels with Galvanized or Powder Coated

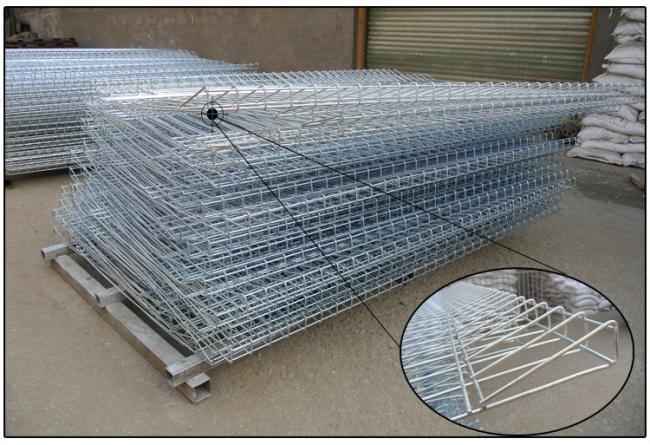

The panels have an attractive, unique and “user friendly” closed beam section located along the top and bottom edge of the panel. With no sharp or raw edges, Roll Top panels are suitable where safety is a consideration.
Roll Top Mesh is perfect for use in schools, parks/sports areas and company premises.
BRC Weldfence is Yoston’s proprietary fencing system. It is durable, easily installed and can be customised
to the preferences of our customers, making it an ideal choice for those looking to have a practical and
aesthetically pleasing fencing solution. BRC Weldfence has the following advantages:
Durable
The fence is manufactured from high tensile strength steel wires welded together by electrical fusion to
ensure accurate panel and mesh dimensions. The fencing system is able to retain its shape and strength
for many years as it is pre-welded. The panels and fencing posts are either hot-dip galvanised or polyester
powder coated, adding to the durability of the fence and require minimal maintenance.
Easy to Install
The fence is rolled at the top and bottom which makes each individual panel perfectly rigid and eliminates
the need for tensioning. The posts are also pre-drilled and ready for assembly on site
Customisable
Panels can be replaced individually and can be customised to various standard heights and different widths
per project equirements.
Specification:
| FB Series | ||
| Mesh Spacing (mm) | Vertical | Horizontal |
| 75 | 300 | |
| Wire Diameter (mm) | 6 | |
| Panel Size Height X Width (mm) | 900X2400 | |
| 1200X2400 | ||
| 1500X2400 | ||
| 1800X2400 | ||
| 2100X2400 | ||
| 2400X2400 | ||
| Post Specification (mm) | Ultragal Post 60 (Stainless Steel U-Clip & M6 Bolt&Nut) | |
| FA Series | ||
| Mesh Spacing (mm) | Vertical | Horizontal |
| 50 | 150 | |
| Wire Diameter (mm) | 5 | |
| Panel Size Height X Width (mm) | 900X2400 | |
| 1200X2400 | ||
| 1500X2400 | ||
| 1800X2400 | ||
| 2100X2400 | ||
| 2400X2400 | ||
| Post Specification (mm) | Ultragal Post 60 (Stainless Steel U-Clip & M6 Bolt&Nut) | |
Posts :

| Inground Post Height (mm) | From 1500 to 2100 |
|---|---|
| Flanged Post Heights (mm) | From 1000 to 1500 |
| Standard posts Specs (mm) | 50 x 50 x 1.6 |

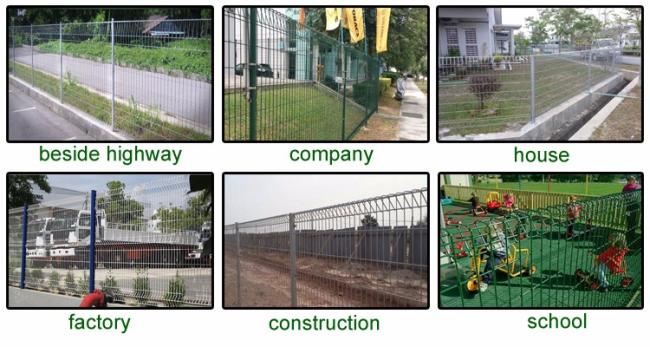

Application :
Transport Infrastructural
- Highway
- Isolation for Road
- Airport
Corporate / Residential Sector
- Residential
- Complex
- Showroom
- Terminal
Leisure Amusement Sector
- Parks
- Sidewalks
- Playground
- Theme Park
Others Uses
- Landscaping
- Police Quarters
- Garden
- Car Park
- Agriculture Farms
